4730-01-432-2529
Sediment Strainer
4730014322529 014322529 33445/59754-2,-12 3 MODEL ID 15F-150-150LB
A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer
May 2023
1
Marketplace 4730-01-432-2529
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-432-2529 5+ Documents (More...)
(Identification) 1/3 NSN 4730-01-432-2529 (Identification) 3/3 NSN 4730-01-432-2529 (Identification
BUY NE FedMall Updated Every Day 4730-01-432-2529 RQST NE Updated Every Day 4730-01-432-2529 RQST
remove solid particles Rigid Shaft Coupling 3010143858863143858863 14 33446/59754-3-13 ITEM 14 33445/59754-2,-12
33446/59754-3,-13 A pipe fitting primarily https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-432-2529
ITEM 14 33446/59754-3-13 ITEM 14 33445/59754-2,-12 33446/59754-3,-13 A pipe fitting primarily
Sediment Strainer 4730014322529 014322529 a day Upgrade your Account Upgrade 4730-01-432-2529Sediment
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-432-2529 Sediment Strainer 4730014322529
014322529 a day Upgrade your Account Upgrade 4730-01-432-2529Sediment Strainer4730014322529 014322529
Sediment Strainer 4730014322529 014322529 ,-12 A pipe fitting primarily designed for permanent
installation during ITEM 28 33445/59754-2,-12 ,-12 33446/59754-3,-13 A pipe fitting primarily ITEM 28
Restrictions 4730-01-432-2529
4730-01-432-2529 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-432-2529
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4730-01-432-2529
- Part Number
- Manufacturer
- Status
- 33445/59754-2,-12
- Manufacturer
- 09032 - Tate Andale, Llc (Active)
- Primary Buy
- Primary Buy
- 3 MODEL ID 15F-150-150LB
- 09032 - Tate Andale, Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4730-01-432-2529
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Distance From Bottom Of Body To Center Of Inlet [CSKY]
- 11.120 Inches Nominal
- End Item Identification [AGAV]
- Bob Hope Class T-Akr 300
- Body Height [ADAU]
- 27.380 Inches Nominal
- Body Length [ADAQ]
- 14.880 Inches Nominal
- Filtering Media Design [CRXW]
- Perforated 1St Filtering Media Response
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- First Discharge Nominal Inside Diameter [CSQB]
- 3.000 Inches
- First Intake Connection Type [CRXZ]
- Plain Face Flange Top Side

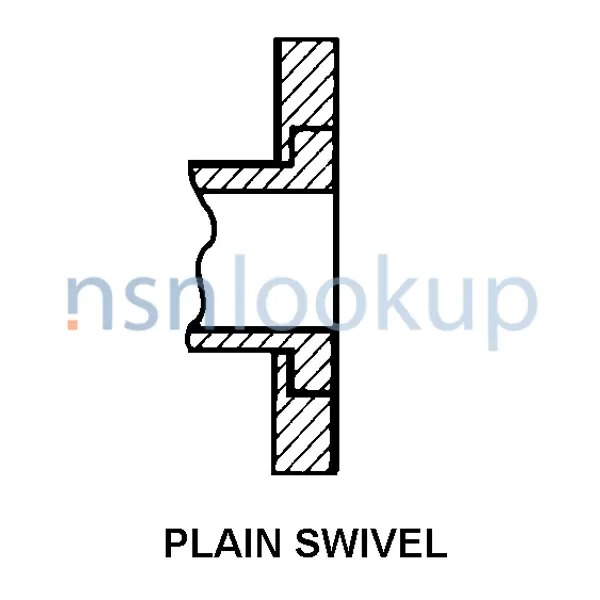

- First Intake Flange Face Style [CTBJ]
- Plain Swivel
- First Intake Flange Shape Style [CSTD]
- Round W/Unthreaded Bolt Holes
- Material [MATT]
- Steel Body
- Material [MATT]
- Steel Comp 316 Filtering Medium
- Mounting Type [AAXX]
- Inlet Connection Top Side And Outlet Connection Top Side
- Style Designator [STYL]
- Diverted Flow Basket Strainer W/Threaded Cover
- Second Intake Connection Relationship To First Intake Connection [CRZD]
- Identical
- Second Intake Nominal Inside Diameter [CSSG]
- 3.000 Inches
- Second Intake Flange Shape Style [CSXM]
- Round W/Unthreaded Bolt Holes
DLA Procurement Analysis 4730-01-432-2529
Management Data 4730-01-432-2529
Navy
- Cognizance:
- 3B
NATO Stock Numbers Related to 4730-01-432-2529
Freight Information 4730-01-432-2529
4730-01-432-2529 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052440. A Sub NMFC of X. It has a NMFC Description of STRAINERS PIPE LINE I/S BODY. 4730-01-432-2529 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30350 which rates the freight between FCL and LCL. 4730-01-432-2529 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-432-2529 is not classified as a special type of cargo when transported by water. 4730-01-432-2529 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-432-2529
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 4730-01-432-2529 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Y
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
