4730-01-422-7231

Tube Lateral

4730014227231 014227231 13229E7885 710-077NA20B08C08D08A 72091-1 13229E7885-6

A fitting having three connections with the branch connection fixed at various angles other than 90 degrees (1.5705 radians) to the run to permit tubes or tube fittings to be taken off laterally from the main line. It may have side inlet(s). View more Tube Lateral

Managed by United States

NSN Created on 6 Dec 1995

Data Last Changed
May 2023

NATO Update Count
2

NATO Data Quality

STYL Style D91 for 4730-01-422-7231 1/1 — NSN 4730-01-422-7231 (Identification) 1/1

Marketplace 4730-01-422-7231

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

720911 LATERAL,TUBE RQST NS

FedMall

Updated Every 15 Minutes

4730-01-422-7231 BUY NE FedMall

Updated Every Day

4730-01-422-7231 RQST NE

Updated Every Day

4730-01-422-7231 RQST

Updated Every Day

4730-01-422-7231 RQST NE

Related Documents 4730-01-422-7231 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-47/fsc-4730/us

4730-01-422-7231 Tube Lateral 4730014227231 014227231

13229E7885 710-077NA20B08C08D08A 72091-1 13229E7885-6 A fitting having three connections with the branch
BUY NE FedMall Updated Every Day 4730-01-422-7231 RQST NE Updated Every Day 4730-01-422-7231 RQST
Updated Every Day 4730-01-422-7231 RQST NE Related Documents 4730-01-422-7231 5+ Documents ( More...

https//www.nsnlookup.com
/fsg-47/fsc-4730/us

4730-01-422-7237 Tube Tee 4730014227237 014227237,13229E7885

Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-422-7237Tube Tee4730014227237 014227237 13229E7885
710-108NA24B24C20 13229E7885-2 72090-1-3 A fitting having three connections with the branch connection
Tube Lateral 4730014227231 014227231 710-077NA20B08C08D08A 72091-1 13229E7885-6 A fitting having

https//www.nsnlookup.com
/fsg-47/fsc-4730/us

4730-01-422-7234 Tube Tee 4730014227234 014227234,13229E7885

710-108NA20B08C20 72090-1-2 13229E7885-1 A fitting having three connections with the branch connection
Tube Lateral 4730014227231 014227231 710-077NA20B08C08D08A 72091-1 13229E7885-6 A fitting having
4730-01-422-7155 Fluid Pressure Line Multiple Connector (Active) Primary Buy RNCC 3 RNVC 2 DAC E 13229E7885

https//www.nsnlookup.com
/fsg-47/fsc-4730/us

4730-01-422-7156 Fluid Pressure Line Multiple Connector

710-232NA24B08C08D20E24A 72090-3-2 13229E7885-5 A device of varying shapes with two or more connections
Tube Lateral 4730014227231 014227231 710-077NA20B08C08D08A 72091-1 13229E7885-6 A fitting having
4730-01-422-7155 Fluid Pressure Line Multiple Connector (Active) Primary Buy RNCC 3 RNVC 2 DAC E 13229E7885

https//www.nsnlookup.com
/fsg-47/fsc-4730/us

4730-01-422-7155 Fluid Pressure Line Multiple Connector

your Account Upgrade 4730-01-422-7155Fluid Pressure Line Multiple Connector4730014227155 014227155 13229E7885
710-232NA20B08C08D08E14A 13229E7885-7 A device of varying shapes with two or more connections to accommodate
Tube Lateral 4730014227231 014227231 710-077NA20B08C08D08A 72091-1 13229E7885-6 A fitting having

Restrictions 4730-01-422-7231

4730-01-422-7231 is a Tube Lateral that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 4730-01-422-7231

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4730-01-422-7231

US Army (A920)
Effective Date:: 1 Apr 2005
Former MOE Rule:: A181; AMC 0 AMSC 0 IMC Z IMCACTY AJ

Approved Sources 4730-01-422-7231

Part Number
Manufacturer
Status
710-077NA20B08C08D08A: 06324 - Glenair, Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
72091-1: 99755 - Fmh Aerospace Corp. (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
13229E7885-6: 97403 - Cecom Lr Center (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
13229E7885: 97403 - Cecom Lr Center (Active); Related Drawing; RNCC 7 RNVC 1 DAC A

Datasheet 4730-01-422-7231

Characteristic
Specifications
FIIG: A080B0
Material [MATT]: Aluminum Alloy 6061 Overall
Material Document And Classification [MDCL]: Qq-A-225/8 Fed Spec Single Material Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Surface Treatment Document And Classification [STDC]: Qq-P-416,Class 3,Type Ii,Over Electroless Nickel In Accordance With Mil-C-26074,Class 1,Grade B Fed Spec Single Treatment Response Overall

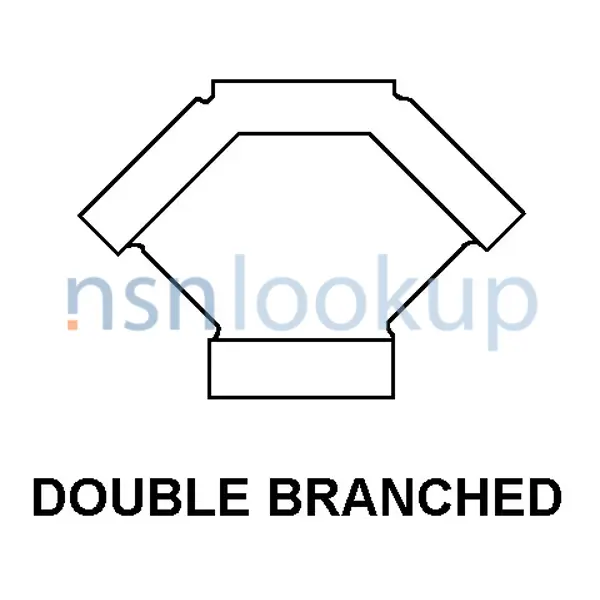

Style Designator [STYL]: Double Branched
