4730-01-382-6460
Tube Cap
4730013826460 013826460 AFP1326T16 P289T16 7D0289T16
A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. View more Tube Cap
November 2023
3
Marketplace 4730-01-382-6460
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-382-6460 1+ Documents (More...)
AFP1326T16 CAP,TUBE 26 EA NS Request Quotation Subscribe to View Vendor Details... 7D0289T16 CAP,TUBE
Every Day 4730-01-382-6460 RQST NE Updated Every Day 4730-01-382-6460 RQST Updated Every Day 4730-01
Restrictions 4730-01-382-6460
4730-01-382-6460 is a Tube Cap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-382-6460
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-382-6460
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
Approved Sources 4730-01-382-6460
- Part Number
- Manufacturer
- Status
- AFP1326T16
- Manufacturer
- 30974 - Aerofit, Llc (Active)
- Primary Buy
- Primary Buy
- P289T16
- 66774 - Precision Aircraft Machining (Active)
- Secondary Buy
- Secondary Buy
- 7D0289T16
- 88277 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4730-01-382-6460
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0

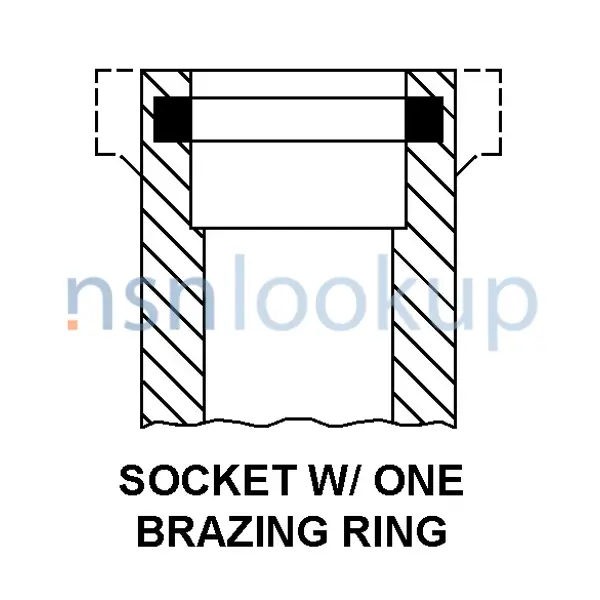

- Connection Style [AHNC]
- Socket W/ One Brazing Ring
- Material [MATT]
- Titanium Overall
- Maximum Operating Pressure [CQGM]
- 4000.0 Pounds Per Square Inch
- Nominal Thread Size [CQJX]
- 1.312 Inches Internal
- Material Document And Classification [MDCL]
- Ams4928 Assn Std Single Material Response Overall
- Seat Nominal Radius [CWBZ]
- 0.062 Inches
- Thread Series Designator [THSD]
- Unj Internal
- Tube Outside Diameter For Which Designed [ACSV]
- 1.000 Inches Nominal
- Style Designator [STYL]
- Cap, Tube, Flareless
- Surface Treatment [SFTT]
- Phosphate Overall
- Thread Direction [AAJF]
- Right-Hand Internal
- Thread Class [AAJD]
- 3B Internal
- Thread Quantity Per Inch [CMLP]
- 12 Internal
Weapon Systems (WSDC) 4730-01-382-6460
DLA Procurement Analysis 4730-01-382-6460
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-382-6460
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 4730-01-382-6460
Freight Information 4730-01-382-6460
4730-01-382-6460 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 136500. A Sub NMFC of A. It has a NMFC Description of METAL NOI/METAL ALLOYS NOI SUB1. 4730-01-382-6460 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 68455 which rates the freight between FCL and LCL. 4730-01-382-6460 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-382-6460 is not classified as a special type of cargo when transported by water. 4730-01-382-6460 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-382-6460
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- A-A-1051, Paperboard Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 4730-01-382-6460 4 Records
Contracting Technical Data File (CTDF) 4730-01-382-6460 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
