4730-01-364-6029

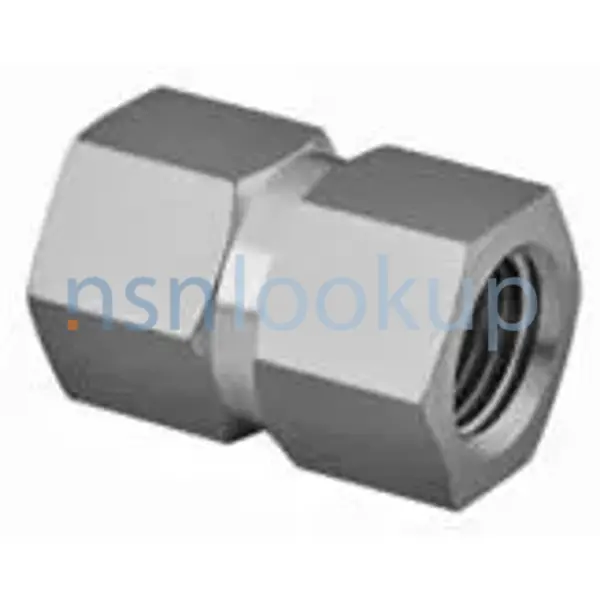

Pipe To Tube Straight Adapter
4730013646029 013646029 SS-100-7-2 10474044
An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line. View more Pipe To Tube Straight Adapter
November 2023
10
Marketplace 4730-01-364-6029
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-364-6029 5+ Documents (More...)
RQST NE Updated Every Day 4730-01-364-6029 RQST Updated Every Day 4730-01-364-6029 RQST NE Related Documents
4730-01-364-6029 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-364-6029
Restrictions 4730-01-364-6029
4730-01-364-6029 is a Pipe To Tube Straight Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-01-364-6029
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-364-6029
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Nov 1993
Approved Sources 4730-01-364-6029
- Part Number
- Manufacturer
- Status
- SS-100-7-2
- Manufacturer
- 3T9T9 - Swagelok Co (Active)
- Primary Buy
- Primary Buy
- 10474044
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 4730-01-364-6029
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Steel Corrosion Resisting Overall
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Connection Type [AWLS]
- Threaded External Pipe 2Nd End
- Connection Style [AHNC]
- Flareless (Tube) 1St End
- Connection Style [AHNC]
- Plain (Pipe) 2Nd End
- Seat Angle [CQRB]
- 20.0 Degrees 1St End
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.0625 Inches 1St End
- Thread Series Designator [THSD]
- Un 1St End
- Thread Series Designator [THSD]
- Npt 2Nd End
- Nominal Thread Size [CQJX]
- 0.312 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.125 Inches 2Nd End
- Thread Quantity Per Inch [CMLP]
- 20 1St End
- Thread Class [AAJD]
- 3A 1St End
- Nominal Overall Length [CWFR]
- 0.960 Inches
Similar Supply Items to 4730-01-364-6029
Freight Information 4730-01-364-6029
4730-01-364-6029 has freight characteristics managed by Germany.. 4730-01-364-6029 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
