Fluid Passage Bolt
4730013437305 013437305 122-4323770 PIECE 36 4323770
A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE. View more Fluid Passage Bolt
May 2023
2
Marketplace 4730-01-343-7305
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-343-7305 5+ Documents (More...)
PIECE 40 122-4323770 PIECE 39 OR 40 2210-27 PIECE 39 OR 40 122-4323770 A boltlike /us 4730-01-343-7305
PIECE 40 122-4323770 PIECE 39 OR 40 2210-27 PIECE 39 OR 40 122-4323770 A boltlike /us 4730-01-343-7305
/us 4730-01-343-7305 Fluid Passage Bolt 4730013437305 013437305 Primary Buy RNCC 3 RNVC 2 DAC A 122-
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-343-7305 Fluid Passage Bolt 4730013437305 013437305
/us 4730-01-343-7305 Fluid Passage Bolt 4730013437305 013437305 Primary Buy RNCC 3 RNVC 2 DAC A 122-
4323770 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-343-7305 Fluid Passage Bolt 4730013437305
/us 4730-01-343-7305 Fluid Passage Bolt 4730013437305 013437305 Primary Buy RNCC 3 RNVC 2 DAC A 122-
4323770 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-343-7305 Fluid Passage Bolt 4730013437305
/fsg-31/fsc-3120/us
/www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-341-6863 Sleeve Bushing 3120013416863013416863 122-4323770
Primary Buy RNCC 3 RNVC 2 DAC A 122-4323770 https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-341
Restrictions 4730-01-343-7305
4730-01-343-7305 is a Fluid Passage Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-343-7305
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-343-7305
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4730-01-343-7305
- Part Number
- Manufacturer
- Status
- 122-4323770 PIECE 36
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 4323770
- 80064 - Naval Ship Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-343-7305
- Characteristic
- Specifications
- FIIG
- Specifications
- A121A0
- Material [MATT]
- Steel
- Body Style [AAQL]
- Shoulder
- Concentric Hole Depth [AAWX]
- 7.000 Inches Nominal
- Concentric Hole Diameter [AAXC]
- 0.188 Inches Nominal
- Overall Length [ABHP]
- 13.500 Inches Nominal
- First Diameter From Wrenching Feature [BBKL]
- 3.000 Inches Nominal
- Second Diameter From Wrenching Feature [BBKM]
- 2.500 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of First Diameter [BBKR]
- 11.250 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Second Diameter [BBKS]
- 11.438 Inches Nominal
- First Radial Fluid Hole Diameter [BBKY]
- 0.250 Inches Nominal
- Distance From First Radial Hole Center To End Of Bolt [BBLB]
- 2.500 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To Bolt End [BBLD]
- 13.000 Inches Nominal
- Wrenching Feature Height [BBLF]
- 0.500 Inches Nominal
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Style Designator [ACKN]
- Plain
- First End Thread Series Designator [CQMM]
- Unc
- First End Nominal Thread Size [CQYM]
- 2.500 Inches
- First End Thread Class [ACLK]
- 2A
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Length [ATKZ]
- 1.562 Inches Nominal
- Wrenching Feature Style [BBDF]
- Square

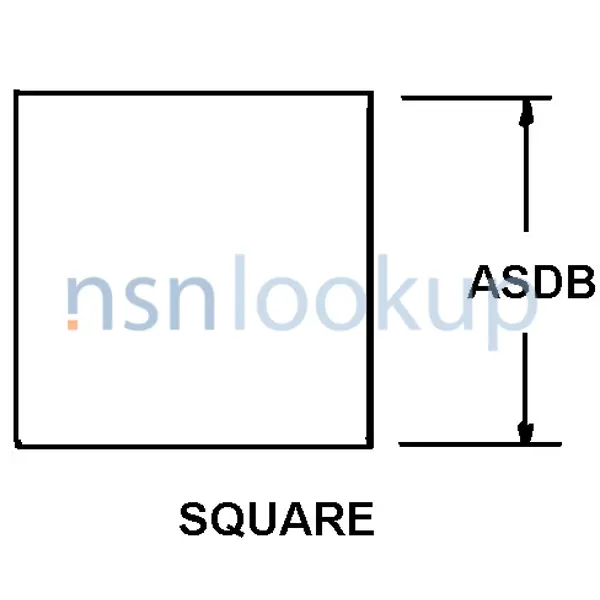

- Width Across Flats [ASDB]
