4730-01-320-3756
Pipe Flange
4730013203756 013203756 ASME B16.5 ANSI-B16.5/ASTM-A105, 1/2 NPS, 60-1/2 M18180/1-052A01A MIL-F-18180 21530
An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange
May 2023
5
Marketplace 4730-01-320-3756
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-320-3756 5+ Documents (More...)
MIL-F-18180 FLANGE,PIPE 9 EA NS Request Quotation ASME-B16.5 FLANGE,PIPE 3 EA NS Request Quotation Subscribe
BUY NE FedMall Updated Every Day 4730-01-320-3756 RQST NE Updated Every Day 4730-01-320-3756 RQST
FLANGE,PIPE 3 EA NS Request ASME-B16.5 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-320-3756
Pipe Flange 4730013203756 013203756 ANSI-B16.5/ASTM-A105, 1/2 NPS, 60-1/2 M18180/1-052A01A MIL-F-18180
ASME-B16.5 FLANGE,PIPE 3 EA NS Request Quotation FedMall Updated Every 15 Minutes 4730-01-332-0209 BUY
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-320-3756 Pipe Flange 4730013203756 013203756 ANSI-B16.5
/3 FLANGE, PIPE 8 EA NS Request Quotation ASME-B16.5 //www.nsnlookup.com /fsg-47/fsc-4730/us 4730
FLANGE,PIPE,BLIND 9 EA NS Request Quotation ASME-B16.5 FLANGE,PIPE,BLIND 3 EA NS Request -18180
Request Quotation ASME-B16.5 FLANGE,PIPE 3 EA NS Request Quotation MIL-F-18180/3 FLANGE, https https/
/3 FLANGE, PIPE 8 EA NS Request Quotation ASME-B16.5 FLANGE,PIPE 3 EA NS Request Quotation MIL-F
Restrictions 4730-01-320-3756
4730-01-320-3756 is a Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-320-3756
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-320-3756
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4730-01-320-3756
- Part Number
- Manufacturer
- Status
- ASME B16.5
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- ANSI-B16.5/ASTM-A105, 1/2 NPS,
- 80204 - American National Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 60-1/2
- 34646 - Ati Ladish Llc (Active)
- Secondary Buy
- Secondary Buy
- M18180/1-052A01A
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-F-18180
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 21530
- 40475 - Crane Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-01-320-3756
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- Material [MATT]
- Steel
- Material Document And Classification [MDCL]
- Astm-A105 Assn Std Single Material Response
- Style Designator [STYL]
- Round, One Bolt Hole Circle
- Bolt Circle Diameter [ABKG]
- 2.625 Inches Nominal
- Flange Diameter [ABKK]
- 3.750 Inches Nominal
- Bolt Hole Diameter [AHNX]
- 0.625 Inches Nominal
- Bolt Hole Quantity [AECS]
- 4

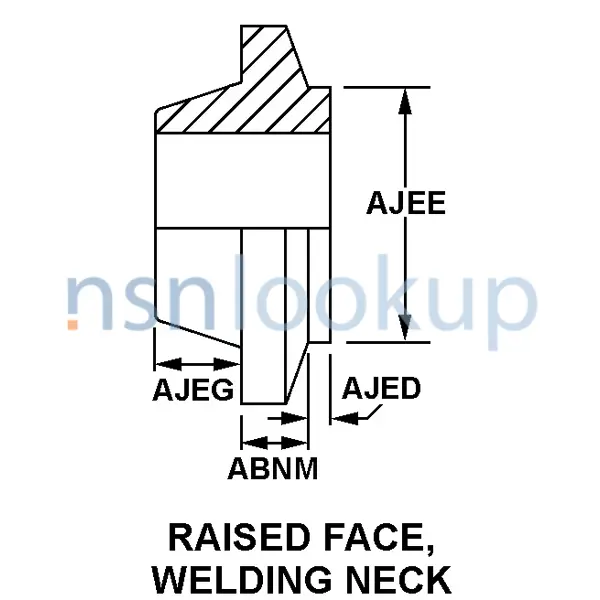

- Flange Section Style [AJEM]
- Raised Face, Welding Neck
- Thickness [ABNM]
- 0.563 Inches Nominal
- Raised Face Height [AJED]
- 0.250 Inches Nominal
- Raised Face Diameter [AJEE]
- 1.375 Inches Nominal
- Neck Height [AJEG]
- 2.063 Inches Nominal
- Nominal Pipe Size For Which Designed [ACSU]
- 0.500 Inches
- Maximum Operating Pressure And Media For Which Designed [CQCJ]
- 600.0 Pounds Per Square Inch Any Acceptable
- Face Seating Surface Condition [AKWE]
- Machined
- Specification/Standard Data [ZZZK]
- 80204-B16.5 Professional/Industrial Association Standard
- Nondefinitive Spec/Std Data [ZZZT]
- 18 Table
