4730-01-306-0268
Pipe Flange
4730013060268 013060268 2621-228-01 PIECE 193G 704-4685281 F3 2621-228-01
An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange
November 2023
8
Marketplace 4730-01-306-0268
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-306-0268 5+ Documents (More...)
4730-01-306-0268 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-306-0268
RQST NE Updated Every Day 4730-01-306-0268 RQST Updated Every Day 4730-01-306-0268 RQST NE Related Documents
Pipe Flange 4730013060268 013060268 your Account Upgrade 4730-01-306-0268Pipe Flange4730013060268
013060268 2621-228-01 PIECE 193G 704-4685281 /fsg-47/fsc-4730/us 4730-01-306-0268 Pipe Flange 4730013060268013060268
Pipe Flange 4730013060268 013060268 Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-306
-0268Pipe Flange4730013060268 013060268 2621-228-01 PIECE 193G 704-4685281 F3 2621-228-01 An item solid
PIECE 69 2621-228-01 An item solid or split into halves, having a threaded or unthreaded hole for
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-306-0268 Pipe Flange 4730013060268 013060268
Pipe Flange 4730013060268 013060268 your Account Upgrade 4730-01-306-0268Pipe Flange4730013060268
013060268 2621-228-01 PIECE 193G 704-4685281 01-286-6486 Socket Wrench Crowfoot Attachment 012866486
Restrictions 4730-01-306-0268
4730-01-306-0268 is a Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-306-0268
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-306-0268
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJB
- United Kingdom (ZK01)
- Effective Date:
- 1 Aug 1994
Approved Sources 4730-01-306-0268
- Part Number
- Manufacturer
- Status
- 2621-228-01 PIECE 193G
- Manufacturer
- 96169 - Electric Boat Corporation (Active)
- Primary Buy
- Primary Buy
- 704-4685281 F3
- 80064 - Naval Ship Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 2621-228-01
- 96169 - Electric Boat Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-306-0268
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- Bolt Circle Diameter [ABKG]
- 5.938 Inches Nominal
- Bolt Hole Diameter [AHNX]
- 0.688 Inches Nominal
- Bolt Hole Quantity [AECS]
- 8
- Face Seating Surface Condition [AKWE]
- Ground
- Flange Diameter [ABKK]
- 7.500 Inches Nominal

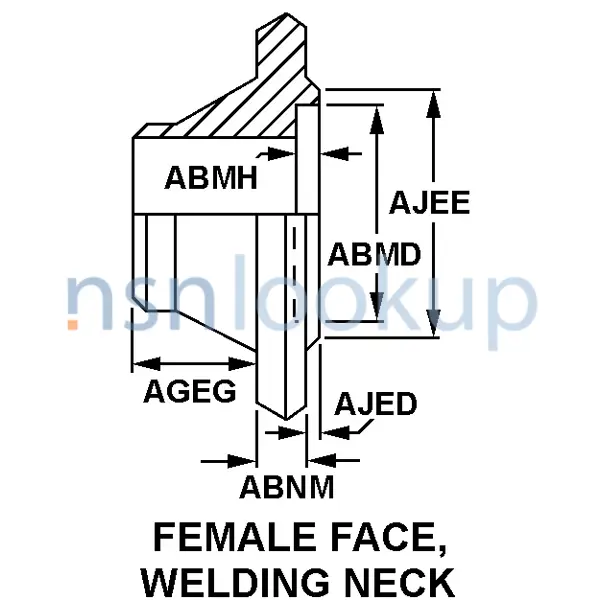

- Flange Section Style [AJEM]
