4730-01-305-0095

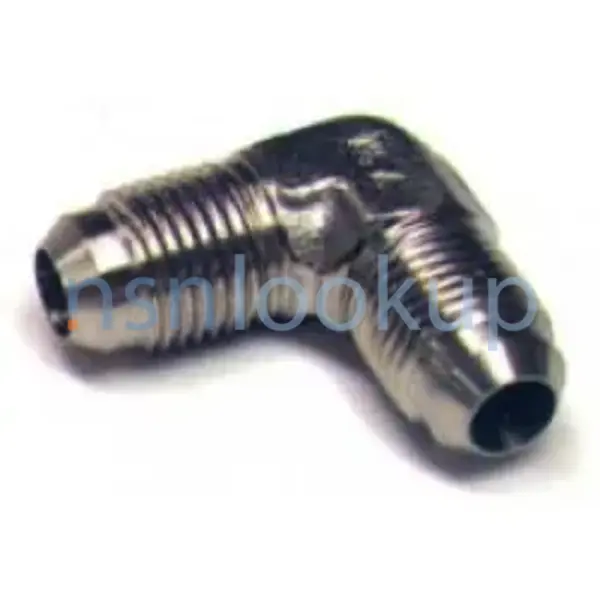

Tube Elbow
4730013050095 013050095 AN821-33J AN821-32C
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Tube Elbow
May 2023
5
Marketplace 4730-01-305-0095
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-305-0095 5+ Documents (More...)
United States (US) 4. 4730-01-305-0095 Marketplace Restrictions Approved Sources Datasheet Management
ELBOW,TUBE RQST NS Request Quotation Updated Every Day 4730-01-305-0095 RQST NE Updated Every Day
Restrictions 4730-01-305-0095
4730-01-305-0095 is a Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-305-0095
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-305-0095
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- Poland (WP01)
- Effective Date:
- 1 Aug 2007
Approved Sources 4730-01-305-0095
- Part Number
- Manufacturer
- Status
- AN821-33J
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
- AN821-32C
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-01-305-0095
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material Document And Classification [MDCL]
- Qq-S-763 Fed Spec Single Material Response Overall
- Material [MATT]
- Steel Comp 304 Overall
- Maximum Operating Pressure [CQGM]
- 1500.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Fluid Single Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 2.000 Inches All Ends
- Nominal Thread Size [CQJX]
- 2.500 Inches All Ends
- Leg Length [AHSJ]
- 3.062 Inches Nominal All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Thread Series Designator [THSD]
- Unj All Ends
- Surface Treatment Document And Classification [STDC]
- Qq-P-35,Ty1 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A All Ends
- Thread Quantity Per Inch [CMLP]
- 12 All Ends
Weapon Systems (WSDC) 4730-01-305-0095
DLA Procurement Analysis 4730-01-305-0095
Management Data 4730-01-305-0095
Similar Supply Items to 4730-01-305-0095
Freight Information 4730-01-305-0095
4730-01-305-0095 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-305-0095 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-305-0095 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-305-0095 is not classified as a special type of cargo when transported by water. 4730-01-305-0095 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-305-0095
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4730-01-305-0095 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
