4730-01-278-1001

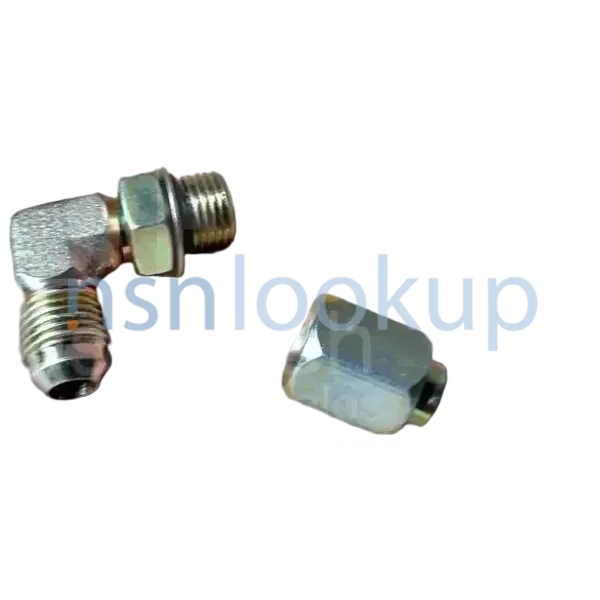

Tube To Boss Elbow
4730012781001 012781001 MIL-DTL-18866 6C5BX-S-ZGC MS51527B6Z MS51527A6Z MS51527-B6Z 6-6 070220CA J514
A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
October 2025
21
Marketplace 4730-01-278-1001
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4730-01-278-1001 5+ Documents (More...)
MS51527A6Z ELBOW,TUBE TO BOSS 76 PG NS Request Quotation J514 ELBOW,TUBE TO BOSS 640 PG NS Request Quotation
MS51527A6Z ELBOW,TUBE TO BOSS 3 PG NS Request Quotation Updated Every Day 6C5BX-S-ZGC RQST NE Updated
$1 a day Upgrade your Account Upgrade 4730-01-331-3508Tube To Boss Elbow4730013313508 013313508 MIL-DTL-18866
Tube To Boss Elbow 4730012781001 012781001 $1 a day Upgrade your Account Upgrade 4730-01-278-1001Tube
$1 a day Upgrade your Account Upgrade 4730-01-331-3508Tube To Boss Elbow4730013313508 013313508 MIL-DTL-18866
Tube To Boss Elbow 4730012781001 012781001 6C5BX-S-ZGC MS51527B6Z MS51527A6Z MS51527-B6Z 6-6 070220CA
Tube To Boss Elbow 4730012781001 012781001 $1 a day Upgrade your Account Upgrade 4730-01-278-1001Tube
To Boss Elbow4730012781001 012781001 MIL-DTL-18866 6C5BX-S-ZGC MS51527B6Z MS51527A6Z MS51527-B6Z 6-6
J514.
forms an angle of EA NS Request Quotation MS51527B4S ELBOW,TUBE TO BOSS 75 EA NS Request Quotation J514
Restrictions 4730-01-278-1001
4730-01-278-1001 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-278-1001
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-278-1001
- US Army (A920)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9CD
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
- Spain (YB01)
- Effective Date:
- 1 Sep 2006
- Australia (ZA01)
- Effective Date:
- 1 Mar 1997
- Canada (ZC01)
- Effective Date:
- 1 Aug 1996
- New Zealand (ZE01)
- Effective Date:
- 1 Mar 2003
- Netherlands (ZN01)
- Effective Date:
- 1 Jan 2004
Approved Sources 4730-01-278-1001
- Part Number
- Manufacturer
- Status
- MS51527A6Z
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-18866
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 6C5BX-S-ZGC
- 30780 - Parker-Hannifin Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS51527-B6Z
- 56529 - Hydraulics International, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 6C5BX-S-ZGC
- 98441 - Parker Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6-6 070220CA
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- J514
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS51527B6Z
- 96906 - Military Standards (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-01-278-1001
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- External Seat For Gasket Seal (Boss) 2Nd End
- Connection Style [AHNC]
- Flared (Tube) 1St End
- Connection Type [AWLS]
- Threaded External Boss 2Nd End
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Furnished Items And Quantity [TMQY]
- 1 Locknut And 1 Preformed Packing And 1 Tube Coupling Nut W/Sleeve
- End Item Identification [AGAV]
- Rg-31 Mrap
- Flow Angle [CRFY]
- 90.0 Degrees
- Material [MATT]
- Steel Overall
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.375 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.562 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- 10A Figure
- Leg Length [AHSJ]
- 1.060 Inches Nominal 1St End
- Leg Length [AHSJ]
- 1.250 Inches Nominal 2Nd End
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Thread Series Designator [THSD]
- Unf All Ends
- Specification/Standard Data [ZZZK]
- 96906-Ms51527 Government Standard And 81343-J514 Government Standard
- Surface Treatment [SFTT]
- Zinc Overall
- Thread Class [AAJD]
- 2A All Ends
