4730-01-256-0310
Sediment Strainer
4730012560310 012560310 ST051012BF11B 1 ST051012BFM005 ST051012BF11B ST051012BFMMM
A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer
June 2023
5
Marketplace 4730-01-256-0310
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-256-0310 2+ Documents (More...)
(Identification) 1/3 NSN 4730-01-256-0310 (Identification) 2/3 NSN 4730-01-256-0310 (Identification
4730-01-256-0310 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-256-0310
012289288 United States (US) 4. 4730-01-228-9288 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-256-0310
Sediment Strainer 4730012560310 012560310 Day 4730-01-256-0310 RQST NE Related Documents https/
Restrictions 4730-01-256-0310
4730-01-256-0310 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-256-0310
- US Coast Guard (C911)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- C001
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Canada (ZC01)
- Effective Date:
- 1 Oct 2005
Approved Sources 4730-01-256-0310
- Part Number
- Manufacturer
- Status
- ST051012BFM005
- Manufacturer
- 73124 - Haywardindl. Products Inc. (Active)
- Primary Buy
- Primary Buy
- ST051012BF11B
- 73124 - Haywardindl. Products Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- ST051012BFMMM
- 73124 - Haywardindl. Products Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- ST051012BF11B 1
- 73124 - Haywardindl. Products Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-01-256-0310
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Distance From Bottom Of Body To Center Of Inlet [CSKY]
- 6.812 Inches Nominal
- Body Height [ADAU]
- 15.375 Inches Nominal
- Body Length [ADAQ]
- 15.000 Inches Nominal
- Body Width [ADAT]
- 9.375 Inches Nominal
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- First Intake Connection Type [CRXZ]
- Plain Face Flange Line
- First Intake Flange Face Style [CTBJ]
- Plain
- First Intake Flange Shape Style [CSTD]
- Round W/Unthreaded Bolt Holes
- Material [MATT]
- Copper Alloy Filtering Medium
- Material [MATT]
- Copper Alloy Body
- Mounting Type [AAXX]
- Inlet Connection Line And Outlet Connection Line

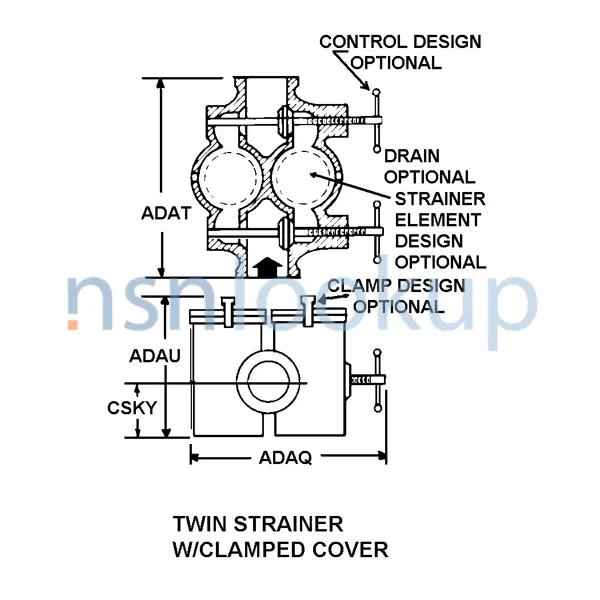

- Style Designator [STYL]
- Twin Strainer W/Clamped Cover
Weapon Systems (WSDC) 4730-01-256-0310
DLA Procurement Analysis 4730-01-256-0310
Management Data 4730-01-256-0310
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-01-256-0310
Freight Information 4730-01-256-0310
4730-01-256-0310 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052440. A Sub NMFC of X. It has a NMFC Description of STRAINERS PIPE LINE I/S BODY. 4730-01-256-0310 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30350 which rates the freight between FCL and LCL. 4730-01-256-0310 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-256-0310 is not classified as a special type of cargo when transported by water. 4730-01-256-0310 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-256-0310
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- ASTM-D5118, Type CF, Class Domestic, Double Wall, Corrugated Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4730-01-256-0310 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
