4730-01-248-4006
Sediment Strainer
4730012484006 012484006 SY-CS-150-1F-2-1/2IPS
A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer
November 2023
2
Marketplace 4730-01-248-4006
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-248-4006 1+ Documents (More...)
BUY NE FedMall Updated Every Day 4730-01-248-4006 RQST NE Updated Every Day 4730-01-248-4006 RQST
Updated Every Day 4730-01-248-4006 RQST NE Related Documents 4730-01-248-4006 1+ Documents ( More...
Restrictions 4730-01-248-4006
IUID Required
4730-01-248-4006 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-248-4006
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-248-4006
- US Navy (N2H4)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
Approved Sources 4730-01-248-4006
- Part Number
- Manufacturer
- Status
- SY-CS-150-1F-2-1/2IPS
- Manufacturer
- 76372 - Mechanical Marine Div Hayward Mfg (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-01-248-4006
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Distance From Bottom Of Body To Center Of Inlet [CSKY]
- 6.750 Inches Nominal
- Body Length [ADAQ]
- 12.000 Inches Nominal
- Filtering Media Design [CRXW]
- Perforated Single Filtering Media Response
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- First Intake Connection Type [CRXZ]
- Raised Face Flange Top Side

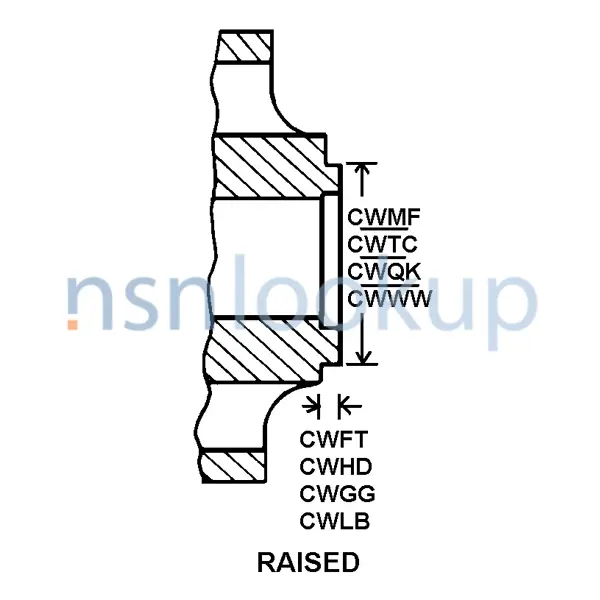

- First Intake Flange Face Style [CTBJ]
- Raised
- First Intake Flange Outside Diameter [CSRH]
- 7.000 Inches Nominal
- First Intake Flange Raised Face Height [CWFT]
- 0.062 Inches Nominal
- First Intake Flange Raised Face Diameter [CWMF]
- 4.125 Inches Nominal
- First Intake Flange Thickness [CTHJ]
- 0.625 Inches Nominal
- First Intake Flange Shape Style [CSTD]
- Round W/Unthreaded Bolt Holes
- Material [MATT]
- Steel Body
- Material [MATT]
- Steel Corrosion Resisting Screening
- Maximum Operating Pressure [CQGM]
- 150.0 Pounds Per Square Inch
- Style Designator [STYL]
- Y Strainer W/Bolted Cover
- Material Document And Classification [MDCL]
- Astm A216 Gr Wcb Assn Std Single Material Response Body
- Material Document And Classification [MDCL]
- Astm A580 Assn Std Single Material Response Screening
- Perforation Diameter [AKSV]
- 0.125 Inches Nominal
Weapon Systems (WSDC) 4730-01-248-4006
DLA Procurement Analysis 4730-01-248-4006
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-248-4006
Navy
- Cognizance:
- 3B
- Special Material ID:
- M1
- MSC Unique Components
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 4730-01-248-4006
Freight Information 4730-01-248-4006
4730-01-248-4006 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-248-4006 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4730-01-248-4006 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-248-4006 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-248-4006 is not classified as a special type of cargo when transported by water. 4730-01-248-4006 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-248-4006
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Heated General Purpose – Heated 40 F and above
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 14.0" H x 14.0" W x 8.0" L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 14.0" H x 14.0" W x 8.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Preserve with Normal Operating Lubricant
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- Not Applicable
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- Open for inspection or use only
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4730-01-248-4006 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
