4730-01-243-1432
Pipe Flange
4730012431432 012431432 B16.5 64-1
An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange
May 2023
2
Marketplace 4730-01-243-1432
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-243-1432 5+ Documents (More...)
www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-243-1432 Pipe Flange 4730012431432 012431432,B16.5 /fsg
/fsc-4730/us 4730-01-243-1432 Pipe Flange 4730012431432012431432,B16.5 ASA-B16.5 ASME B16.5 https//www.nsnlookup.com
012431432,B16.5 /fsg-47/fsc-4730/us 4730-01-242-6383 Pipe Flange 4730012426383012426383,B16.5 ASME-B16.5
ASME-B16.5 Request Quotation ASA-B16.5 ASME B16.5 ASME-B16.5 Quotation ASA-B16.5 Quotation ASA-B16.5
64-1 1/4 M18180/6 055A01 An item solid or split into halves, having a threaded or unthreaded hole for
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-243-1432 Pipe Flange 4730012431432 012431432,B16.5
ASME B16.5 ASME-B16.5 Quotation ASA-B16.5 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730 FLANGE,PIPE
/fsg-47/fsc-4730/us 4730-01-243-1432 Pipe Flange 4730012431432 012431432,B16.5 ASA-B16.5 ASME B16.5
/fsg-47/fsc-4730/us 4730-01-243-1432 Pipe Flange 4730012431432 012431432,B16.5 ASA-B16.5 ASME B16.5
ASME-B16.5 Quotation ASA-B16.5 Quotation ASA-B16.5 /fsg-47/fsc-4730/us 4730-01- ASME B16.5 ASME-B16.5
Restrictions 4730-01-243-1432
4730-01-243-1432 is a Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-243-1432
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-243-1432
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4730-01-243-1432
- Part Number
- Manufacturer
- Status
- 64-1
- Manufacturer
- 34646 - Ati Ladish Llc (Active)
- Primary Buy
- Primary Buy
- B16.5
- 80204 - American National Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 4730-01-243-1432
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- Material [MATT]
- Steel
- Material Document And Classification [MDCL]
- Astm A105,Gr 1 Assn Std Single Material Response
- Style Designator [STYL]
- Round, One Bolt Hole Circle
- Bolt Circle Diameter [ABKG]
- 3.500 Inches Nominal
- Flange Diameter [ABKK]
- 4.875 Inches Nominal
- Bolt Hole Diameter [AHNX]
- 0.625 Inches Nominal
- Bolt Hole Quantity [AECS]
- 4

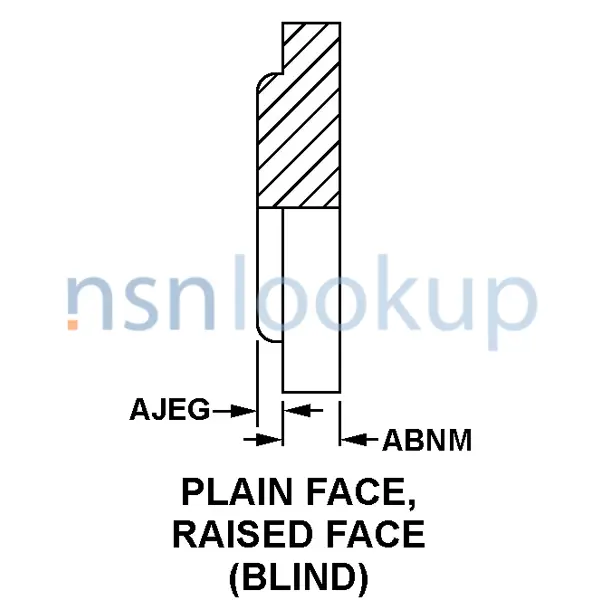

- Flange Section Style [AJEM]
- Plain Face, Raised Face (Blind)
- Thickness [ABNM]
- 0.688 Inches Nominal
- Neck Height [AJEG]
- 0.250 Inches Nominal
- Nominal Pipe Size For Which Designed [ACSU]
- 1.000 Inches
- Maximum Operating Pressure And Media For Which Designed [CQCJ]
- 600.0 Pounds Per Square Inch Any Acceptable
- Face Seating Surface Condition [AKWE]
- Machined
