4730-01-228-0348
Lubrication Fitting
4730012280348 012280348 1646-B1 1646B1 1646-B 4730PL0890905 4730PL1683106
A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items. View more Lubrication Fitting
Managed by United States
NSN Created on 13 Mar 1986
Data Last Changed
November 2023
November 2023
NATO Update Count
23
23
NATO Data Quality
Marketplace 4730-01-228-0348
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-228-0348 4+ Documents (More...)
1646-B1 1646B1 1646-B 4730PL0890905 4730PL1683106 A specifically designed item pressed or threaded into

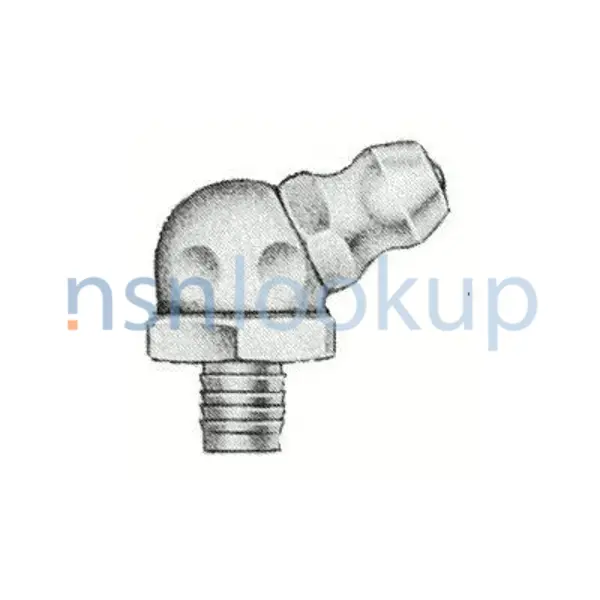

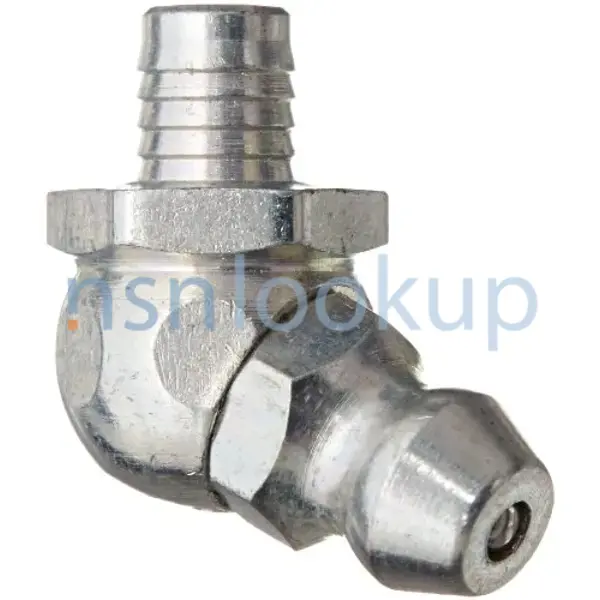

Photo 1/3 4730-01-228-0348 Photo 2/3 NSN 4730-01-228-0348 (Identification) 3/3 - - - 1.
200 EA NS Request Quotation Updated Every Day 4730-01-228-0348 RQST NE Updated Every Day 4730-01-228
Photo 1/3 4730-01-228-0348 Photo 2/3 NSN 4730-01-228-0348 (Identification) 3/3 - - - 1.
200 EA NS Request Quotation Updated Every Day 4730-01-228-0348 RQST NE Updated Every Day 4730-01-228
$1 a day Upgrade your Account Upgrade 4730-01-670-1630Lubrication Fitting4730016701630 016701630 1646-B1
1646-B A specifically designed item pressed or threaded into a lubrication passage, for the purpose
Lubrication Fitting 4730012280348 012280348 $1 a day Upgrade your Account Upgrade 4730-01-228-0348Lubrication
1646-B A specifically designed item pressed or threaded into a lubrication passage, for the purpose
Lubrication Fitting 4730012280348 012280348 $1 a day Upgrade your Account Upgrade 4730-01-228-0348Lubrication
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 1646B1
Details... 1646 FITTING,LUBRICATION 99 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1
FITTING,LUBRICATION 2 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1 FITTING,LUBRICATION
Details... 1646 FITTING,LUBRICATION 99 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1
FITTING,LUBRICATION 2 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1 FITTING,LUBRICATION
4730-00-289-2928 FITTING,LUBRICATION 100 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1
. 74B450608-101 FITTING,LUBRICATION 8 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1
Details... 1646 FITTING,LUBRICATION 99 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1
. 74B450608-101 FITTING,LUBRICATION 8 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1
Details... 1646 FITTING,LUBRICATION 99 EA NS Request Quotation Subscribe to View Vendor Details... 1646B1
Restrictions 4730-01-228-0348
4730-01-228-0348 is a Lubrication Fitting that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-228-0348
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-228-0348
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Supplementary Receivers:
- KE
- Poland (WP01)
- Effective Date:
- 1 May 2007
- Brazil (YA01)
- Effective Date:
- 1 Sep 2008
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Mar 1999
- Australia (ZA01)
- Effective Date:
- 1 Dec 2016
- New Zealand (ZE01)
- Effective Date:
- 1 Sep 2003
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 2002
- Denmark (ZS01)
- Effective Date:
- 1 Mar 2007
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 4730-01-228-0348
- Part Number
- Manufacturer
- Status
- 1646-B1
- Manufacturer
- 0FKM1 - Alemite, Llc (Active)
- Primary Buy
- Primary Buy
- 1646B1
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- 1646-B
- 57733 - Stewart-Warner Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730PL0890905
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 4730PL1683106
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference

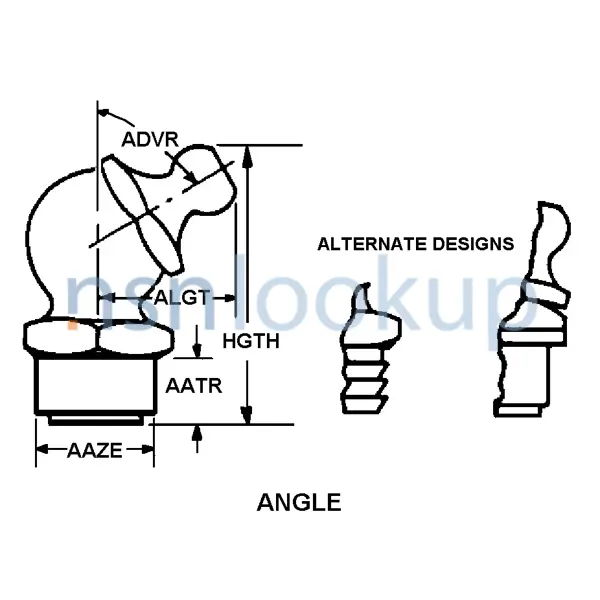

Datasheet 4730-01-228-0348
- Characteristic
- Specifications
- FIIG
- Specifications
- A14800
- Material [MATT]
- Steel Overall
- Style Designator [STYL]
- Angle
- Shank Length [AATR]
- 0.218 Inches Nominal
- Shank Diameter [AAZE]
- 0.188 Inches Nominal
- Angle In Deg [ADVR]
- 67.5
- Assembly Clearance Radius [ALGT]
- 0.500 Inches Nominal
- Height [HGTH]
- 0.703 Inches Nominal
- Width Across Flats [ASDB]
- 0.375 Inches Nominal
- Special Features [FEAT]
- Serrated Drive Shank
- Criticality Code Justification [CRTL]
- Feat
Weapon Systems (WSDC) 4730-01-228-0348
DLA Procurement Analysis 4730-01-228-0348
- Last Stock Position:
- 45249 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-228-0348
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-01-228-0348
Freight Information 4730-01-228-0348
4730-01-228-0348 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-228-0348 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-228-0348 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-228-0348 is not classified as a special type of cargo when transported by water. 4730-01-228-0348 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-228-0348
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 4730-01-228-0348 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M318V3214
- 26 Apr 2018
- Subscribe
- 11630
- Subscribe
- Subscribe
- Subscribe
- SPE7M318V0395
- 07 Nov 2017
- Subscribe
- 2302
- Subscribe
- Subscribe
- Subscribe
- SPE7MC17V5519
- 21 Mar 2017
- Subscribe
- 2870
- Subscribe
- Subscribe
- Subscribe
- SPE7MC15V7880
- 11 Aug 2015
- Subscribe
- 1747
- Subscribe
- Subscribe
- Subscribe
- SPE7M014VF384
- 06 Aug 2014
- Subscribe
- 1243
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4730-01-228-0348 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
