4730-01-224-7307

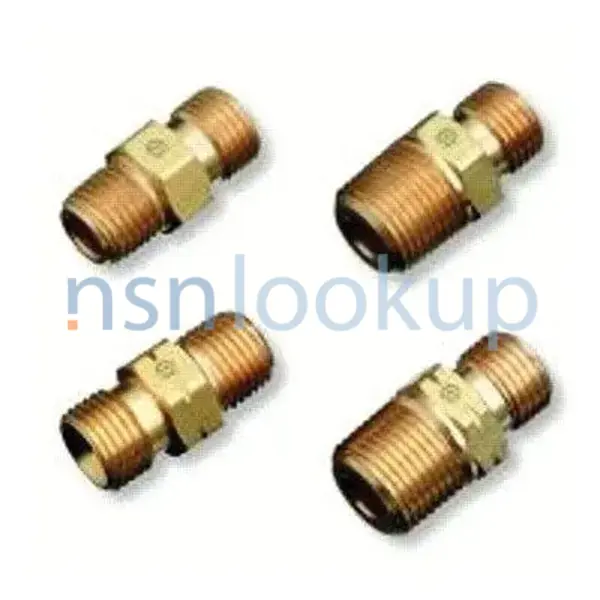

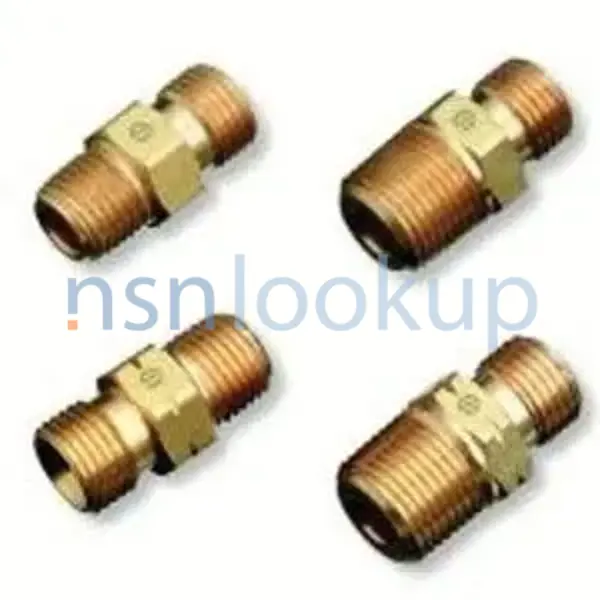

Pipe To Gas Fitting Straight Adapter
4730012247307 012247307 136 P-108447 B8
An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external and/or internal recognized National Gas Outlet Threads. It is designed to join a pipe or pipe fitting to a gas fitting. View more Pipe To Gas Fitting Straight Adapter
May 2023
4
Marketplace 4730-01-224-7307
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4730-01-224-7307 5+ Documents (More...)
136 ADAPTER,STRAIGHT,PIPE TO GAS FITTING 20 EA NS Request Quotation B8 ADAPTER,STRAIGHT,PIPE TO GAS
136 ADAPTER,STRAIGHT,PIPE TO GAS FITTING 69 EA NS Request Quotation B8 ADAPTER,STRAIGHT,PIPE TO GAS
Pipe To Gas Fitting Straight Adapter,136 -9655Metal Bar9530012719655 012719655BEARIUM B8 https/
JavaScript in your web browser . 5935-12-129-8962Electrical Connector Shell5935121298962 121298962C20335-B8
B8 1.75 0INDIABEARIUM B8 1 3/4 IN DIABEARIUM B8 1.750 IN Ornamental Lace 8315981061982981061982 Metal
Pipe To Gas Fitting Straight Adapter,136 Ornamental Lace 8315981061982981061982 9530-01-271-9655
1.75 0INDIABEARIUM B8 1 3/4 IN DIABEARIUM B8 1.750 IN DIABEARIUM B8 A metallic product ) https//www.nsnlookup.com
1.75 0INDIA BEARIUM B8 1 3/4 IN DIABEARIUM B8 1.750 IN 271-9655 Metal Bar 9530012719655012719655 BEARIUM
Request a Quotation from participating marketplace vendors Request Updated Every Day 5310-12-136-6068
RQST NE Updated Every Day 5310-12-136-6068 RQST Updated Every Day 5310-12-136-6068 RQST NE Related Documents
Restrictions 4730-01-224-7307
4730-01-224-7307 is a Pipe To Gas Fitting Straight Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-224-7307
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-224-7307
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4730-01-224-7307
- Part Number
- Manufacturer
- Status
- 136
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
- P-108447
- 37676 - Illinois Tool Works, Inc. (Active)
- Secondary Buy
- Secondary Buy
- B8
- 52929 - Superior Products, Llc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4730-01-224-7307
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Copper Alloy Overall
- Media For Which Designed [MEDA]
- Oxygen, Gaseous Single Response
- Maximum Operating Pressure [CQGM]
- 200.0 Pounds Per Square Inch Single Response
- Connection Type [AWLS]
- Threaded External Pipe 1St End
- Connection Type [AWLS]
- Threaded External Gas Fitting 2Nd End
- Connection Style [AHNC]
- Plain (Pipe) 1St End
- Connection Style [AHNC]
- Gasket Seal (Gas Fitting) 2Nd End
- Thread Series Designator [THSD]
- Npt 1St End
- Thread Series Designator [THSD]
- Ngo 2Nd End
- Nominal Thread Size [CQJX]
- 0.125 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.562 Inches 2Nd End
- Nominal Overall Length [CWFR]
- 1.180 Inches
- Special Features [FEAT]
- For B Size Rh
Weapon Systems (WSDC) 4730-01-224-7307
DLA Procurement Analysis 4730-01-224-7307
Management Data 4730-01-224-7307
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-224-7307
Freight Information 4730-01-224-7307
4730-01-224-7307 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-01-224-7307 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-01-224-7307 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-224-7307 is not classified as a special type of cargo when transported by water. 4730-01-224-7307 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-224-7307
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x -- W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
