4730-01-207-3679
Fluid Passage Bolt
4730012073679 012073679 75A430684-2001 75A430684
A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE. View more Fluid Passage Bolt
November 2023
9
Marketplace 4730-01-207-3679
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-207-3679 1+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 75A430684
Every Day 4730-01-207-3679 RQST Updated Every Day 4730-01-207-3679 RQST NE Related Documents 4730-01
Restrictions 4730-01-207-3679
4730-01-207-3679 is a Fluid Passage Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-207-3679
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-207-3679
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Italy (ZR01)
- Effective Date:
- 1 Jun 1997
Approved Sources 4730-01-207-3679
- Part Number
- Manufacturer
- Status
- 75A430684-2001
- Manufacturer
- 76301 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- 75A430684-2001
- 93366 - Ge Aviation Systems Llc (Active)
- Secondary Buy
- Secondary Buy
- 75A430684-2001
- K0654 - Safran Landing Systems Uk Ltd (Active)
- Secondary Buy
- Secondary Buy
- 75A430684
- 76301 - The Boeing Company (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-207-3679
- Characteristic
- Specifications
- FIIG
- Specifications
- A121A0

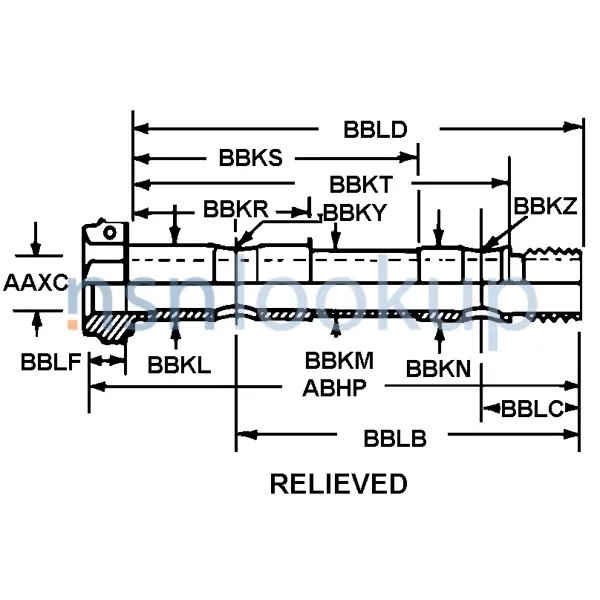

- Distance From First Radial Hole Center To End Of Bolt [BBLB]
- 1.580 Inches Nominal
- Body Style [AAQL]
- Relieved
- Concentric Hole Diameter [AAXC]
- 0.187 Inches Nominal
- First Diameter From Wrenching Feature [BBKL]
- 0.673 Inches Nominal
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Nominal Thread Size [CQYM]
- 0.438 Inches
- First End Style Designator [ACKN]
- Plain
- First End Thread Class [ACLK]
- 3A
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Length [ATKZ]
- 0.403 Inches Nominal
- First End Thread Series Designator [CQMM]
- Unjf
- First Radial Fluid Hole Diameter [BBKY]
- 0.187 Inches Nominal
- Material [MATT]
- Steel Comp 17-4Ph
- Length From Bearing Surface Of Wrenching Feature To Bolt End [BBLD]
- 2.280 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of First Diameter [BBKR]
- 0.281 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Second Diameter [BBKS]
- 0.430 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Third Diameter [BBKT]
- 0.575 Inches Nominal
- Material Document And Classification [MDCL]
- Ams 5643 Assn Std Single Material Response
- Second Diameter From Wrenching Feature [BBKM]
- 0.642 Inches Nominal
- Second End Connection Type [ACLS]
- Threaded Internal Boss
- Second End Style Designator [ACLT]

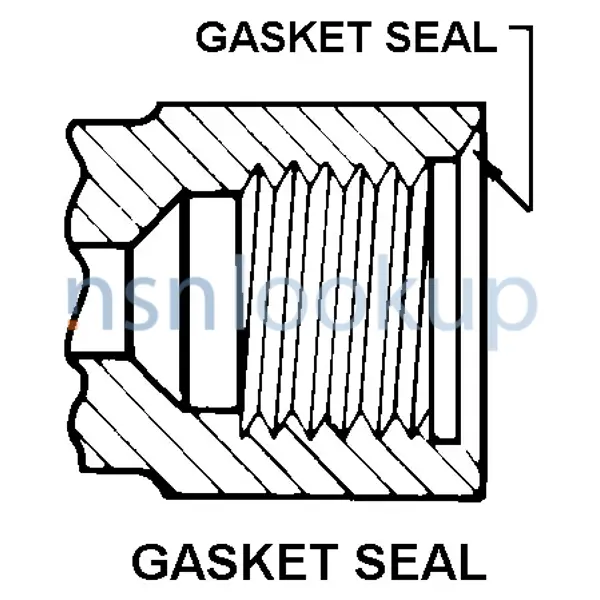

- Gasket Seal
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Thread Class [ACMR]
- 3B
- Second End Thread Length [ATLF]
- 0.400 Inches Nominal
- Second End Thread Series Designator [CRPF]
- Unjf
- Second End Nominal Thread Size [CRNB]
- 0.438 Inches
- Overall Length [ABHP]
- 2.760 Inches Nominal
- Width Across Flats [ASDB]
- 0.940 Inches Minimum And 0.952 Inches Maximum
- Wrenching Feature Height [BBLF]
- 0.300 Inches Nominal
- Wrenching Feature Style [BBDF]
- Hexagon
- Surface Treatment [SFTT]
- Passivate
- Third Diameter From Wrenching Feature [BBKN]
- 0.673 Inches Nominal
