4730-01-207-3660

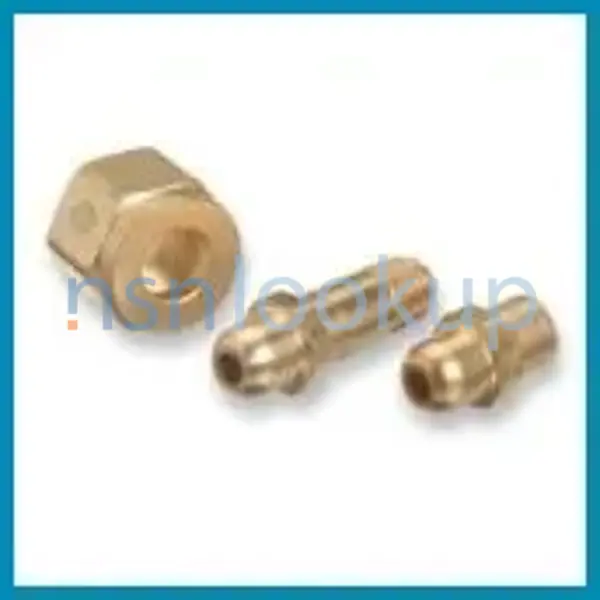

Pipe Nipple
4730012073660 012073660 6768200 663
A straight one-piece metallic pipe 12 inches(304 MM)or less in length having external threads of the same size on both ends. It may have a center section which is externally shaped to accommodate a wrench. For pipe having internal threads 12 inches(304 MM)or less in length see coupling,pipe. For pipe in excess of 12 inches(304 MM)see pipe as modified. View more Pipe Nipple
November 2023
7
Marketplace 4730-01-207-3660
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-207-3660 4+ Documents (More...)
... 663 NIPPLE,PIPE 248 EA NS Request Quotation Subscribe to View Vendor Details... 663 NIPPLE,PIPE 8
. 663 NIPPLE,PIPE 10 EA NS Request Quotation Updated Every Day 4730-01-207-3660 RQST NE Updated Every
Restrictions 4730-01-207-3660
4730-01-207-3660 is a Pipe Nipple that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-207-3660
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-207-3660
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- HDJN
Approved Sources 4730-01-207-3660
- Part Number
- Manufacturer
- Status
- 663
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
- 6768200
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-01-207-3660
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Copper Alloy Overall
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Style Designator [STYL]
- Plain W/ Center Wrenching Facility
- Connection Type [AWLS]
- Threaded External Pipe All Ends
- Connection Style [AHNC]
- Plain (Pipe) All Ends
- Thread Series Designator [THSD]
- Npt All Ends
- Nominal Thread Size [CQJX]
- 0.250 Inches All Ends
- Nominal Overall Length [CWFR]
- 2.500 Inches
Weapon Systems (WSDC) 4730-01-207-3660
DLA Procurement Analysis 4730-01-207-3660
- Last Stock Position:
- 8 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-207-3660
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-207-3660
Freight Information 4730-01-207-3660
4730-01-207-3660 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-01-207-3660 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-01-207-3660 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-207-3660 is not classified as a special type of cargo when transported by water. 4730-01-207-3660 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-207-3660
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x -- W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4730-01-207-3660 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
