4730-01-200-8710
Pipe Flange
4730012008710 012008710 023-11056-000 367-86150 PIECE 12 023-06886 023-11056 367-86150E
An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange
November 2023
3
Marketplace 4730-01-200-8710
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-200-8710 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4730-01-200-8710 RQST NE Updated Every Day 4730-01-200-8710 RQST
Updated Every Day 4730-01-200-8710 RQST NE Related Documents 4730-01-200-8710 5+ Documents ( More...
Pipe Flange 4730012008710 012008710 Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-200
-8710Pipe Flange4730012008710 012008710 023-11056 -000 367-86150 PIECE 12 023-06886 023-11056 367-86150E
Pipe Flange 4730012008710 012008710 Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-200
-8710Pipe Flange4730012008710 012008710 023-11056 -000 367-86150 PIECE 12 023-06886 023-11056 367-86150E
Pipe Flange 4730012008710 012008710 Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-200
-8710Pipe Flange4730012008710 012008710 023-11056 -000 367-86150 PIECE 12 023-06886 023-11056 367-86150E
Pipe Flange 4730012008710 012008710 Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-200
-8710Pipe Flange4730012008710 012008710 023-11056 -000 367-86150 PIECE 12 023-06886 023-11056 367-86150E
Restrictions 4730-01-200-8710
4730-01-200-8710 is a Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-200-8710
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-200-8710
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4730-01-200-8710
- Part Number
- Manufacturer
- Status
- 023-11056-000
- Manufacturer
- 66935 - Johnson Controls Navy Systems, Llc (Active)
- Primary Buy
- Primary Buy
- 367-86150 PIECE 12
- 66935 - Johnson Controls Navy Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- 023-06886
- 66935 - Johnson Controls Navy Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 023-11056
- 66935 - Johnson Controls Navy Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 367-86150E
- 66935 - Johnson Controls Navy Systems, Llc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-200-8710
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- Material [MATT]
- Steel
- Style Designator [STYL]
- Rectangular, With Bolt Holes
- Center To Center Distance Between Bolt Holes Along Width [ADUY]
- 2.625 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Length [ADUZ]
- 2.625 Inches Nominal
- Outside Edge To Bolt Hole Center Distance Along Width [ADVD]
- 0.627 Inches Nominal
- Outside Edge To Bolt Hole Center Distance Along Length [ADVE]
- 0.627 Inches Nominal
- Flange Length [AFQN]
- 4.000 Inches Nominal
- Flange Width [AGFF]
- 4.000 Inches Nominal
- Bolt Hole Diameter [AHNX]
- 0.625 Inches Nominal
- Bolt Hole Quantity [AECS]
- 4

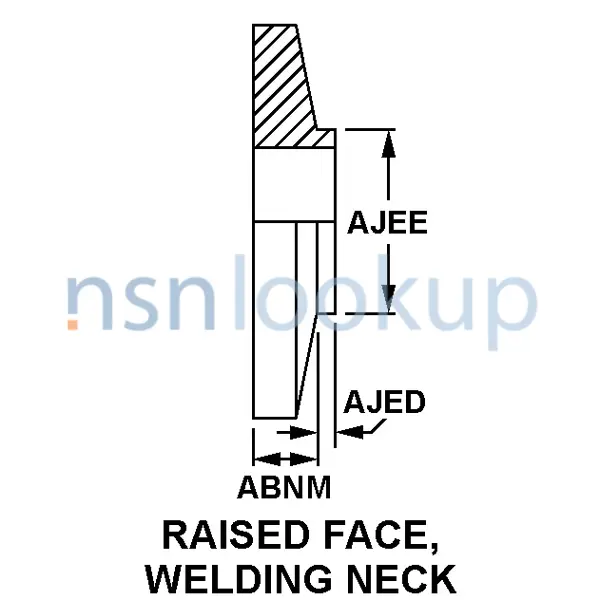

- Flange Section Style [AJEM]
- Raised Face, Welding Neck
- Thickness [ABNM]
- 1.125 Inches Nominal
- Raised Face Height [AJED]
- 0.062 Inches Nominal
- Raised Face Diameter [AJEE]
- 1.625 Inches Nominal
- Nominal Pipe Size For Which Designed [ACSU]
- 1.500 Inches
- Face Seating Surface Condition [AKWE]
- Ground
