4730-01-193-2004
Blind Pipe Flange
4730011932004 011932004 26109 14835N PIECE 4 3/4 IN 14835N
An item used for covering or closing the end of a flanged pipe fitting. The face may be drilled for connecting bolts or studs. Excludes FLANGE, PIPE. View more Blind Pipe Flange
May 2023
2
Marketplace 4730-01-193-2004
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-193-2004 5+ Documents (More...)
RQST NE Updated Every Day 4730-01-193-2004 RQST Updated Every RQST NE Updated Every Day 4730-01
1IN SW SCH 80 .033CRES 14835N A strainer having https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01
Blind Pipe Flange 4730011932004 011932004 4730011932004011932004 a day Upgrade your Account Upgrade
1IN STEE 14835N 1IN STEE 14835N 1IN SW SCH 80 .033CRES 14835N A strainer having inlet and outlet connections
1IN STEE 14835N 1IN SW 1IN SW SCH 80 .033CRES 14835N A strainer having inlet and outlet connections
1IN STEE 14835N 1IN SW SCH 80 .033CRES 14835N A strainer having https//www.nsnlookup.com /fsg-47/fsc
Blind Pipe Flange 4730011932004 011932004 PIECE 4 3/4 IN 14835N An item used for covering or closing
1IN 1IN SW SCH 80 .033CRES 14835N 1IN STEE 14835N 1IN SW SCH 80 .033CRES 14835N A strainer https https
1IN SW SCH 80 .033CRES 14835N A strainer having inlet and outlet connections and designed 1IN STEE 14835N
Restrictions 4730-01-193-2004
4730-01-193-2004 is a Blind Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-193-2004
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-193-2004
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4730-01-193-2004
- Part Number
- Manufacturer
- Status
- 26109
- Manufacturer
- 35795 - Leslie Controls, Inc. (Active)
- Primary Buy
- Primary Buy
- 14835N PIECE 4 3/4 IN
- 35795 - Leslie Controls, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 14835N
- 35795 - Leslie Controls, Inc. (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-193-2004
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- Material [MATT]
- Steel
- Material Document And Classification [MDCL]
- Mil-S-15083,Gr B Mil Spec Single Material Response
- Style Designator [STYL]
- Oval, One Bolt Hole Circle
- Bolt Circle Diameter [ABKG]
- 2.625 Inches Nominal
- Flange Length [AFQN]
- 3.875 Inches Nominal
- Flange Width [AGFF]
- 2.000 Inches Nominal
- Bolt Hole Diameter [AHNX]
- 0.562 Inches Nominal
- Flange End Radius [AJDX]
- 0.625 Inches Nominal
- Bolt Hole Quantity [AECS]
- 2

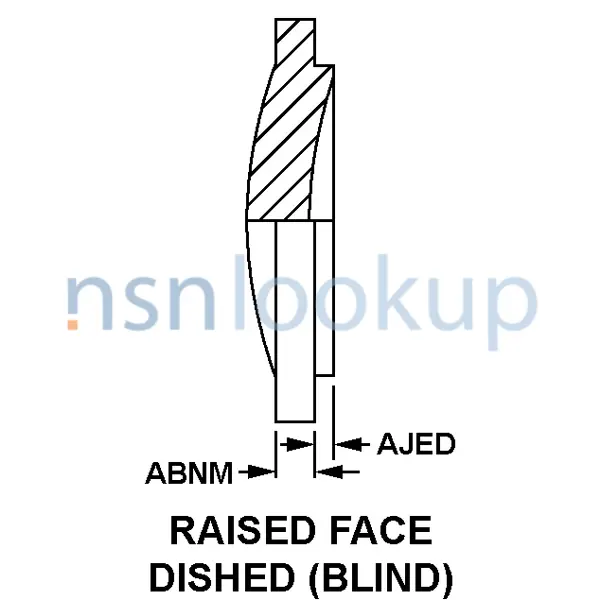

- Flange Section Style [AJEM]
- Raised Face Dished (Blind)
- Thickness [ABNM]
- 0.531 Inches Nominal
- Raised Face Height [AJED]
- 0.344 Inches Nominal
- Face Seating Surface Condition [AKWE]
- Ground
- Special Features [FEAT]
- Blow Off Flange For Strainer
