4730-01-167-7237

Flexible Tube Coupling Assembly

4730011677237 011677237 W701-80DE 12J71-80AE W701-DE

A multipiece gasket sealed item specifically designed for joining plain end ferruled tubing or beaded end tubing that will accommodate angular misalignment, axial motion and permits expansion and contraction of the tubing. It may be disconnected for seal replacement without disturbing the rest of the line. The seals are not normally furnished with the item. For rigid type items see COUPLING, TUBE; and UNION, TUBE. View more Flexible Tube Coupling Assembly

4730-01-167-7237 COUPLING ASSEMBLY,TUBE,FLEXIBLE 4730011677237 011677237

Managed by United States
NSN Created on 3 Dec 1983
Data Last Changed
November 2023
NATO Update Count
7
NATO Data Quality

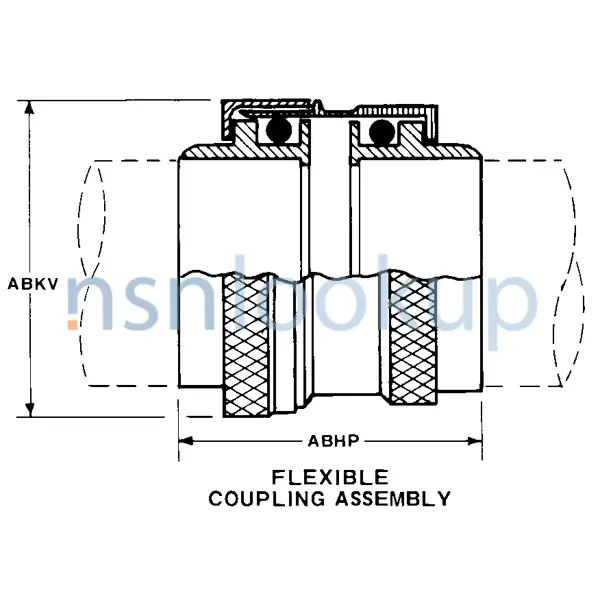

STYL Style U3 for 4730-01-167-7237 1/1
NSN 4730-01-167-7237 (Identification) 1/1

4730-01-167-7237 Stock and Availability Marketplace 4730-01-167-7237

Need Help?
Request a Quotation from participating marketplace vendors
eBay Updated Every Day
4730-01-167-7237 RQST NE eBay
eBay Updated Every Day
4730-01-167-7237 RQST eBay
Amazon Updated Every Day
4730-01-167-7237 RQST NE Amazon

4730-01-167-7237 Related Documents Related Documents 4730-01-167-7237 5+ Documents (More...)

W701-80DE 12J71-80AE W701-DE A multipiece gasket sealed item specifically designed for joining plain
RQST NE Updated Every Day 4730-01-167-7237 RQST Updated Every Day 4730-01-167-7237 RQST NE Related Documents
4730-01-167-7237 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-167-7237
Updated Every Day 4730-01-225-9174 RQST NE Updated https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-167-7237
Flexible Tube Coupling Assembly 011677237 Upgrade your Account Upgrade 4730-01-167-7237Flexible
Tube Coupling Assembly4730011677237 011677237 W701 -80DE 12J71-80AE W701-DE A multipiece gasket sealed
Request Quotation FedMall Updated Every 15 Minutes https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-167-7237
Flexible Tube Coupling Assembly 011677237 Upgrade your Account Upgrade 4730-01-167-7237Flexible
Tube Coupling Assembly4730011677237 011677237 W701 -80DE 12J71-80AE W701-DE A multipiece gasket sealed
-44C12J71-44CW701-(SIZE)C An incomplete fitting https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-167-7237
Flexible Tube Coupling Assembly 011677237 -10/fsc-1005/de 1005-12-183-1956 7.62 Millimeter Machine
W701 A multipiece gasket sealed item specifically designed for joining plain end ferruled -80DE 12J71-80AE
W701-DE A multipiece gasket sealed item specifically designed for joining plain end https//www.nsnlookup.com

4730-01-167-7237 Demil Restrictions 4730-01-167-7237

DEMIL: A | DEMILI: 1 | CRITICALITY: F | HMIC: N | PMIC: A | EDC: | ADPEC:

4730-01-167-7237 is a Flexible Tube Coupling Assembly that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

4730-01-167-7237 HTS and ScheduleB Import and Export 4730-01-167-7237

4730-01-167-7237 End Users End Users 4730-01-167-7237

US Air Force (FXGC)
Effective Date:
1 Apr 2005
Former MOE Rule:
FXAX

4730-01-167-7237 Manufacturers Approved Sources 4730-01-167-7237

4730-01-167-7237 Technical Data Datasheet 4730-01-167-7237

Characteristic
Specifications
FIIG
T385-V
Material [MATT]
Aluminum Alloy 2024
Outside Diameter [ABKV]
6.026 Inches Nominal
Overall Length [ABHP]
2.062 Inches Nominal
Special Features [FEAT]
With Electrical Bonding Device
Tube Outside Diameter For Which Designed [ACSV]
5.000 Inches Nominal
Working Pressure And Service Type [CDPG]
125.0 Pounds Per Square Inch Nominal Any Acceptable
Working Temp And Service Type [CDPH]
160.0 Deg Fahrenheit Nominal Any Acceptable
Style Designator [STYL]
Flexible Coupling Assembly

4730-01-167-7237 Weapon Systems (WSDC) Weapon Systems (WSDC) 4730-01-167-7237

4730-01-167-7237 Stock, Inventory and Procurement DLA Procurement Analysis 4730-01-167-7237

Last Stock Position:
4 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

4730-01-167-7237 Management Data Management Data 4730-01-167-7237

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2021
Department of the Air Force (DF)
EA
Subscribe
1
Jan 2021
Defense Logistics Agency (DS)
EA
Subscribe
1
Feb 2020
Department of the Air Force (DF)
EA
Subscribe
1

Air Force Air Force

Fund:
SF
Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
Budget:
9
57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
Aggregation Code:
SX
SICA RESIDUAL MMAC-OC-ALC
Price Validation Code:
N
The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ā€œLā€ or ā€œFā€, then it must be evaluated locally where purchased or fabricated.
Expendability
Recoverability
Repairability:
N
Expendable. Condemn at User. Stock Fund (except Munitions).

4730-01-167-7237 Related Items NATO Stock Numbers Related to 4730-01-167-7237

4730-01-167-7237 Freight Data Freight Information 4730-01-167-7237

4730-01-167-7237 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051400. A Sub NMFC of X. It has a NMFC Description of PIPE FITTINGS ALUMINUM. 4730-01-167-7237 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29700 which rates the freight between FCL and LCL. 4730-01-167-7237 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-167-7237 is not classified as a special type of cargo when transported by water. 4730-01-167-7237 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

4730-01-167-7237 Packaging Data Packaging Data 4730-01-167-7237

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
--
--
--

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
1
--
--
--
Physical Protection
Any Suitable Process
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
No Requirement
--
No Requirement
Not Applicable
Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
Any Suitable Fiber Box

4730-01-167-7237 Procurement History Procurement History 4730-01-167-7237 1 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE7M316M5461
27 Sep 2016
Subscribe
6
Subscribe
Subscribe

4730-01-167-7237 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 4730-01-167-7237 October 2021

Criticality and Quality

Critical Item Code:
X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
L

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
