4730-01-146-3641
Pipe Cap
4730011463641 011463641 2621-625-03 PC9A 2621-625-03 PC9AL1 AII-MTS-03-230APPENDIXAITEMF51 AII-MTS-03-230APPENDIXAITEMF51L1
A pipe fitting primarily designed for permanent installation during piping system operation to fit over or butt against a pipe or pipe fitting for sealing. Excludes FLANGE, PIPE, BLIND. View more Pipe Cap
May 2023
7
Marketplace 4730-01-146-3641
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-146-3641 5+ Documents (More...)
RQST NE Updated Every Day 4730-01-146-3641 RQST Updated Every Day 4730-01-146-3641 RQST NE Related Documents
4730-01-146-3641 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-146-3641
AII-MTS-03-230APPENDIXAITEMF51 PC9A2621 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-146-3641
Pipe Cap 4730011463641 011463641 Upgrade 4730-01-146-3641Pipe Cap4730011463641 011463641 2621-625-03
-03 PC9A 2621-625-03 PC9AL1 AII-MTS-03-230APPENDIXAITEMF51 4730-01-146-3641Pipe Cap4730011463641 011463641
AII-MTS-03-230APPENDIXAITEMF51 Restrictions Upgrade 4730-01-146-3641Pipe Cap4730011463641 011463641
AII-MTS-03-230APPENDIXAITEMF51 Restrictions Approved Sources Datasheet Management PC9A 2621-625-03 PC9AL1
AII-MTS-03-230APPENDIXAITEMF51 https//www.nsnlookup.com /fsg-47/fsc-4730/ https//www.nsnlookup.com /
Plug 5365015500615015500615 Upgrade 4730-01-146-3641Pipe Cap4730011463641 011463641 2621-625-03 PC9A
2621-625-03 PC9AL1 AII-MTS-03-230APPENDIXAITEMF51 https//www.nsnlookup.com /fsg-47/ https//www.nsnlookup.com
Restrictions 4730-01-146-3641
IUID Required
4730-01-146-3641 is a Pipe Cap that is specifically designed to be or selected as being nuclear hard. In addition it has other critical features such as tolerance, fit restrictions or application.Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-146-3641
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-146-3641
- US Navy (N1H5)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
Approved Sources 4730-01-146-3641
- Part Number
- Manufacturer
- Status
- 2621-625-03 PC9A
- Manufacturer
- 96169 - Electric Boat Corporation (Active)
- Incomplete Reference
- Incomplete Reference
- 2621-625-03 PC9AL1
- 03950 - Naval Inventory Control Point (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AII-MTS-03-230APPENDIXAITEMF51
- 96169 - Electric Boat Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AII-MTS-03-230APPENDIXAITEMF51L1
- 03950 - Naval Inventory Control Point (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4730-01-146-3641
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0

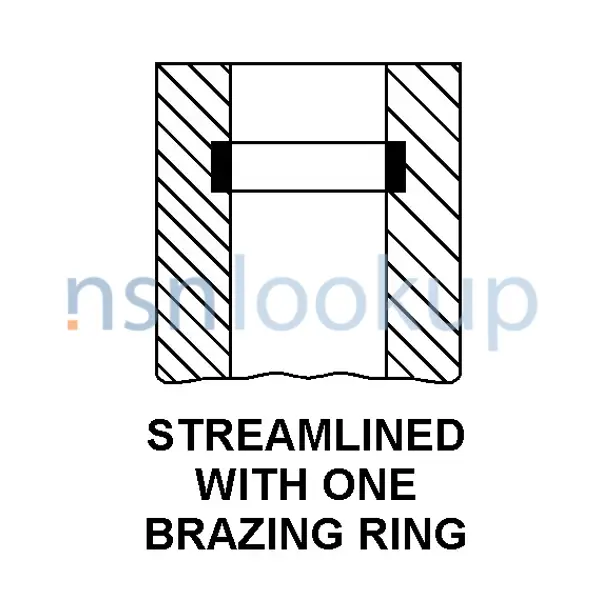

- Connection Style [AHNC]
- Streamlined With One Brazing Ring
- Criticality Code Justification [CRTL]
- Zzzy
- Head Core Diameter [AJFJ]
- 0.344 Inches Nominal
- Head Type [AJGD]
- Cored
- Material Document And Classification [MDCL]
- Mil-C-15726 Mil Spec Single Material Response Overall
- Material [MATT]
- Copper Alloy Overall
- Maximum Operating Pressure [CQGM]
- 1500.0 Pounds Per Square Inch
- Nominal Pipe Size For Which Designed [ACSU]
- 0.250 Inches
- Reference Number Differentiating Characteristics [ZZZY]
- Quality Control Iaw Navships 0948-045-7010 Material Identification And Control Instruction For Level 1 Items
- Style Designator [STYL]
- Cap
Management Data 4730-01-146-3641
Navy
- Cognizance:
- 1H
- Consumable material assigned to NAVICP MECH for inventory management
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- L1
- An item that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective evidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item.
- Issue, Repair, Requisition Restriction Code:
- 00
- No Restriction
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 4730-01-146-3641
Freight Information 4730-01-146-3641
4730-01-146-3641 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-01-146-3641 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4730-01-146-3641 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-01-146-3641 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-146-3641 is not classified as a special type of cargo when transported by water. 4730-01-146-3641 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-146-3641
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.5" H x 3.0" W x 1.5" L
- --
- --
- --
- Any Suitable Process
- 3.5" H x 3.0" W x 1.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- Open for inspection or use only
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
