4730-01-143-4137

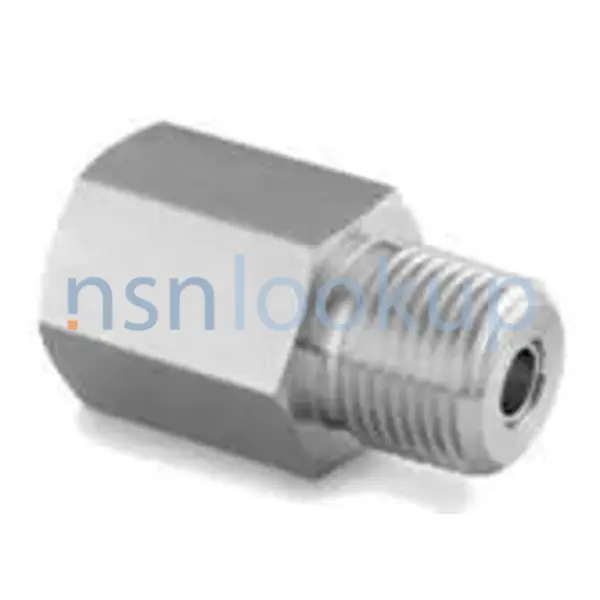

Pipe Coupling
4730011434137 011434137 SS-4-SA-EW
A straight fitting 12 inches (304 mm) long or under having the same or different type pipe connection of the same size on both ends. It is designed to join a pipe or pipe fitting to another pipe or pipe fitting. Excludes fittings with threaded external connections on both ends. See also NIPPLE, PIPE. View more Pipe Coupling
November 2023
12
Marketplace 4730-01-143-4137
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-143-4137 3+ Documents (More...)
SS-4-SA-EW COUPLING,PIPE 4 EA NS Request Quotation Subscribe to View Vendor Details...
SS-4-SA-EW COUPLING,PIPE 83 EA NS Request Quotation Updated Every Day 4730-01-143-4137 RQST NE Updated
Restrictions 4730-01-143-4137
4730-01-143-4137 is a Pipe Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-143-4137
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-143-4137
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEJBHD
- Poland (WP01)
- Effective Date:
- 1 Apr 2007
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-01-143-4137
- Part Number
- Manufacturer
- Status
- SS-4-SA-EW
- Manufacturer
- 3T9T9 - Swagelok Co (Active)
- Primary Buy
- Primary Buy
- SS-4-SA-EW
- 11649 - Cajon Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-01-143-4137
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Steel Comp 316 Overall
- Media For Which Designed [MEDA]
- Water Single Response
- Maximum Operating Pressure [CQGM]
- 600.0 Pounds Per Square Inch Single Response
- Style Designator [STYL]
- Rigid, Threaded Internal And External
- Connection Type [AWLS]
- Threaded Internal Pipe 1St End
- Connection Type [AWLS]
- Threaded External Pipe 2Nd End
- Connection Style [AHNC]
- Plain (Pipe) 1St End
- Connection Style [AHNC]
- Plain (Pipe) 2Nd End
- Thread Series Designator [THSD]
- Npt 1St End
- Thread Series Designator [THSD]
- Npt 2Nd End
- Nominal Thread Size [CQJX]
- 0.250 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.250 Inches 2Nd End
- Nominal Overall Length [CWFR]
- 1.375 Inches
- Special Features [FEAT]
- Air Flow 5000 Cc At 25 Psig
Weapon Systems (WSDC) 4730-01-143-4137
DLA Procurement Analysis 4730-01-143-4137
- Last Stock Position:
- 40 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-143-4137
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-143-4137
Freight Information 4730-01-143-4137
4730-01-143-4137 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-143-4137 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-143-4137 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-143-4137 is not classified as a special type of cargo when transported by water. 4730-01-143-4137 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-143-4137
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Procurement History 4730-01-143-4137 1 Records
Contracting Technical Data File (CTDF) 4730-01-143-4137 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
