4730-01-132-4707
Fluid Pressure Line Multiple Connector
4730011324707 011324707 2621-166-03ASSY85
A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S). View more Fluid Pressure Line Multiple Connector
May 2023
4
Marketplace 4730-01-132-4707
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-132-4707 1+ Documents (More...)
/fsg-47/fsc-4730/us
BUY NE FedMall Updated Every Day 4730-01-132-4707 RQST NE Updated Every Day 4730-01-132-4707 RQST
Updated Every Day 4730-01-132-4707 RQST NE Related Documents 4730-01-132-4707 1+ Documents ( More...
Restrictions 4730-01-132-4707
4730-01-132-4707 is a Fluid Pressure Line Multiple Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-132-4707
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-132-4707
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJBHD
Approved Sources 4730-01-132-4707
- Part Number
- Manufacturer
- Status
- 2621-166-03ASSY85
- Manufacturer
- 96169 - Electric Boat Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-01-132-4707
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-G
- Bolt Hole Fluid Passage [CGLR]
- Not Provided
- Bolt Hole Flats Serrations [CGLQ]
- Not Provided
- Connection Style [AHNC]
- Plain First Connection
- Connection Style [AHNC]
- Socket Second Connection
- Deg Between Outlets [CFQM]
- 90.0
- Fluid Connection Quantity [CGLN]
- 1 First Connection
- Fluid Connection Quantity [CGLN]
- 2 Second Connection
- Fluid Conveyance Type And Size For Which Designed [CGLP]
- 1/8 In. Od Tube;35/64 In. Od Tube
- Material [MATT]
- Steel Corrosion Resisting
- Screw Thread Series Designator [AJYP]
- Unf First Connection
- Seat [BJHZ]
- Not Included Second Connection
- Seat [BJHZ]
- Not Included First Connection
- Overall Length [ABHP]
- 2.385 Inches Nominal
- Overall Width [ABMK]
- 2.784 Inches Nominal
- Thread Size [ABUJ]
- 5/16-24 First Connection

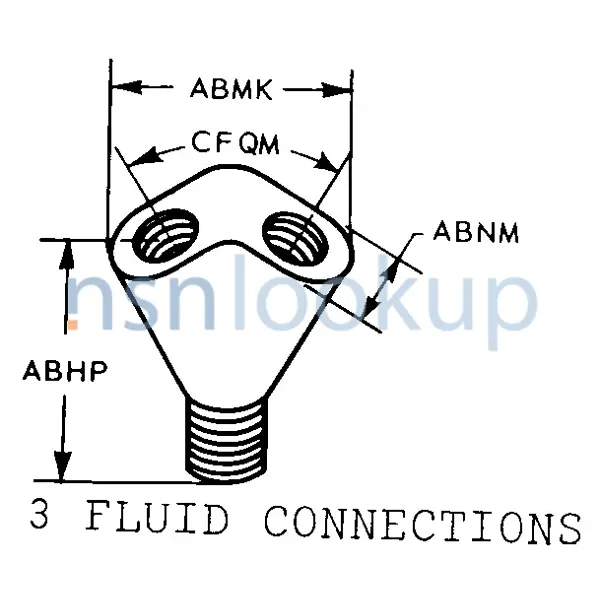

- Style Designator [STYL]
- 3 Fluid Connections
- Thickness [ABNM]
- 0.540 Inches Nominal
- Thread Class [AAJD]
- 3B First Connection
- Thread Direction [AAJF]
- Right-Hand First Connection
- Thread Provision [AFEW]
- Unthreaded Second Connection
- Thread Provision [AFEW]
- Threaded First Connection
Weapon Systems (WSDC) 4730-01-132-4707
DLA Procurement Analysis 4730-01-132-4707
Management Data 4730-01-132-4707
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-01-132-4707
Freight Information 4730-01-132-4707
4730-01-132-4707 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-132-4707 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-132-4707 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-132-4707 is not classified as a special type of cargo when transported by water. 4730-01-132-4707 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
