4730-01-123-8850
Pipe Nipple
4730011238850 011238850 603-A
A straight one-piece metallic pipe 12 inches(304 MM)or less in length having external threads of the same size on both ends. It may have a center section which is externally shaped to accommodate a wrench. For pipe having internal threads 12 inches(304 MM)or less in length see coupling,pipe. For pipe in excess of 12 inches(304 MM)see pipe as modified. View more Pipe Nipple
November 2023
5
Marketplace 4730-01-123-8850
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-123-8850 3+ Documents (More...)
4730-01-123-8850 RQST NE Related Documents 4730-01-123-8850 1+ Documents ( More... ) https//www.nsnlookup.com

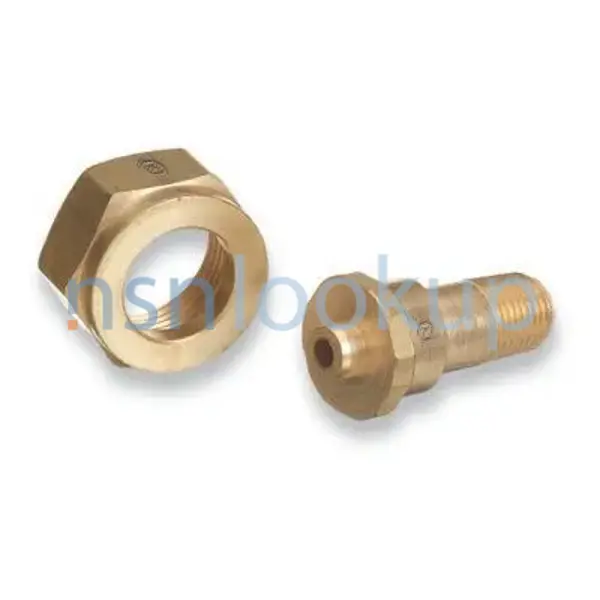

/fsg-47/fsc-4730/us 4730-01-123-8850 Pipe Nipple 4730011238850 011238850,603-A Photo 1/2 NSN 4730-01
Restrictions 4730-01-123-8850
4730-01-123-8850 is a Pipe Nipple that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-123-8850
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-123-8850
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- GT
Approved Sources 4730-01-123-8850
- Part Number
- Manufacturer
- Status
- 603-A
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-01-123-8850
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Copper Alloy Overall
- Style Designator [STYL]
- Long
- Connection Type [AWLS]
- Threaded External Pipe All Ends
- Thread Series Designator [THSD]
- Npt All Ends
- Nominal Thread Size [CQJX]
- 0.250 Inches All Ends
- Nominal Overall Length [CWFR]
- 2.250 Inches
Weapon Systems (WSDC) 4730-01-123-8850
DLA Procurement Analysis 4730-01-123-8850
- Last Stock Position:
- 89 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-123-8850
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-123-8850
Freight Information 4730-01-123-8850
4730-01-123-8850 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-01-123-8850 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-01-123-8850 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-123-8850 is not classified as a special type of cargo when transported by water. 4730-01-123-8850 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-123-8850
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 4730-01-123-8850 1 Records
Contracting Technical Data File (CTDF) 4730-01-123-8850 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
