4730-01-118-9367
Tube Swing Joint
4730011189367 011189367 5C5789 4730PL1144673
A metallic connector designed to join two lengths of tube and/or tube fittings in a fluid line to permit swinging or turning at one or more joints. Each joint permits turning on its axis on one plane. It may incorporate bearing(s) to facilitate swinging action after installation. View more Tube Swing Joint
Managed by United States
NSN Created on 13 Sep 1981
Data Last Changed
November 2023
November 2023
NATO Update Count
37
37
NATO Data Quality
Marketplace 4730-01-118-9367
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-118-9367 1+ Documents (More...)
5C5789 4730PL1144673 A metallic connector designed to join two lengths of tube and/or tube fittings
to View Vendor Details... 5C5789 SWING JOINT,TUBE 1 EA NS Request Quotation 5C5789 SWING JOINT,TUBE
1 EA NS Request Quotation Updated Every Day 4730-01-118-9367 RQST NE Updated Every Day 4730-01-118-9367
to View Vendor Details... 5C5789 SWING JOINT,TUBE 1 EA NS Request Quotation 5C5789 SWING JOINT,TUBE
1 EA NS Request Quotation Updated Every Day 4730-01-118-9367 RQST NE Updated Every Day 4730-01-118-9367
Restrictions 4730-01-118-9367
4730-01-118-9367 is a Tube Swing Joint that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-118-9367
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-118-9367
- US Coast Guard (C911)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- C001
- Supplementary Receivers:
- XH
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Oct 2007
- Belgium (ZB01)
- Effective Date:
- 1 May 2011
- Canada (ZC01)
- Effective Date:
- 1 Jul 2010
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Dec 1996
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Sep 1993
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Denmark (ZS01)
- Effective Date:
- 1 May 2003
- Norway (ZT01)
- Effective Date:
- 1 Apr 2008
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jan 2014
Approved Sources 4730-01-118-9367
- Part Number
- Manufacturer
- Status
- 5C5789
- Manufacturer
- 70236 - Tactair Fluid Controls Inc (Active)
- Primary Buy
- Primary Buy
- 5C5789
- 99215 - Kaiser Fluid Technologies Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730PL1144673
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 4730-01-118-9367
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Aluminum Alloy 7075 Overall
- Surface Treatment [SFTT]
- Anodize Overall
- Media For Which Designed [MEDA]
- Hydraulic Fluid Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 160.0 Deg Fahrenheit Single Response
- Style Designator [STYL]

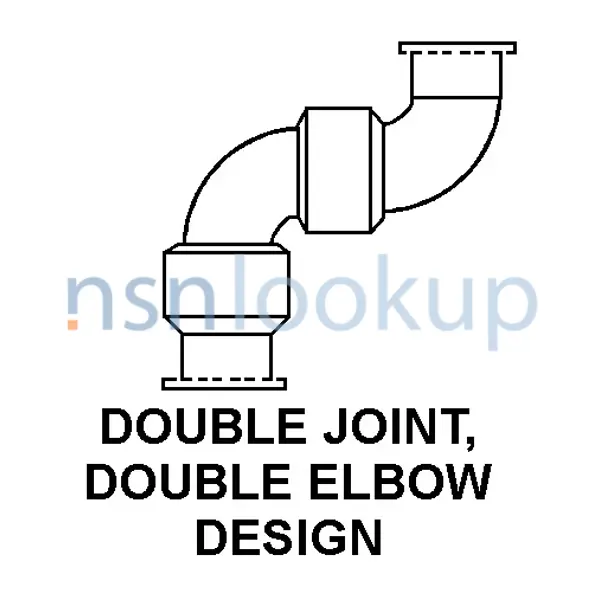

- Double Joint, Double Elbow Design
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Connection Type [AWLS]
- Threaded External Boss 2Nd End
- Connection Style [AHNC]
- Flareless (Tube) 1St End
- Connection Style [AHNC]
- External Seat For Gasket Seal (Boss) 2Nd End
- Seat Angle [CQRB]
- 12.0 Degrees 1St End
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.500 Inches 1St End
- Thread Series Designator [THSD]
- Unjf 1St End
- Thread Series Designator [THSD]
- Unjf 2Nd End
- Nominal Thread Size [CQJX]
- 0.750 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.750 Inches 2Nd End
- Thread Class [AAJD]
- 3A 1St End
- Thread Class [AAJD]
- 3A 2Nd End
- Leg Length [AHSJ]
- 2.280 Inches Nominal 1St End
- Leg Length [AHSJ]
- 2.720 Inches Nominal 2Nd End
- Special Features [FEAT]
- 1St End Bukhead Thd Size 0.750 In. Nom,Cl 3A,Unjf
Weapon Systems (WSDC) 4730-01-118-9367
DLA Procurement Analysis 4730-01-118-9367
- Last Stock Position:
- 460 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-118-9367
