4730-01-117-0945

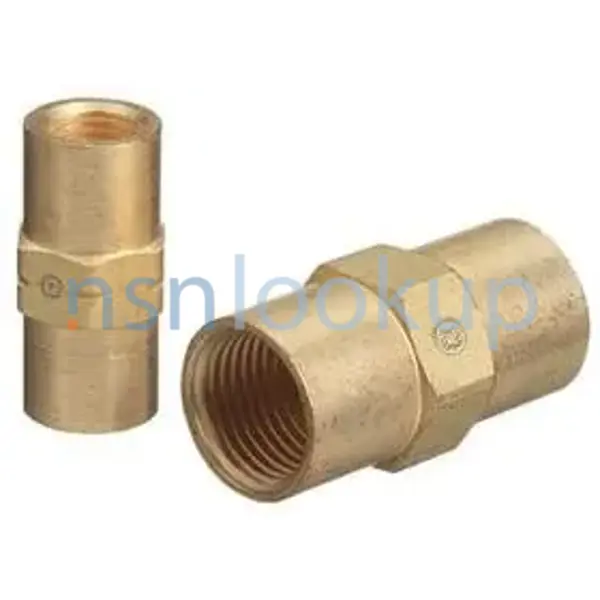

Hose Coupling
4730011170945 011170945 AW-430A C118 AW-430A-R.H.
A straight hose fitting designed to join a hose fitting or to a hose or another hose fitting. For connecting hose to hose fittings it must have two types of hose connections and one connection must have standard hose threads. For connecting two hose fittings it must have two types of hose connections that have standard hose threads of the same size on both ends, only one connection may be externally threaded. Excludes items with self-sealing and/or quick disconnect features. View more Hose Coupling
June 2023
5
Marketplace 4730-01-117-0945
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-117-0945 5+ Documents (More...)
C118 COUPLING,HOSE 276 EA NS Request Quotation Subscribe to View Vendor Details... 4730-01-117-0945 COUPLING
AW-430A COUPLING,HOSE 10 EA NS Request Quotation C118 COUPLING,HOSE 10 EA NS Request Quotation FedMall
RQST NE Updated Every 1076 C118 H926-387920 A straight tube fitting having a 1076 C118 H926-387920 A
C118 PISTON 1 EA NS Request Quotation Subscribe to View Vendor Details...
1076 C118 H926-387920 A straight tube fitting having a 1076 C118 H926-387920 A straight tube fitting
having a different size connection on each end. 1076 C118 https//www.nsnlookup.com /fsg-12/fsc-1220/
C118 PISTON 1 EA NS Request Quotation Subscribe to View Vendor Details...
,C118 6 NATO Data Quality NSN 4820-00-957-5800 (Generic Image) 1/1 1.
1076 C118 H926-387920 A straight tube fitting having a https//www.nsnlookup.com /fsg-52/fsc-5220/it
C118 H926-387920 A straight tube fitting having a different size connection on each end. 1076 https/
Restrictions 4730-01-117-0945
4730-01-117-0945 is a Hose Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-117-0945
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-117-0945
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- GTHD
Approved Sources 4730-01-117-0945
- Part Number
- Manufacturer
- Status
- AW-430A
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
- C118
- 52929 - Superior Products, Llc. (Active)
- Secondary Buy
- Secondary Buy
- AW-430A-R.H.
- 16166 - Western Enterprises Div Of Scott And (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-01-117-0945
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Copper Alloy Overall
- Media For Which Designed [MEDA]
- Oxygen, Gaseous Single Response
- Maximum Operating Pressure [CQGM]
- 200.0 Pounds Per Square Inch Single Response
- Connection Type [AWLS]
- Threaded Internal Hose All Ends
- Connection Style [AHNC]
- Flared (Gas Fitting) All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Thread Series Designator [THSD]
- Unf All Ends
- Nominal Thread Size [CQJX]
- 0.375 Inches All Ends
- Thread Class [AAJD]
- 3B All Ends
- Nominal Overall Length [CWFR]
- 2.500 Inches
DLA Procurement Analysis 4730-01-117-0945
Management Data 4730-01-117-0945
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-117-0945
Freight Information 4730-01-117-0945
4730-01-117-0945 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051420. A Sub NMFC of X. It has a NMFC Description of CONDUITS,O/T EARTHEN:PIPE FITTINGS. 4730-01-117-0945 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29090 which rates the freight between FCL and LCL. 4730-01-117-0945 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-117-0945 is not classified as a special type of cargo when transported by water. 4730-01-117-0945 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-117-0945
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 4730-01-117-0945 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
