4730-01-115-1888

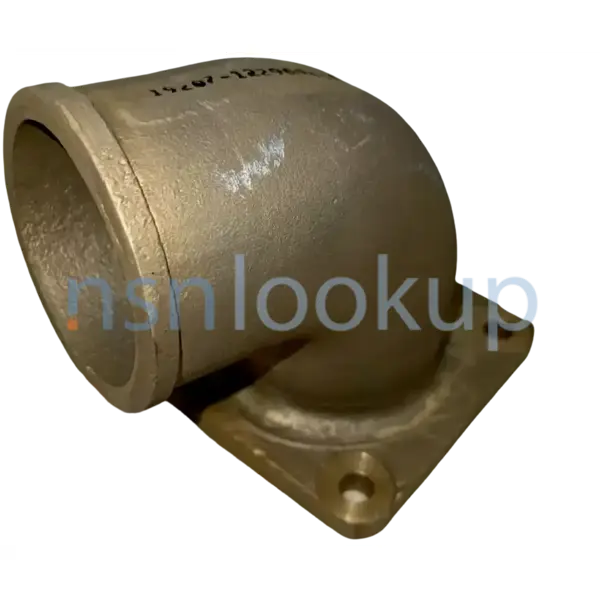

Flange To Hose Elbow
4730011151888 011151888 12296945 10086206
A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed toaccommodate a hose. It may have side and/or heel inlet(s). View more Flange To Hose Elbow
October 2025
19
Marketplace 4730-01-115-1888
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-115-1888 1+ Documents (More...)
United States (US) 4. 4730-01-115-1888 Marketplace Restrictions Approved Sources Datasheet Management
Updated 49 Days Ago 12296945 ELBOW 2 EA NS Request Quotation Updated Every Day 4730-01-115-1888 RQST
Restrictions 4730-01-115-1888
4730-01-115-1888 is a Flange To Hose Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-115-1888
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-115-1888
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZCLBD
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1998
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Sep 1997
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-01-115-1888
- Part Number
- Manufacturer
- Status
- 12296945
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10086206
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 4730-01-115-1888
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Aluminum Alloy 355.0 Overall
- Connection Type [AWLS]
- Unthreaded External Tube 1St End
- Connection Style [AHNC]
- Shouldered (Gasket) (Tube) 1St End
- Nominal Thickness [CWCK]
- 0.500 Inches All Ends
- Nominal Length [AKGG]
- 4.000 Inches All Ends
- Nominal Width [AKGF]
- 4.000 Inches All Ends
- Bolt Hole Quantity [AECS]
- 4 2Nd End
- Bolt Hole Nominal Diameter [CWCQ]
- 0.460 Inches All Ends
- Center To Center Nominal Distance Between Bolt Holes Along Length [CWCY]
- 3.500 Inches 2Nd End
- Center To Center Nominal Distance Between Bolt Holes Along Width [CWDC]
- 3.500 Inches All Ends
- Flange Face Design [CWDF]
- Plain Swivel 2Nd End
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 3.000 Inches All Ends
- Tubing Wall Nominal Thickness For Which Designed [CWFK]
- 0.190 Inches All Ends
- Leg Length [AHSJ]
- 3.500 Inches Nominal 1St End
- Special Features [FEAT]
- End Article Application Inf Fighting Vehicle Nsn 2350-01-179-1027
Weapon Systems (WSDC) 4730-01-115-1888
DLA Procurement Analysis 4730-01-115-1888
- Last Stock Position:
- 7 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-115-1888
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- MM
- Armored Carriers
Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavalry Fighting Vehicle (M3, M3A1, M3A2)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-115-1888
Freight Information 4730-01-115-1888
4730-01-115-1888 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-115-1888 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4730-01-115-1888 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-115-1888 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-115-1888 is not classified as a special type of cargo when transported by water. 4730-01-115-1888 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-115-1888
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x -- W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4730-01-115-1888 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
