4730-01-109-3177

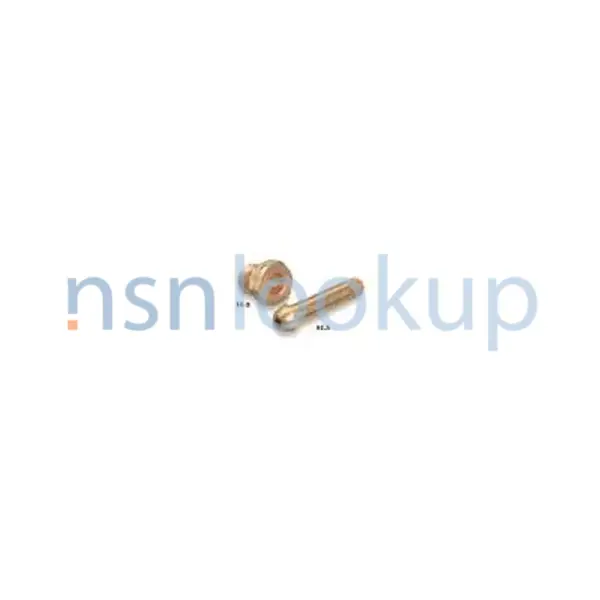

Union Tailpiece
4730011093177 011093177 15-8S CGA-590 NP188R NP-188
A fitting used with a union nut and thread piece to form a union. View more Union Tailpiece
September 2023
7
Marketplace 4730-01-109-3177
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-109-3177 5+ Documents (More...)
//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-109-3177 Union Tailpiece 4730011093177 011093177,15-8S
//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-109-3177 Union Tailpiece 4730011093177 011093177,15-8S
/ https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-109-3177 Union Tailpiece 4730011093177 011093177,15
-8S your Account Upgrade 4730-01-109-3177Union Tailpiece4730011093177 011093177 15-8S CGA-590 NP188R
/fsg-48/fsc-4820/ca
/www.nsnlookup.com /fsg-48/fsc-4820/ca 4820-21-912-4045 Compressed Gas Regulator 4820219124045718-CGA 590
Every Day 4820-21-912-4045 RQST NE Restrictions https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-109-3177
4820-01-343-6503 3+ Documents ( More... ) https https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-109-3177
Union Tailpiece 4730011093177 011093177,15-8S Tailpiece4730011093177 01109317715-8SCGA-590NP188R
Restrictions 4730-01-109-3177
4730-01-109-3177 is a Union Tailpiece that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-109-3177
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- GT
Approved Sources 4730-01-109-3177
- Part Number
- Manufacturer
- Status
- 15-8S
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
- CGA-590
- 16166 - Western Enterprises Div Of Scott And (Active)
- Secondary Buy
- Secondary Buy
- NP188R
- 52929 - Superior Products, Llc. (Active)
- Secondary Buy
- Secondary Buy
- NP-188
- 52929 - Superior Products, Llc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4730-01-109-3177
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-Q
- End Connection Type [AWZY]
- Threaded
- Material [MATT]
- Copper Alloy
- Nut Retaining Flange [CGNJ]
- Included
- Screw Thread Series Designator [AJYP]
- Npt
- Seat Angle In Deg [AJFY]
- 30.0
- Screw Thread Location [BBMM]
- External
- Seat Type [BYJF]
- Angle
- Overall Length [ABHP]
- 2.500 Inches Nominal
- Thread Size [ABUJ]
- 0.250-18
- Working Pressure And Service Type [CDPG]
- 3000.0 Pounds Per Square Inch Nominal Air
- Thread Direction [AAJF]
- Right-Hand
