4730-01-091-8034
Tube Swing Joint
4730010918034 010918034 C9270-1 C9270 90943-1
A metallic connector designed to join two lengths of tube and/or tube fittings in a fluid line to permit swinging or turning at one or more joints. Each joint permits turning on its axis on one plane. It may incorporate bearing(s) to facilitate swinging action after installation. View more Tube Swing Joint
January 2023
18
Marketplace 4730-01-091-8034
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-091-8034 5+ Documents (More...)
C9270-1 SWING JOINT,TUBE 1 EA NS Request Quotation Updated Every Day 4730-01-091-8034 RQST NE Updated
Every Day 4730-01-091-8034 RQST Updated Every Day 4730-01-091-8034 RQST NE Related Documents 4730-01
8034Tube Swing Joint4730010918034 010918034 C9270 -1 C9270 90943-1 A metallic connector designed to join
two lengths of tube and/or tube fittings in a C9270-1 SWING JOINT,TUBE 1 EA NS Request Quotation Updated
C9270-1 SWING JOINT,TUBE 1 EA NS Request Quotation Updated Every Day 4730-01-091-8034 RQST NE Updated
Tube Swing Joint 4730010918034 010918034 for $1 a day Upgrade your Account Upgrade 4730-01-091-
Updated Every Day 4730-01-091-8034 RQST NE Updated https//www.nsnlookup.com /fsg-99/fsc-9905/dk 9905
Documents ( More... ) https//www.nsnlookup.com https https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-091-8034
Tube Swing Joint 4730010918034 010918034 1C927090943-1 A metallic connector designed to join https
Restrictions 4730-01-091-8034
4730-01-091-8034 is a Tube Swing Joint that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-01-091-8034
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-091-8034
- Poland (WP01)
- Effective Date:
- 1 Feb 2007
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-01-091-8034
- Part Number
- Manufacturer
- Status
- C9270-1
- Manufacturer
- 81755 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy
- 90943-1
- 00255 - Futurecraft Corp Sub Of South Bend (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- C9270
- 81755 - Lockheed Martin Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 4730-01-091-8034
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Steel Corrosion Resisting Overall
- Material Document And Classification [MDCL]
- Mil-S-7720 Mil Spec Single Material Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Media For Which Designed [MEDA]
- Nitrogen, Liquid Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Style Designator [STYL]

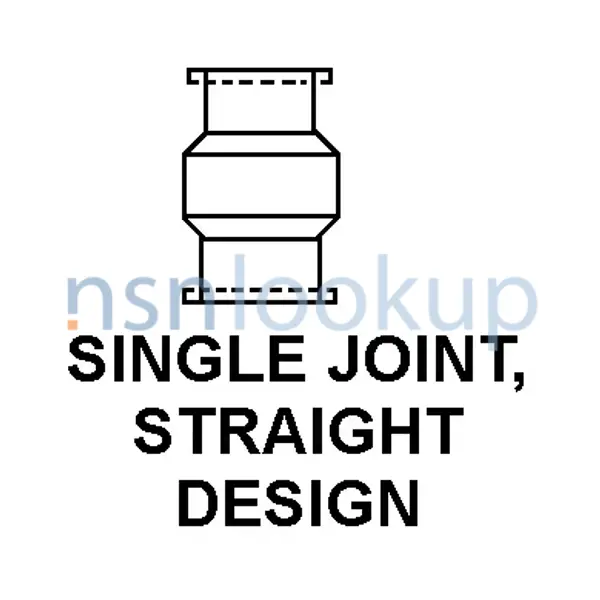

- Single Joint, Straight Design
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Connection Type [AWLS]
- Threaded Internal Boss 2Nd End
- Connection Style [AHNC]
- Flared (Tube) 1St End
- Connection Style [AHNC]
- Gasket Seal (Boss) 2Nd End
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.250 Inches 1St End
- Thread Series Designator [THSD]
- Unjf 1St End
- Thread Series Designator [THSD]
- Unf 2Nd End
- Nominal Thread Size [CQJX]
- 0.438 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.500 Inches 2Nd End
- Thread Class [AAJD]
- 3A 1St End
- Thread Class [AAJD]
- 3B 2Nd End
- Leg Length [AHSJ]
- 0.550 Inches Nominal 1St End
- Leg Length [AHSJ]
- 0.310 Inches Nominal 2Nd End
- Furnished Items And Quantity [TMQY]
- 2 Seal
- Special Features [FEAT]
- With Bleed Hole,With Integral Cres Filter Screen,700 By 80 Mesh;Weapon System Essential
- Criticality Code Justification [CRTL]
- Feat
- End Item Identification [AGAV]
- Support Equipment,F-16 Aircraft
DLA Procurement Analysis 4730-01-091-8034
Management Data 4730-01-091-8034
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Nov 2005
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- V
- Discontinued W/O Replacement
- V
Similar Supply Items to 4730-01-091-8034
Freight Information 4730-01-091-8034
4730-01-091-8034 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-091-8034 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-091-8034 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-091-8034 is not classified as a special type of cargo when transported by water. 4730-01-091-8034 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
