4730-01-046-6995

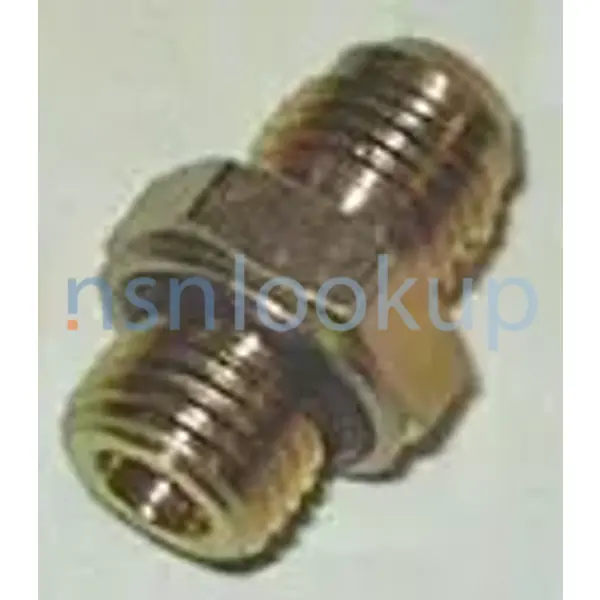

Tube Nipple
4730010466995 010466995 0303-20-20 20-20 070119CA J514 2027-20-20S MS51519A20 20LHBTXS MIL-DTL-18866 68361AX
A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets. View more Tube Nipple
Managed by United States
NSN Created on 21 Aug 1977
Data Last Changed
November 2023
November 2023
NATO Update Count
25
25
NATO Data Quality
Marketplace 4730-01-046-6995
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
J514 NIPPLE,TUBE 640 EA NS
MS51519A20 NIPPLE,TUBE 138 EA NS
0303-20-20 NIPPLE,TUBE 17 EA NS
20-20 070119CA NIPPLE,TUBE 14 EA NS
2027-20-20S NIPPLE,TUBE 38 EA NS
20LHBTXS NIPPLE,TUBE 49 EA NS
20LHBTXS RQST NE
0303-20-20 RQST NE
Updated Every Day 4730-01-046-6995 RQST NE
Updated Every Day 4730-01-046-6995 RQST
Updated Every Day 4730-01-046-6995 RQST NE
Related Documents 4730-01-046-6995 5+ Documents (More...)
0303-20-20 20-20 070119CA J514 2027-20-20S MS51519A20 20LHBTXS MIL-DTL-18866 68361AX A straight, one-piece
J514 NIPPLE,TUBE 640 EA NS Request Quotation MS51519A20 NIPPLE,TUBE 138 EA NS Request Quotation 0303-
20-20 NIPPLE,TUBE 17 EA NS Request Quotation 20-20 070119CA NIPPLE,TUBE 14 EA NS Request Quotation 2027
J514 NIPPLE,TUBE 640 EA NS Request Quotation MS51519A20 NIPPLE,TUBE 138 EA NS Request Quotation 0303-
20-20 NIPPLE,TUBE 17 EA NS Request Quotation 20-20 070119CA NIPPLE,TUBE 14 EA NS Request Quotation 2027
J514.
NIPPLE,BOSS 49 EA NS Request Quotation 0303-20-20 NIPPLE,BOSS 17 EA NS Request Quotation J514 NIPPLE
,BOSS 640 EA NS Request Quotation 20-20 070119CA NIPPLE,BOSS 14 EA NS Request Quotation MS51519A20 NIPPLE
NIPPLE,BOSS 49 EA NS Request Quotation 0303-20-20 NIPPLE,BOSS 17 EA NS Request Quotation J514 NIPPLE
,BOSS 640 EA NS Request Quotation 20-20 070119CA NIPPLE,BOSS 14 EA NS Request Quotation MS51519A20 NIPPLE
Tube Nipple 4730010466995 010466995 for $1 a day Upgrade your Account Upgrade 4730-01-046-6995Tube
Nipple4730010466995 010466995 0303-20-20 20-20 070119CA J514 2027-20-20S MS51519A20 20LHBTXS MIL-DTL
-18866 68361AX A straight, one-piece fitting NIPPLE,TUBE 17 EA NS Request Quotation 20-20 070119CA NIPPLE
Nipple4730010466995 010466995 0303-20-20 20-20 070119CA J514 2027-20-20S MS51519A20 20LHBTXS MIL-DTL
-18866 68361AX A straight, one-piece fitting NIPPLE,TUBE 17 EA NS Request Quotation 20-20 070119CA NIPPLE
609-1797 4730-00-224-7323 4730-00-158-9977 4730-21-890-2209 4730-01-484-9686 4730-00-126-7917 4730-01-046-6995
615-1922 4730-00-224-7323 4730-00-158-9977 4730-21-890-2209 4730-01-484-9686 4730-00-126-7917 4730-01-046-6995
Restrictions 4730-01-046-6995
4730-01-046-6995 is a Tube Nipple that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-01-046-6995
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-046-6995
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHXHD
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
Approved Sources 4730-01-046-6995
- Part Number
- Manufacturer
- Status
- MS51519A20
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-18866
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 0303-20-20
- 30780 - Parker-Hannifin Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 20LHBTXS
- 30780 - Parker-Hannifin Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 20-20 070119CA
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- J514
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 20LHBTXS
- 98441 - Parker Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-DTL-18866
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 68361AX
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0303-20-20
- 98441 - Parker Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- J514
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 20-20 070119CA
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2027-20-20S
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Advisory Reference
- Advisory Reference
- 68361AX
- 75Q65 - Oshkosh Defense Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-01-046-6995
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared W/ Gasket Seal (Boss) All Ends
- Connection Type [AWLS]
- Threaded External Boss All Ends
- Furnished Items And Quantity [TMQY]
- 2 Tube Coupling Nut W/Sleeve And 2 Preformed Packing
- Material [MATT]
- Steel Overall
- Maximum Operating Temp [AEHZ]
- 250.0 Deg Fahrenheit Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Hydraulic Fluid Single Response
- Nominal Overall Length [CWFR]
- 2.430 Inches
- Nominal Thread Size [CQJX]
- 1.625 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- 2C Figure
- Specification/Standard Data [ZZZK]
- 81343-J514 Professional/Industrial Association Standard And 96906-Ms51519 Government Standard
- Style Designator [STYL]
- Flared W/ Center Wrenching Facility
- Surface Treatment Document And Classification [STDC]
- J514 Assn Std Single Treatment Response Overall And Qq-P-416, Ty 2, Cl 3 Fed Spec Single Treatment Response Overall
- Thread Class [AAJD]
- 2A All Ends
- Thread Series Designator [THSD]
- Un All Ends
- Thread Quantity Per Inch [CMLP]
- 12 All Ends
Weapon Systems (WSDC) 4730-01-046-6995
DLA Procurement Analysis 4730-01-046-6995
- Last Stock Position:
- 227 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-046-6995
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-046-6995
Freight Information 4730-01-046-6995
4730-01-046-6995 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-046-6995 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-046-6995 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-046-6995 is not classified as a special type of cargo when transported by water. 4730-01-046-6995 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-046-6995
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x -- W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4730-01-046-6995 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
