4730-01-045-1120
Tube Fitting Insert
4730010451120 010451120 Q-TB-2733 11642119-1
A flanged cylindrical metallic or nonmetallic item designed to be inserted into soft plastic tubing to accommodate the sleeve of compression type tube fittings. View more Tube Fitting Insert
June 2025
28
Marketplace 4730-01-045-1120
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-045-1120 2+ Documents (More...)

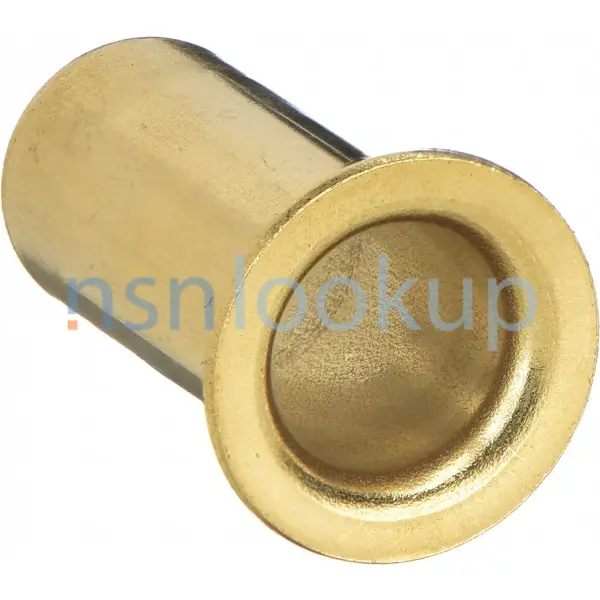

Photo 1/2 NSN 4730-01-045-1120 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 4730-01-045-1120 RQST Updated Every Day 4730-01-045-1120 RQST NE Related Documents
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-045-1120
Tube Fitting Insert 4730010451120 010451120, $1 a day Upgrade your Account Upgrade 4730-01-045-
Restrictions 4730-01-045-1120
4730-01-045-1120 is a Tube Fitting Insert that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-01-045-1120
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-045-1120
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Mar 1999
- Morocco (YP01)
- Effective Date:
- 1 Dec 2011
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 1994
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4730-01-045-1120
- Part Number
- Manufacturer
- Status
- Q-TB-2733
- Manufacturer
- 93061 - Parker-Hannifin Corp (Active)
- Incomplete Reference
- Incomplete Reference
- 11642119-1
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 4730010451120
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730010451120
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4730-01-045-1120
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-J
- Casehardening Indicator [AASG]
- Not Casehardened
- Flange Outside Diameter [AHTC]
- 0.230 Inches Nominal
- Material [MATT]
- Copper Alloy 360
- Sleeve Outside Diameter [ARYW]
- 0.184 Inches Minimum And 0.188 Inches Maximum
- Style Designator [STYL]
- Plain
- Surface Treatment [SFTT]
- Dykem Stain,Red
Weapon Systems (WSDC) 4730-01-045-1120
DLA Procurement Analysis 4730-01-045-1120
- Last Stock Position:
- 574 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-045-1120
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-045-1120
Freight Information 4730-01-045-1120
4730-01-045-1120 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-01-045-1120 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-01-045-1120 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-045-1120 is not classified as a special type of cargo when transported by water. 4730-01-045-1120 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-045-1120
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-01-045-1120 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
