4730-01-024-7701
Pipe Flange
4730010247701 010247701 MIL-PRF-20042 5179 5179-300 CS4730-0108-A068GJ MIL-F-20042 CS4730-0108
An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange
May 2023
3
Marketplace 4730-01-024-7701
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-024-7701 5+ Documents (More...)
MIL-F-20042 FLANGE,PIPE 21 EA NS Request Quotation Subscribe to View Vendor Details... 5179 FLANGE,PIPE
solid or split into halves, MIL-PRF-20042 FLANGE,PIPE 37 EA CS4730-0108 Flange 4730001042011 https https
MIL-PRF-20042 FLANGE,PIPE 37 EA NS Request Quotation MIL-F-20042 FLANGE,PIPE 21 EA NS Request Quotation
Pipe Flange 4730010247701 010247701 5179 5179-300 CS4730-0108-A068GJ MIL-F-20042CS4730-0108 An
Pipe Flange 4730010247701 010247701 5179 5179-300 CS4730-0108-A068GJ MIL-F-20042 CS4730-0108 An
CS4730-0108 626261 An item solid or split into halves, FLANGE,PIPE 37 EA CS4730-0108 Flange 4730001042011
-A-064-D-J MIL-F-20042 An item solid or split into halves, having 626261 An item solid or split
MILF20042 An item solid or split into halves, having a threaded or CS4730-0108 FLANGE,PIPE 1 EA
4730002036049 002036049, CS4730-0108A064DJ CS4730-0108-A-064-D-J MIL-F-20042 https//www.nsnlookup.com
-A-064-D-J MIL-F-20042 An item solid or split into halves, having -A068GJ MIL-F-20042CS4730-0108
Restrictions 4730-01-024-7701
4730-01-024-7701 is a Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-01-024-7701
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-024-7701
- National Security Agency (DGX1)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- DAX1
- Supplementary Receivers:
- AX
Approved Sources 4730-01-024-7701
- Part Number
- Manufacturer
- Status
- 5179-300
- Manufacturer
- 72423 - Flagg Stanley G & Co Inc Dba Flagg (Active)
- Primary Buy
- Primary Buy
- MIL-PRF-20042
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 5179
- 72423 - Flagg Stanley G & Co Inc Dba Flagg (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- CS4730-0108-A068GJ
- 16236 - Dla Land And Maritime (Active)
- Secondary Buy
- Secondary Buy
- MIL-F-20042
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CS4730-0108
- 16236 - Dla Land And Maritime (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-024-7701
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- Departure From Cited Document [ZZZW]
- Flange Is Undrilled
- Face Seating Surface Condition [AKWE]
- Serrated
- Flange Diameter [ABKK]
- 5.937 Inches Nominal

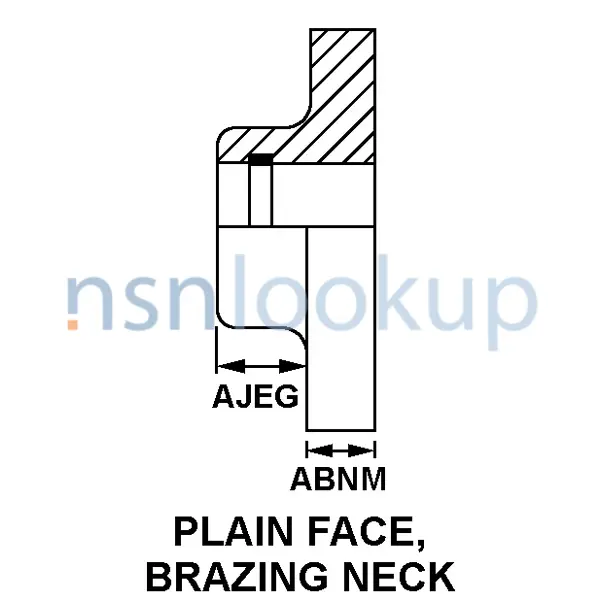

- Flange Section Style [AJEM]
- Plain Face, Brazing Neck
- Groove Pitch Diameter [AJEY]
- 2.025 Inches Nominal
- Groove Width [ABGF]
- 0.250 Inches Nominal
- Groove Cross-Sectional Shape [AJEX]
- Rectangular
- Groove Depth [ABGA]
- 0.125 Inches Nominal
- Material [MATT]
- Copper Alloy
- Maximum Operating Pressure And Media For Which Designed [CQCJ]
- 400.0 Pounds Per Square Inch Steam And 400.0 Pounds Per Square Inch Gas And 400.0 Pounds Per Square Inch Oil And 400.0 Pounds Per Square Inch Water
- Maximum Operating Temp And Media For Which Designed [CRWH]
- 425.0 Deg Fahrenheit Steam And 425.0 Deg Fahrenheit Gas And 425.0 Deg Fahrenheit Oil And 425.0 Deg Fahrenheit Water
- Neck Height [AJEG]
- 0.938 Inches Nominal
- Nominal Pipe Size For Which Designed [ACSU]
- 1.500 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- Pr Type
- Material Document And Classification [MDCL]
- Astm B-61 Assn Std Single Material Response
- Style Designator [STYL]
- Round, No Bolt Holes
- Thickness [ABNM]
- 0.812 Inches Nominal
