4730-01-016-2531

Pipe To Tube Elbow

4730010162531 010162531 SAE-J514 11668926 4-4CCCTX-S SAE J514 4-4 071602C 94-202413-4-4S J514 4-4 071602C

A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Pipe To Tube Elbow

Managed by United States

NSN Created on 7 Feb 1976

Data Last Changed
June 2025

NATO Update Count
27

NATO Data Quality

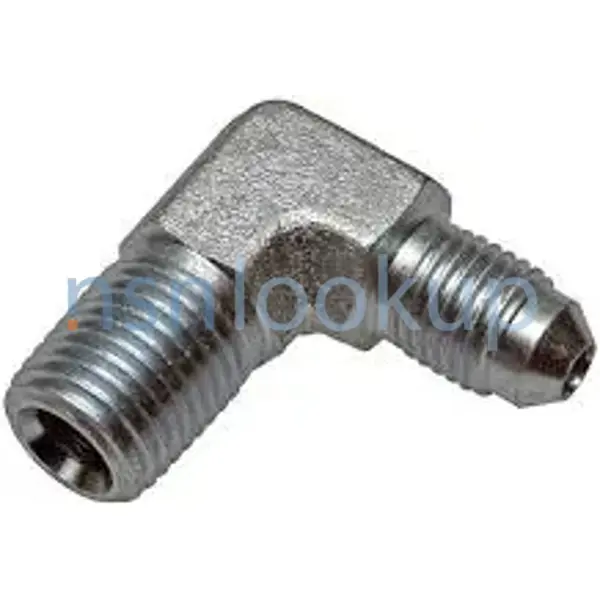

4730-01-016-2531 ELBOW,PIPE TO TUBE 4730010162531 010162531 1/1 — 4730-01-016-2531 Photo 1/1

Marketplace 4730-01-016-2531

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

J514. ELBOW,PIPE TO TUBE 3 EA NS

J5-14 ELBOW,PIPE TO TUBE 6 EA NS

Subscribe to View Vendor Details...

4730-01-016-2531 ELBOW,PIPE TO TUBE 109 EA NS

Subscribe to View Vendor Details...

J514 ELBOW,PIPE TO TUBE 640 EA NS

Subscribe to View Vendor Details...

4730-01-016-2531 ELBOW,PIPE TO TUBE RQST NS

Subscribe to View Vendor Details...

J514 ELBOW,PIPE TO TUBE 416 EA NS

Updated Every Day

4-4CCCTX-S RQST NE

Updated Every Day

4730-01-016-2531 RQST NE

Updated Every Day

4730-01-016-2531 RQST

Updated Every Day

4730-01-016-2531 RQST NE

Restrictions 4730-01-016-2531

4730-01-016-2531 is a Pipe To Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 4730-01-016-2531

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4730-01-016-2531

US Army (A920)
Effective Date:: 1 Apr 2005
Former MOE Rule:: A181
Supplementary Receivers:: AZ; AMC 1 AMSC G IMC Z IMCACTY AZ

US Air Force (FXGC)
Effective Date:: 1 Apr 2005
Former MOE Rule:: FXAX; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC40)
Effective Date:: 1 Apr 2005
Former MOE Rule:: MC01; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Aug 2006

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 May 1997

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Jan 2012

Portugal (ZP01)
Effective Date:: 1 Feb 2013

Greece (ZU01)
Effective Date:: 1 Jun 1994

Turkey (ZW01)
Effective Date:: 1 Dec 2005

Approved Sources 4730-01-016-2531

Part Number
Manufacturer
Status
SAE-J514: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC E
SAE J514 4-4 071602C: 0U583 - Sae International (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
11668926: 02978 - Renk America Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
4-4CCCTX-S: 30780 - Parker-Hannifin Corporation (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
11668926: 19207 - U S Army Tank Automotive Command (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC A
4730010162531: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
94-202413-4-4S: 00624 - Eaton Aeroquip Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
SAE J514 4-4 071602C: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
4-4CCCTX-S: 98441 - Parker Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
J514: 0U583 - Sae International (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
4-4 071602C: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
J514: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
4730010162531: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 4730-01-016-2531

Characteristic
Specifications
FIIG: A080B0
Connection Style [AHNC]: Flared (Tube) 1St End
Connection Style [AHNC]: Plain (Pipe) 2Nd End
Connection Type [AWLS]: Threaded External Pipe 2Nd End
Connection Type [AWLS]: Threaded External Tube 1St End
Flow Angle [CRFY]: 90.0 Degrees
Material Document And Classification [MDCL]: Qq-S-634 Fed Spec Single Material Response Overall Or Qq-S-637 Fed Spec Single Material Response Overall
Material [MATT]: Steel Overall
Nominal Outside Diameter Tube Accommodated [CWFD]: 0.250 Inches 1St End
Nominal Thread Size [CQJX]: 0.250 Inches 2Nd End
Nominal Thread Size [CQJX]: 0.438 Inches 1St End
Nondefinitive Spec/Std Data [ZZZT]: 4C Figure
Leg Length [AHSJ]: 1.060 Inches Nominal 1St End
Leg Length [AHSJ]: 2.030 Inches Nominal 2Nd End
Seat Angle [CQRB]: 37.0 Degrees 1St End
Specification/Standard Data [ZZZK]: 81343-J514 Professional/Industrial Association Standard
Surface Treatment Document And Classification [STDC]: J514 Assn Std Single Treatment Response Overall And Qq-P-416, Cl 3, Ty 1 Fed Spec Single Treatment Response Overall And Qq-Z-325, Ty 2, Cl 2 Fed Spec Single Treatment Response Overall
Thread Class [AAJD]: 2A 1St End
Thread Series Designator [THSD]: Nptf 2Nd End
Thread Series Designator [THSD]: Unf 1St End

Weapon Systems (WSDC) 4730-01-016-2531

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 4730-01-016-2531

Last Stock Position:: 156 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 4730-01-016-2531

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Apr 2021: Department of the Air Force (DF); EA; Subscribe; 1
Feb 2021: US Marine Corps (DM); EA; Subscribe; 1
Feb 2020: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

Similar Supply Items to 4730-01-016-2531

Freight Information 4730-01-016-2531

4730-01-016-2531 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-016-2531 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-016-2531 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-016-2531 is not classified as a special type of cargo when transported by water. 4730-01-016-2531 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 4730-01-016-2531

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box

Procurement History 4730-01-016-2531 3 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M323P2339: 31 May 2023; Subscribe; 317; Subscribe; Subscribe
SPE7M321P3256: 09 Apr 2021; Subscribe; 376; Subscribe; Subscribe
SPE7M416M4788P00001: 10 Sep 2016; Subscribe; 338; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 4730-01-016-2531 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
