4730-00-995-1570

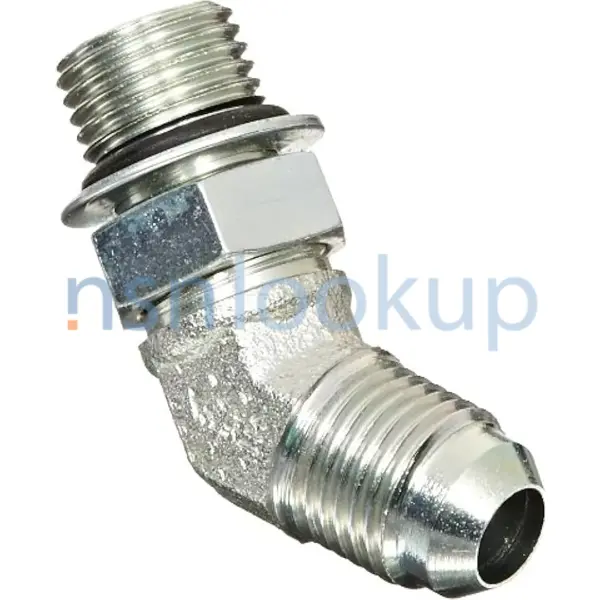

Pipe To Tube Elbow
4730009951570 009951570 MIL-F-18866 8-6 070302CA 8VBTX-S MS51508-B8 2N1288 9402826 MS51508A8
A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Pipe To Tube Elbow
March 2025
32
Marketplace 4730-00-995-1570
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4730-00-995-1570 5+ Documents (More...)
MS51508A8 ELBOW,PIPE TO TUBE 1 EA NS Request Quotation Subscribe to View Vendor Details... 4730-00-995
Quotation Updated Every Day 9402826 RQST NE Updated Every Day 8VBTX-S RQST NE Updated Every Day 4730
MS51500B6 MIL-F MIL-F-18866 TRW291110-2 J514MIL-F-18866 TRW291110-2 J514 MIL-F MIL-F-18866 TRW291110
-6 070302CAZINCJ514SAE J514 8-6 070302CA https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-995-1570
PIPE TO TUBE 500 EA NS Request Quotation MS51508B8 ELBOW,PIPE TO TUBE 88 EA NS Request Quotation MS51508A8
ELBOW,PIPE TO TUBE 296 EA NS Request Quotation Subscribe to View Vendor Details... 2N1288 ELBOW,PIPE
-8S ELBOW,PIPE TO TUBE 100 EA NS Request Quotation MIL-F-18866 ELBOW,PIPE TO TUBE 143 EA NS Request
Quotation MS51508-B8S ELBOW,PIPE TO TUBE https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-995-1570
Pipe To Tube Elbow 4730009951570 009951570 Upgrade 4730-00-995-1570Pipe To Tube Elbow4730009951570
009951570 MIL-F-18866 8-6 070302CA 8VBTX-S MS51508 MS51508B8 ELBOW,PIPE TO TUBE 88 EA NS Request Quotation
Restrictions 4730-00-995-1570
4730-00-995-1570 is a Pipe To Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-995-1570
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-995-1570
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Canada (ZC01)
- Effective Date:
- 1 May 2001
- France (ZF01)
- Effective Date:
- 1 Jul 2013
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1998
- Netherlands (ZN01)
- Effective Date:
- 1 May 1997
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW01)
- Effective Date:
- 1 Jun 1996
Approved Sources 4730-00-995-1570
- Part Number
- Manufacturer
- Status
- MS51508A8
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-F-18866
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 8-6 070302CA
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 8VBTX-S
- 30780 - Parker-Hannifin Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 8VBTX-S
- 98441 - Parker Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8-6 070302CA
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS51508-B8
- 96906 - Military Standards (Active)
- Advisory Reference
- Advisory Reference
- 2N1288
- 11083 - Caterpillar Inc (Active)
- Advisory Reference
- Advisory Reference
- 9402826
- 24617 - General Motors Corp (Active)
- Advisory Reference
- Advisory Reference
- 9402826
- 97907 - Terex Corp (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-995-1570
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared (Tube) 1St End
- Connection Style [AHNC]
- Plain (Pipe) 2Nd End
- Connection Type [AWLS]
- Threaded External Pipe 2Nd End
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Furnished Items And Quantity [TMQY]
- 1 Tube Coupling Nut W/Sleeve
- Flow Angle [CRFY]
- 45.0 Degrees
- Material [MATT]
- Steel Comp 12L14 Overall
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.500 Inches 1St End
- Nominal Pipe Size Accommodated [AAAR]
- 0.375 Inches 2Nd End
- Nominal Thread Size [CQJX]
- 0.375 Inches 2Nd End
- Nominal Thread Size [CQJX]
- 0.750 Inches 1St End
- Leg Length [AHSJ]
- 0.953 Inches Nominal 2Nd End
- Leg Length [AHSJ]
- 0.984 Inches Nominal 1St End
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Specification/Standard Data [ZZZK]
- 96906-Ms51508 Government Standard
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2,Class 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 2A 1St End
- Thread Series Designator [THSD]
- Nptf 2Nd End
- Thread Series Designator [THSD]
- Unf 1St End
Similar Supply Items to 4730-00-995-1570
Freight Information 4730-00-995-1570
4730-00-995-1570 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-995-1570 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-995-1570 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-995-1570 is not classified as a special type of cargo when transported by water. 4730-00-995-1570 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-995-1570
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
