4730-00-989-0574
Tube Union
4730009890574 009890574 P30N
A straight tube fitting capable of being taken apart and reassembled. It permits disconnection and connection of tubing or tube fittings without disturbing the end connections or the rest of the line. View more Tube Union
May 2023
16
Marketplace 4730-00-989-0574
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-989-0574 2+ Documents (More...)
4730-00-989-0574 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-989-0574
Tube Union 4730009890574009890574,P30N P30N A straight tube fitting capable of being taken apart and
www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-375-7237 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-989-0574
Tube Union 4730009890574 009890574,P30N Upgrade for $1 a day Upgrade your Account Upgrade 4730-
Restrictions 4730-00-989-0574
4730-00-989-0574 is a Tube Union that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-989-0574
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-989-0574
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-989-0574
- Part Number
- Manufacturer
- Status
- P30N
- Manufacturer
- 28193 - Henry Technologies, Inc. (Obsolete)
- Original Design
- Original Design
Datasheet 4730-00-989-0574
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Socket (Tube) All Ends
- Connection Type [AWLS]
- Unthreaded Internal Tube All Ends
- Coupling Flange Shape [CQNM]
- Round
- Material [MATT]
- Copper Alloy Overall
- Maximum Operating Pressure [CQGM]
- 350.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 204.0 Deg Celsius Single Response
- Media For Which Designed [MEDA]
- Water-Oil-Gas Single Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 1.625 Inches All Ends
- Nominal Overall Length [CWFR]
- 4.250 Inches
- Reducer Type [ACSP]
- Concentric
- Seat Type [ACSG]
- Gasket
- Special Features [FEAT]
- Both Tubing Wall Thickness At Each End Can Be Compromised

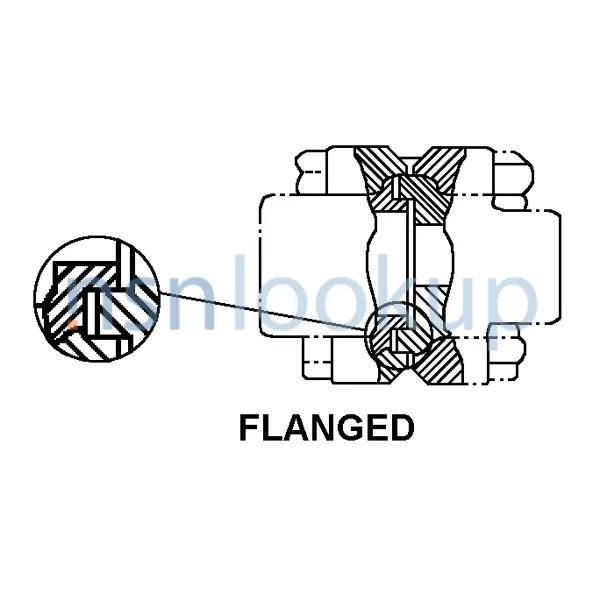

- Style Designator [STYL]
- Flanged
DLA Procurement Analysis 4730-00-989-0574
Management Data 4730-00-989-0574
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-989-0574
Freight Information 4730-00-989-0574
4730-00-989-0574 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-00-989-0574 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-00-989-0574 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-989-0574 is not classified as a special type of cargo when transported by water. 4730-00-989-0574 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-989-0574
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-00-989-0574 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
