4730-00-968-6888

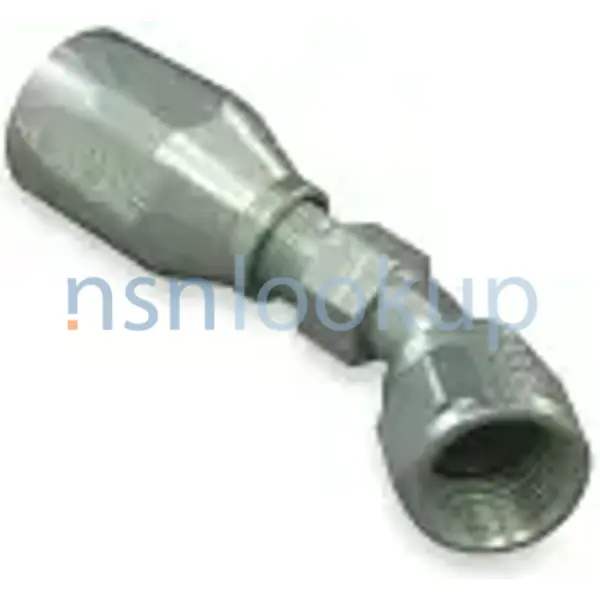

Tube To Hose Elbow
4730009686888 009686888 190265-16S 16C5-16RFJX45 23720-16-16
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube, The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, HOSE; CONNECTOR, MULTIPLE, FLUID PRESSURE LINE; and ELBOW, SWIVEL FLANGE TO HOSE. View more Tube To Hose Elbow
November 2023
21
Marketplace 4730-00-968-6888
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-968-6888 5+ Documents (More...)
ELBOW,TUBE TO HOSE 1 EA NS Request Quotation Subscribe to View Vendor Details... 190265-16S ELBOW
,TUBE TO HOSE 34 EA NS Request Quotation Updated Every Day 23720-16-16 RQST NE Updated Every Day 4730
Restrictions 4730-00-968-6888
4730-00-968-6888 is a Tube To Hose Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-968-6888
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-968-6888
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Coast Guard (C911)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- C001
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GT
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Mar 2017
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1999
- Greece (ZU01)
- Effective Date:
- 1 May 2006
Approved Sources 4730-00-968-6888
- Part Number
- Manufacturer
- Status
- 190265-16S
- Manufacturer
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Primary Buy
- Primary Buy
- 16C5-16RFJX45
- 12190 - Curtiss-Wright Flow Control (Active)
- Secondary Buy
- Secondary Buy
- 23720-16-16
- 87373 - Parker-Hannifin Corporation (Active)
- Secondary Buy
- Secondary Buy
- 23720-16-16
- 98441 - Parker Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-968-6888
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Zinc Overall
- Maximum Operating Pressure [CQGM]
- 800.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 200.0 Deg Fahrenheit Single Response
- Connection Type [AWLS]
- Threaded Internal Tube 1St End
- Connection Type [AWLS]
- Threaded External Hose Gripping 2Nd End
- Connection Style [AHNC]
- Swivel Nut, Flare (Tube) Style 3 Optional End 1St End
- Connection Style [AHNC]
- Gripping Nipple (Nose) 2Nd End
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Nominal Inside Diameter Hose Accommodated [CWDW]
- 0.880 Inches 2Nd End
- Nominal Outside Diameter Hose Accommodated [CWDZ]
- 1.230 Inches 2Nd End
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 1.000 Inches 1St End
- Thread Series Designator [THSD]
- Un 1St End
- Nominal Thread Size [CQJX]
- 1.312 Inches 1St End
- Thread Quantity Per Inch [CMLP]
- 12 1St End
- Thread Class [AAJD]
- 2B 1St End
- Leg Length [AHSJ]
- 1.070 Inches Nominal 1St End
- Leg Length [AHSJ]
- 3.740 Inches Nominal 2Nd End
- Flow Angle [CRFY]
- 45.0 Degrees
