4730-00-946-5338

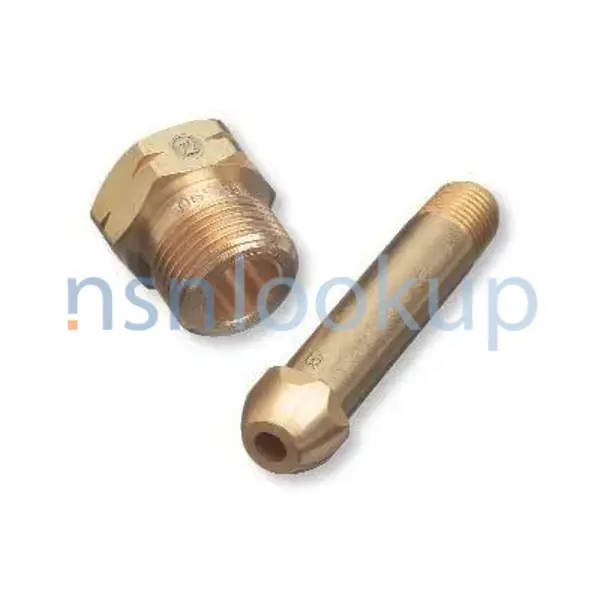

Tube Coupling Inverted Nut
4730009465338 009465338 93 0553-2033 N74 7010049-007 332-1061
An externally threaded fastening device which has an internal or external seat, designed to mate with the seat of an internally threaded tube fitting for the purpose of securing the tube to the fitting to form a leakproof connection. View more Tube Coupling Inverted Nut
November 2023
19
Marketplace 4730-00-946-5338
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4730-00-946-5338 5+ Documents (More...)
to View Vendor Details... 93 INVERTED NUT,TUBE COUPLING 10 EA NS Request Quotation N74 INVERTED NUT,
4730-00-946-5338 RQST Updated Every Day 4730-00-946-5338 RQST NE Related Documents 4730-00-946-5338
/fsg-65/fsc-6515/uk
8405/de 8405-12-332-1061 Day 8405-12-332-1061 RQST https//www.nsnlookup.com /fsg-65/fsc-6515/uk 6515
Every Day 6515-99-332-1061 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-946-5338 Tube Coupling
/fsg-84/fsc-8405/de
/fsg-84/fsc-8405/de 8405-12-332-1061 /fsg-84/fsc-8405/de 8405-12-332-1061 /fsg-84/fsc-8405/de 8405-12
-332-1061 Day 8405-12-332-1061 RQST https//www.nsnlookup.com /fsg-65/fsc-6515/uk 6515-99-332-1061 Implant
Updated Every Day 5935-01-332-1061 RQST Updated Every Day 5935-01-332-1061 RQST NE Related Documents
5935-01-332-1061 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-332-1061
Restrictions 4730-00-946-5338
4730-00-946-5338 is a Tube Coupling Inverted Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-946-5338
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-946-5338
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CT
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Poland (WP01)
- Effective Date:
- 1 Nov 2006
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-946-5338
- Part Number
- Manufacturer
- Status
- 93
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
- 0553-2033
- 00741 - Messer Llc (Active)
- Secondary Buy
- Secondary Buy
- N74
- 52929 - Superior Products, Llc. (Active)
- Secondary Buy
- Secondary Buy
- 7010049-007
- 12436 - Bae Systems Information And (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 332-1061
- 13499 - Rockwell Collins, Inc. (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-00-946-5338
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-B
- Casehardening Indicator [AASG]
- Not Casehardened
- Fabrication Method [AARN]
- Bar Stock, Machined
- End Item Identification [AGAV]
- Grumman Aerospace Corp A10 Aircraft
- Material Document And Classification [MDCL]
- Qq-B-626, Alloy 360 Fed Spec Single Material Response
- Material [MATT]
- Copper Alloy 360
- Seat Angle In Deg [AJFY]
- 45.0
- Screw Thread Series Designator [AJYP]
- Ngo
- Smallest Inside Diameter [BSPX]
- 0.572 Inches Nominal
- Overall Length [ABHP]
- 1.135 Inches Nominal
- Tube Outside Diameter For Which Designed [ACSV]
- 0.562 Inches Nominal
- Width Across Flats [ASDB]
- 1.125 Inches Nominal
- Style Designator [STYL]
- Inverted Nut, Tube, Flare
- Thread Direction [AAJF]
- Left-Hand
- Thread Size [ABUJ]
- 0.960-14
Weapon Systems (WSDC) 4730-00-946-5338
DLA Procurement Analysis 4730-00-946-5338
- Last Stock Position:
- 10 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-946-5338
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-946-5338
Freight Information 4730-00-946-5338
4730-00-946-5338 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 4730-00-946-5338 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 4730-00-946-5338 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 4730-00-946-5338 is not classified as a special type of cargo when transported by water. 4730-00-946-5338 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-946-5338
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4730-00-946-5338 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
