4730-00-945-2546
Fluid Passage Bolt
4730009452546 009452546 SAE-AS18280 MS21941-10H6
A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE. View more Fluid Passage Bolt
Managed by United States
NSN Created on 23 Mar 1966
Data Last Changed
November 2023
November 2023
NATO Update Count
15
15
NATO Data Quality
Marketplace 4730-00-945-2546
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-945-2546 5+ Documents (More...)
SAE-AS18280 MS21941-10H6 A boltlike item having a concentric hole along the longitudinal centerline
(Identification) 1/3 NSN 4730-00-945-2546 (Identification) 2/3 NSN 4730-00-945-2546 (Identification
MS21941-10H6 BOLT 1 EA NS Request Quotation Subscribe to View Vendor Details... 4730-00-945-2546 BOLT
(Identification) 1/3 NSN 4730-00-945-2546 (Identification) 2/3 NSN 4730-00-945-2546 (Identification
MS21941-10H6 BOLT 1 EA NS Request Quotation Subscribe to View Vendor Details... 4730-00-945-2546 BOLT
ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 Quotation SAE-AS18280 ELBOW SAE AS18280 ELBOW SAE AS18280
ELBOW SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 630-5466 Tube Elbow 4730016305466
016305466 /fsg-47/fsc-4730/us 4730 SAE AS18280 ELBOW,TUBE SAE AS18280 -5468 Tube Elbow 4730016305468
ELBOW SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 630-5466 Tube Elbow 4730016305466
016305466 /fsg-47/fsc-4730/us 4730 SAE AS18280 ELBOW,TUBE SAE AS18280 -5468 Tube Elbow 4730016305468
ELBOW SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 Quotation SAE-AS18280 ELBOW SAE AS18280
ELBOW SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 630-5466 Tube Elbow 4730016305466
016305466 /fsg-47/fsc-4730/us 4730 SAE AS18280 ELBOW,TUBE SAE AS18280 -5468 Tube Elbow 4730016305468
ELBOW SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 630-5466 Tube Elbow 4730016305466
016305466 /fsg-47/fsc-4730/us 4730 SAE AS18280 ELBOW,TUBE SAE AS18280 -5468 Tube Elbow 4730016305468
ELBOW,TUBE SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 NS SAE-AS18280 ELBOW,TUBE 107
RQST NS Request Quotation SAE-AS18280 /fsg-47/fsc-4730/us 4730 SAE AS18280 ELBOW SAE AS18280 ELBOW,TUBE
4730 SAE AS18280 ELBOW,TUBE SAE AS18280 -5468 Tube Elbow 4730016305468 https//www.nsnlookup.com /fsg
RQST NS Request Quotation SAE-AS18280 /fsg-47/fsc-4730/us 4730 SAE AS18280 ELBOW SAE AS18280 ELBOW,TUBE
4730 SAE AS18280 ELBOW,TUBE SAE AS18280 -5468 Tube Elbow 4730016305468 https//www.nsnlookup.com /fsg
ELBOW SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 ELBOW ELBOW,TUBE SAE AS18280 ELBOW
ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 NS SAE-AS18280 ELBOW,TUBE 107 EA NS Request other ,
ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 Quotation SAE-AS18280 ELBOW SAE AS18280 ELBOW SAE AS18280
ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 NS SAE-AS18280 ELBOW,TUBE 107 EA NS Request other ,
ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 Quotation SAE-AS18280 ELBOW SAE AS18280 ELBOW SAE AS18280
Restrictions 4730-00-945-2546
4730-00-945-2546 is a Fluid Passage Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-945-2546
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-945-2546
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-945-2546
- Part Number
- Manufacturer
- Status
- SAE-AS18280
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- MS21941-10H6
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- MS21941-10H6
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Original Design
- Original Design
- MS21941-10H6
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-945-2546
- Characteristic
- Specifications
- FIIG
- Specifications
- A121A0
- Distance From First Radial Hole Center To End Of Bolt [BBLB]
- 3.103 Inches Nominal
- Distance From Second Radial Hole Center To End Of Bolt [BBLC]
- 1.917 Inches Nominal

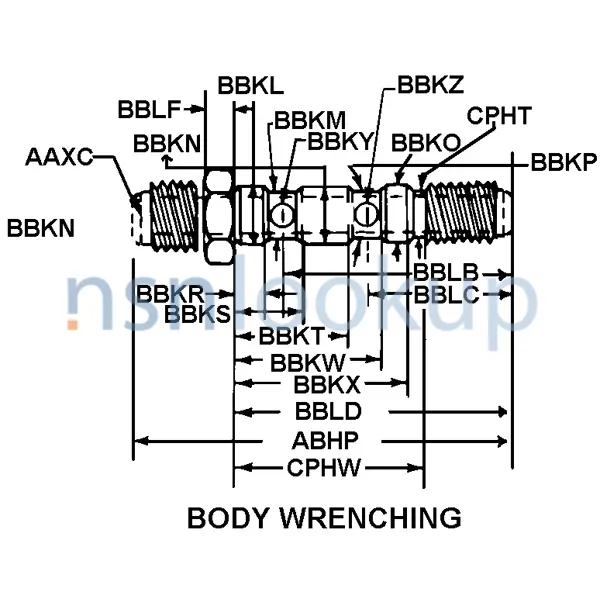

- Body Style [AAQL]
- Body Wrenching
- Concentric Hole Diameter [AAXC]
- 0.422 Inches Nominal
- Fifth Diameter From Wrenching Feature [BBKQ]
- 0.811 Inches Nominal
- First Diameter From Wrenching Feature [BBKL]
- 0.811 Inches Nominal
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Seat Angle [CQPR]
- 12.0 Degrees Nominal
- First End Style Designator [ACKN]
- Flareless
- First End Nominal Thread Size [CQYM]
- 0.562 Inches
- First End Thread Class [ACLK]
- 3A
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Length [ATKZ]
- 1.156 Inches Nominal
- First End Thread Series Designator [CQMM]
- Unjf
- First End Thread Quantity Per Inch [CQKK]
- 18
- First Radial Fluid Hole Diameter [BBKY]
- 0.300 Inches Nominal
- Fourth Diameter From Wrenching Feature [BBKP]
- 0.740 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-225/6,T4 Fed Spec Single Material Response
- Material [MATT]
- Aluminum Alloy 2024
- Length From Bearing Surface Of Wrenching Feature To Bolt End [BBLD]
- 3.737 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Fifth Diameter [BBKX]
- 2.404 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of First Diameter [BBKR]
- 0.377 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Fourth Diameter [BBKW]
- 2.012 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Second Diameter [BBKS]
- 0.891 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Sixth Diameter [CPHW]
- 2.581 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Third Diameter [BBKT]
- 1.563 Inches Nominal
- Pressure Rating [BGST]
- 3000.000 Pounds Per Square Inch Nominal
- Second Diameter From Wrenching Feature [BBKM]
- 0.740 Inches Nominal
- Second End Connection Type [ACLS]
- Threaded External Tube
- Second End Nominal Thread Size [CRNB]
- 0.875 Inches
- Second End Seat Angle [CRCN]
- 12.0 Degrees Nominal
- Second End Style Designator [ACLT]
- Flareless
- Second End Thread Class [ACMR]
- 3A
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Thread Length [ATLF]
- 0.625 Inches Nominal
- Second End Thread Quantity Per Inch [CRMX]
- 14
- Second End Thread Series Designator [CRPF]
- Unjf
- Second Radial Fluid Hole Diameter [BBKZ]
- 0.300 Inches Nominal
- Sixth Diameter From Wrenching Feature [CPHT]
- 0.480 Inches Nominal
- Overall Length [ABHP]
- 4.799 Inches Nominal
- Width Across Flats [ASDB]
- 1.121 Inches Minimum And 1.128 Inches Maximum
- Wrenching Feature Height [BBLF]
- 0.437 Inches Nominal
- Wrenching Feature Style [BBDF]
- Hexagon
- Surface Treatment [SFTT]
- Anodize
- Third Diameter From Wrenching Feature [BBKN]
- 0.811 Inches Nominal
