4730-00-933-0942

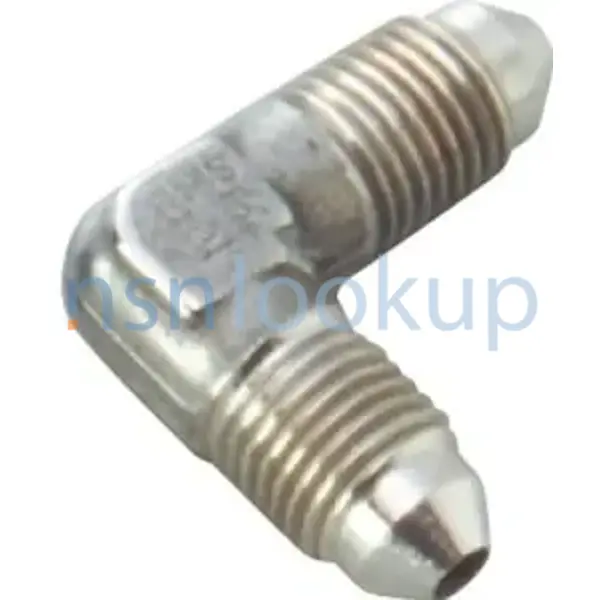

Tube Elbow
4730009330942 009330942 AS1034-0404 MS24401-4 AN821-4C
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Tube Elbow
Managed by United States
NSN Created on 1 Mar 1967
Data Last Changed
November 2023
November 2023
NATO Update Count
50
50
NATO Data Quality
Marketplace 4730-00-933-0942
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-933-0942 5+ Documents (More...)
AS1034-0404 AN821-4C MS24401-4 A fitting that forms an angle of less than 180 degrees (3.141 radians
AN821-4C ELBOW,TUBE 48 EA NS Request Quotation MS24401-4 ELBOW,TUBE 4 EA NS Request Quotation Subscribe
MS24401-4 ELBOW 4 EA NS Request Quotation Updated Every Day 4730-00-933-0942 RQST NE Updated Every Day
AN821-4C ELBOW,TUBE 48 EA NS Request Quotation MS24401-4 ELBOW,TUBE 4 EA NS Request Quotation Subscribe
MS24401-4 ELBOW 4 EA NS Request Quotation Updated Every Day 4730-00-933-0942 RQST NE Updated Every Day
AN821-4C ISOLATOR,FAN MOTOR 12 EA NS Request Quotation Subscribe to View Vendor Details...
AN821-4C ISOLATOR,FAN MOTOR 48 EA NS Request Quotation MS24401-4 ISOLATOR,FAN MOTOR 4 EA NS Request Quotation
MS24401-4 ISOLATOR,FAN MOTOR 112 EA NS Request Quotation Subscribe to View Vendor Details...
AN821-4C ISOLATOR,FAN MOTOR 48 EA NS Request Quotation MS24401-4 ISOLATOR,FAN MOTOR 4 EA NS Request Quotation
MS24401-4 ISOLATOR,FAN MOTOR 112 EA NS Request Quotation Subscribe to View Vendor Details...
AS4841 AS1034 AN821-4 A fitting that AS1034-0404 AS4841 AS1034 AN821-4 A fitting that forms an
AS4841 AS1034 AN821-4 A fitting that forms an angle of less that 180 degrees (3.141 radians AS1034-0404
Tube Elbow 4730009330942 009330942 Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-933
AS4841 AS1034 AN821-4 A fitting that forms an angle of less that 180 degrees (3.141 radians AS1034-0404
Tube Elbow 4730009330942 009330942 Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-933
Upgrade your Account Upgrade 4730-00-231-3989Tube To Boss Elbow4730002313989 002313989 SAE-AS4841 AS1034-0404
AS1034-0404 ELBOW,TUBE TO BOSS 79 EA NS Request Quotation AS1034 ELBOW,TUBE TO BOSS 380 EA NS Request
Tube Elbow 4730009330942 009330942 Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-933
AS1034-0404 ELBOW,TUBE TO BOSS 79 EA NS Request Quotation AS1034 ELBOW,TUBE TO BOSS 380 EA NS Request
Tube Elbow 4730009330942 009330942 Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-933
AS1034 AN821-4 A fitting that forms an angle of less https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-933-0942
Tube Elbow 4730009330942 009330942 AS1034-0404 AS1034-0404 ELBOW,TUBE TO BOSS 79 EA NS Request
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-720-3961 Tube To Boss Elbow 4730007203961 AS1034-0404
Tube Elbow 4730009330942 009330942 AS1034-0404 AS1034-0404 ELBOW,TUBE TO BOSS 79 EA NS Request
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-720-3961 Tube To Boss Elbow 4730007203961 AS1034-0404
Restrictions 4730-00-933-0942
4730-00-933-0942 is a Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-933-0942
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-933-0942
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Coast Guard (C911)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- C001
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 May 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 2005
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jan 2001
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-933-0942
- Part Number
- Manufacturer
- Status
- AS1034-0404
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MS24401-4
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-4C
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-933-0942
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material Document And Classification [MDCL]
- Qq-S-763 Fed Spec 2Nd Material Response Overall
- Material [MATT]
- Steel Overall Or Steel Corrosion Resisting Overall
- Media For Which Designed [MEDA]
- Fluid Single Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.250 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.438 Inches All Ends
- Leg Length [AHSJ]
- 0.891 Inches Nominal All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Specification/Standard Data [ZZZK]
- 96906-Ms24401 Government Standard
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 1,Cl 2 Fed Spec 1St Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall Or Passivate Overall
- Thread Class [AAJD]
- 3A All Ends
- Thread Series Designator [THSD]
- Unjf All Ends
Weapon Systems (WSDC) 4730-00-933-0942
DLA Procurement Analysis 4730-00-933-0942
- Last Stock Position:
- 447 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-933-0942
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-933-0942
4730-12-314-1975 4730-21-860-1107 4730-17-051-9708 4730-12-701-8744 4730-12-308-7951 4730-12-302-8463 4730-12-350-4335 4730-66-142-5702 4730-99-702-3467 4730-99-309-4668 4730-12-351-8782 4730-12-373-9304 4730-21-895-3510 4730-12-173-3200 4730-99-993-9263 4730-99-980-9292 4730-12-362-2247 4730-12-189-0602
Freight Information 4730-00-933-0942
4730-00-933-0942 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-933-0942 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-933-0942 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-933-0942 is not classified as a special type of cargo when transported by water. 4730-00-933-0942 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-933-0942
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4730-00-933-0942 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
