4730-00-925-9587
Spool Piece
4730009259587 009259587 MILF3268 M326801N
A straight cut length of pipe fabricated with drilled and faced flanges on each end. It may have steel lifting rings or ears welded longitudinally to the pipe and is generally used for submerged pipeline, fuel loading line, and the like. View more Spool Piece
May 2023
3
Marketplace 4730-00-925-9587
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-925-9587 3+ Documents (More...)
NE FedMall Updated Every Day 4730-00-925-9587 RQST NE Updated Every Day 4730-00-925-9587 RQST Updated
Every Day 4730-00-925-9587 RQST NE Related Documents 4730-00-925-9587 4+ Documents ( More... ) https
Spool Piece 4730009259587 009259587,MILF3268 United States (US) 4. 4730-00-925-9587 Marketplace
Restrictions Approved Sources Datasheet Management NE FedMall Updated Every Day 4730-00-925-9587 RQST
Spool Piece 4730009259587 009259587,MILF3268 fsc-5360/fr 5360-14-246-3573 Compression Helical Spring
Helical Spring5360997002514 997002514 MBEU7413 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-925-9587
Restrictions 4730-00-925-9587
4730-00-925-9587 is a Spool Piece that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4730-00-925-9587
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJNHD
Approved Sources 4730-00-925-9587
- Part Number
- Manufacturer
- Status
- M326801N
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MILF3268
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4730-00-925-9587
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-S
- End Bolt Circle Diameter [CGMC]
- 9.500 Inches Nominal
- End Bolt Hole Diameter [CGNM]
- 0.875 Inches Nominal
- End Bolt Hole Quantity [CGNL]
- 8
- End Outside Diameter [BCCH]
- 11.000 Inches Nominal

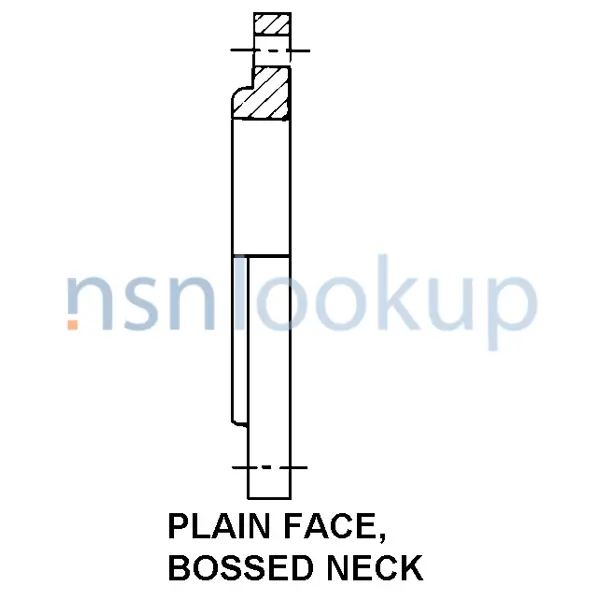

- End Style [ABQK]
- Plain Face, Bossed Neck
- End Thickness [AXPW]
- 1.000 Inches Nominal
- Hole Diameter [AAUB]
- 2.000 Inches Nominal
- Material [MATT]
- Steel
- Nominal Pipe Size Designation [AAGN]
- 6.000 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 6 Size
- Lifting Facility [BBMW]
- Ear
- Quantity [NMBR]
- 2
- Overall Length [ABHP]
- 24.000 Inches Nominal
- Stock Thickness [ACVW]
- 1.000 Inches Nominal
DLA Procurement Analysis 4730-00-925-9587
Management Data 4730-00-925-9587
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-925-9587
Freight Information 4730-00-925-9587
4730-00-925-9587 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052175. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-00-925-9587 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29920 which rates the freight between FCL and LCL. 4730-00-925-9587 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-925-9587 is not classified as a special type of cargo when transported by water. 4730-00-925-9587 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4730-00-925-9587 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
