4730-00-922-9635
Fluid Pressure Line Multiple Connector
4730009229635 009229635 SAE-AS18280 MS21945W4H AS18280 AS21945 MS21945-4H
A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S). View more Fluid Pressure Line Multiple Connector
Managed by United States
NSN Created on 20 Jan 1966
Data Last Changed
November 2023
November 2023
NATO Update Count
15
15
NATO Data Quality
Marketplace 4730-00-922-9635
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
AS18280 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 532 EA NS
MS21945W4H CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 286 EA NS
AS21945 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 381 EA NS
MS21945-4H CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 429 EA NS
Updated Every Day 4730-00-922-9635 RQST NE
Updated Every Day 4730-00-922-9635 RQST
Updated Every Day 4730-00-922-9635 RQST NE
Related Documents 4730-00-922-9635 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-47/fsc-4730/us
/fsg-47/fsc-4730/us
4730-00-922-9635 Fluid Pressure Line Multiple Connector
SAE-AS18280 MS21945W4H AS18280 AS21945 MS21945-4H A device of varying shapes with two or more connections
MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other SAE-AS18280
AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other SAE-AS18280 A tube fitting
MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other SAE-AS18280
AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other SAE-AS18280 A tube fitting
https//www.nsnlookup.com
/fsg-47/fsc-4730/us
/fsg-47/fsc-4730/us
4730-00-580-6131 Fluid Pressure Line Multiple Connector
SAE-AS18280 MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other
SAE-AS18280 A tube fitting with external threads other SAE-AS18280 https//www.nsnlookup.com /fsg-47/
Fluid Pressure Line Multiple Connector SAE-AS18280 MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube
SAE-AS18280 A tube fitting with external threads other SAE-AS18280 https//www.nsnlookup.com /fsg-47/
Fluid Pressure Line Multiple Connector SAE-AS18280 MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube
https//www.nsnlookup.com
/fsg-47/fsc-4730/us
/fsg-47/fsc-4730/us
4730-00-585-7784 Fluid Pressure Line Multiple Connector
A tube fitting with external threads other SAE-AS18280 Fluid Pressure Line Multiple Connector SAE-AS18280
MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730
-00-922-9635 Fluid Pressure Line Multiple Connector MS21945W4H AS18280AS21945 MS21945-4H A device of
MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730
-00-922-9635 Fluid Pressure Line Multiple Connector MS21945W4H AS18280AS21945 MS21945-4H A device of
https//www.nsnlookup.com
/fsg-47/fsc-4730/us
/fsg-47/fsc-4730/us
4730-00-618-5066 Fluid Pressure Line Multiple Connector
SAE AS18280 A tube fitting with external threads other SAE-AS18280 https//www.nsnlookup.com /fsg-47/fsc
SAE-AS18280 MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other
SAE-AS18280 https//www.nsnlookup.com /fsg-47/fsc- https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-
SAE-AS18280 MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other
SAE-AS18280 https//www.nsnlookup.com /fsg-47/fsc- https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-
ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 Quotation SAE-AS18280 ELBOW SAE AS18280 ELBOW SAE AS18280
ELBOW SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 630-5466 Tube Elbow 4730016305466
016305466 /fsg-47/fsc-4730/us 4730 SAE AS18280 ELBOW,TUBE SAE AS18280 -5468 Tube Elbow 4730016305468
ELBOW SAE AS18280 ELBOW,TUBE RQST NS Request Quotation SAE-AS18280 630-5466 Tube Elbow 4730016305466
016305466 /fsg-47/fsc-4730/us 4730 SAE AS18280 ELBOW,TUBE SAE AS18280 -5468 Tube Elbow 4730016305468
Restrictions 4730-00-922-9635
4730-00-922-9635 is a Fluid Pressure Line Multiple Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-922-9635
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-922-9635
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-922-9635
- Part Number
- Manufacturer
- Status
- SAE-AS18280
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- MS21945W4H
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS18280
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS21945
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS21945-4H
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS21945-4H
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS21945W4H
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS18280
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS21945
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete

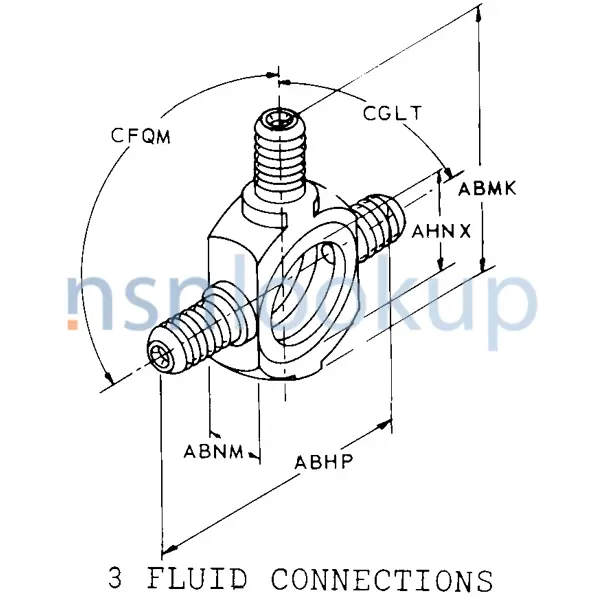

Datasheet 4730-00-922-9635
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-G
- Bolt Hole Diameter [AHNX]
- 0.8125 Inches Nominal
- Bolt Hole Flats Serrations [CGLQ]
- Not Provided
- Bolt Hole Fluid Passage [CGLR]
- Provided
- Connection Style [AHNC]
- Flareless
- Deg Between Outlets [CFQM]
- 90.0
- Fluid Connection Quantity [CGLN]
- 3
- Fluid Conveyance Type And Size For Which Designed [CGLP]
- 1/4 In. Od Tube
- Material [MATT]
- Aluminum Alloy
- Seat Angle In Deg [AJFY]
- 12.0
- Seat Radius [AJFZ]
- 12.000 Inches Nominal
- Seat [BJHZ]
- Included
- Screw Thread Series Designator [AJYP]
- Unjf First Connection
- Second Deg Between Outlets [CGLT]
- 90.0
- Overall Length [ABHP]
- 2.686 Inches Nominal
- Overall Width [ABMK]
- 2.172 Inches Nominal
- Style Designator [STYL]
- 3 Fluid Connections
- Surface Treatment [SFTT]
- Anodize
- Thread Class [AAJD]
- 3A
- Thickness [ABNM]
- 1.188 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Provision [AFEW]
- Threaded
- Thread Size [ABUJ]
- 7/16 In.-20
Weapon Systems (WSDC) 4730-00-922-9635
DLA Procurement Analysis 4730-00-922-9635
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-922-9635
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-922-9635
4730-14-222-2211 4730-27-051-9779 4730-99-712-8039 4730-14-460-2079 4730-14-389-8458 4730-32-085-4269 4730-41-001-4737 4730-66-026-5180 4730-99-104-3757 4730-14-512-5869 4730-14-353-5951 4730-27-007-9244 4730-14-552-7354 4730-12-180-1845 4730-14-428-5108 4730-17-104-8144 4730-15-118-8266 4730-14-346-3030
Freight Information 4730-00-922-9635
4730-00-922-9635 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052175. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-00-922-9635 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29920 which rates the freight between FCL and LCL. 4730-00-922-9635 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-922-9635 is not classified as a special type of cargo when transported by water. 4730-00-922-9635 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-922-9635
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x -- W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
