4730-00-922-1379
Packing Nut
4730009221379 009221379 A51H20570-11
An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE. View more Packing Nut
May 2023
8
Marketplace 4730-00-922-1379
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-922-1379 1+ Documents (More...)
Every Day 4730-00-922-1379 RQST NE Related Documents 4730-00-922-1379 1+ Documents ( More... ) https
//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-922-1379 Packing Nut 4730009221379009221379 A51H20570
Restrictions 4730-00-922-1379
4730-00-922-1379 is a Packing Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4730-00-922-1379
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
Approved Sources 4730-00-922-1379
- Part Number
- Manufacturer
- Status
- A51H20570-11
- Manufacturer
- 61174 - Northrop Grumman Systems Corporation (Active)
- Original Design
- Original Design
- A51H20570-11
- 26512 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A51H20570-11
- 79RG9 - Northrop Grumman Systems Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-922-1379
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-E
- Casehardening Indicator [AASG]
- Not Casehardened
- Material Hardness Rating [ALME]
- 38.0 Rockwell C Minimum And 45.0 Rockwell C Maximum
- Material [MATT]
- Steel Comp 630
- Largest Inside Diameter [AGRU]
- 0.562 Inches Nominal
- Length To Shoulder [BRQL]
- 0.625 Inches Nominal
- Major Unthreaded Outside Diameter [CFQG]
- 0.922 Inches Nominal
- Screw Thread Location [BBMM]
- External
- Screw Thread Series Designator [AJYP]
- Unef
- Smallest Inside Diameter [BSPX]
- 0.312 Inches Nominal
- Overall Length [ABHP]
- 0.938 Inches Nominal
- Special Features [FEAT]
- Outer Periphery Of Hub Grooved,3/4 In. Od By 3/16 In. W,Located 3/32 In. From Groove Edge To Hub End
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.281 Inches Nominal
- Thread Direction [AAJF]
- Left-Hand
- Thread Size [ABUJ]
- 1-1/16 In-18
- Width Across Flats [ASDB]
- 0.625 Inches Nominal
- Style Designator [STYL]

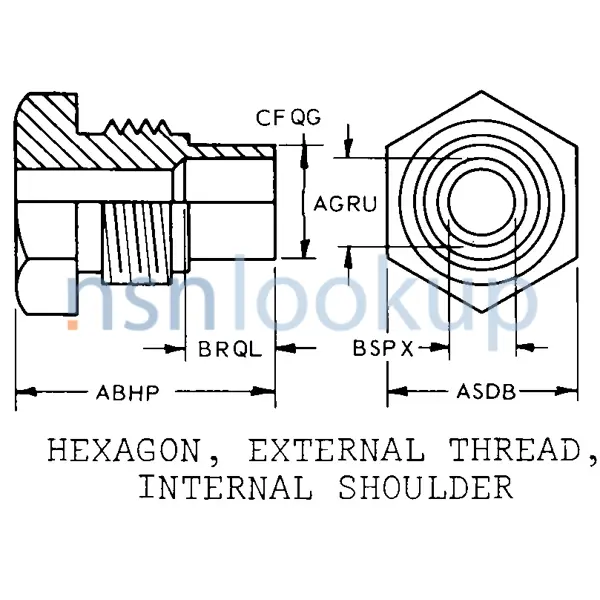

- Hexagon, External Thread, Internal Shoul Der
Weapon Systems (WSDC) 4730-00-922-1379
DLA Procurement Analysis 4730-00-922-1379
Management Data 4730-00-922-1379
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-922-1379
Freight Information 4730-00-922-1379
4730-00-922-1379 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 4730-00-922-1379 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 4730-00-922-1379 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 4730-00-922-1379 is not classified as a special type of cargo when transported by water. 4730-00-922-1379 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4730-00-922-1379 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
