4730-00-886-8518
Packing Nut
4730008868518 008868518 10-37005-201 6813005
An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE. View more Packing Nut
November 2023
25
Marketplace 4730-00-886-8518
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-886-8518 1+ Documents (More...)
United States (US) 4. 4730-00-886-8518 Marketplace Restrictions Approved Sources Datasheet Management
PACKING NUT 44 EA NS Request Quotation Subscribe to View Vendor Details... 10-37005-201 PACKING
Restrictions 4730-00-886-8518
4730-00-886-8518 is a Packing Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-886-8518
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-886-8518
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Oct 1996
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
Approved Sources 4730-00-886-8518
- Part Number
- Manufacturer
- Status
- 10-37005-201
- Manufacturer
- 77820 - Amphenol Corp (Active)
- Primary Buy
- Primary Buy
- 6813005
- 63005 - Rolls-Royce Corporation (Active)
- Secondary Buy
- Secondary Buy
- 6813005
- 73342 - Allison Transmission Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-886-8518
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-E
- Casehardening Indicator [AASG]
- Not Casehardened
- Material [MATT]
- Aluminum Alloy
- Length To Shoulder [BRQL]
- 0.938 Inches Nominal
- Major Unthreaded Outside Diameter [CFQG]
- 1.250 Inches Nominal
- Screw Thread Location [BBMM]
- Internal
- Screw Thread Series Designator [AJYP]
- Unef
- Seat Angle In Deg [AJFY]
- 15.0
- Smallest Inside Diameter [BSPX]
- 0.812 Inches Nominal
- Overall Length [ABHP]
- 0.984 Inches Nominal
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.438 Inches Nominal
- Thread Size [ABUJ]
- 1-1/8-18

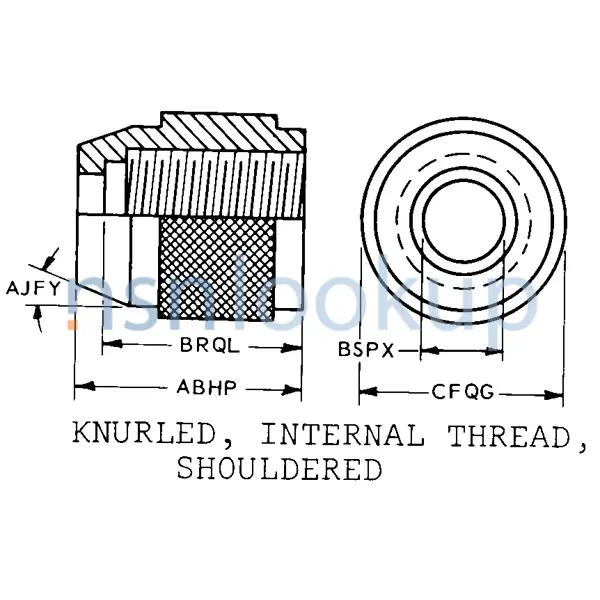

- Style Designator [STYL]
- Knurled, Internal Thread, Shouldered
Weapon Systems (WSDC) 4730-00-886-8518
DLA Procurement Analysis 4730-00-886-8518
- Last Stock Position:
- 7 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-886-8518
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Jan 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 5310
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 5310
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-886-8518
Freight Information 4730-00-886-8518
4730-00-886-8518 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 4730-00-886-8518 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 4730-00-886-8518 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 4730-00-886-8518 is not classified as a special type of cargo when transported by water. 4730-00-886-8518 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-886-8518
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-00-886-8518 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- M
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
