4730-00-857-3228
Pipe Swing Joint
4730008573228 008573228 3730-0101 C5-45-2723 30 1010 1701-2723-100 REV A
A metallic connector designed to join two lengths of pipe and/or pipe fittings in a pipeline to permit swinging or turning at one or more joints. Each joint permits turning on its axis on one plane. View more Pipe Swing Joint
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
12
12
NATO Data Quality
Marketplace 4730-00-857-3228
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-857-3228 5+ Documents (More...)
3730-0101 C5-45-2723 30 1010 1701-2723-100 REV A A metallic connector designed to join two lengths of
... 1010 SWING JOINT,PIPE 15 EA NS Request Quotation Subscribe to View Vendor Details... 30 SWING JOINT
Quotation Subscribe to View Vendor Details... 1010 SWING JOINT,PIPE 7 EA NS Request Quotation 30 SWING
... 1010 SWING JOINT,PIPE 15 EA NS Request Quotation Subscribe to View Vendor Details... 30 SWING JOINT
Quotation Subscribe to View Vendor Details... 1010 SWING JOINT,PIPE 7 EA NS Request Quotation 30 SWING
Germany (DE) 4. 8315-12-337-1010 Marketplace Restrictions Approved Sources Datasheet Management Open
RQST Updated Every Day 8315-12-337-1010 RQST NE Related Documents 8315-12-337-1010 5+ Documents ( More
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-857-3228 Pipe Swing Joint 4730008573228 008573228
RQST Updated Every Day 8315-12-337-1010 RQST NE Related Documents 8315-12-337-1010 5+ Documents ( More
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-857-3228 Pipe Swing Joint 4730008573228 008573228
https//www.nsnlookup.com
/fsg-61/fsc-6105/no
/fsg-61/fsc-6105/no
6105-25-142-1010 Verschlusskapp 6105251421010 251421010
Verschlusskapp 6105251421010251421010 61.0333. 10 30 7561.0333.10 30 75 Managed by Norway NSN Created
/fsg-61/fsc-6105/no 6105-25-142-1010 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-857-3228 Pipe
Swing Joint 4730008573228 008573228 PIPE 7 EA NS Request Quotation 30 SWING https// https//www.nsnlookup.com
/fsg-61/fsc-6105/no 6105-25-142-1010 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-857-3228 Pipe
Swing Joint 4730008573228 008573228 PIPE 7 EA NS Request Quotation 30 SWING https// https//www.nsnlookup.com
RQST NE Updated Every Day 4820-12-363-1010 RQST Updated Every Day 4820-12-363-1010 RQST NE Related Documents
4820-12-363-1010 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-48/fsc-4820/de 4820-12-363-1010
/www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-857-3228 Pipe Swing Joint 4730008573228 008573228 SWING
4820-12-363-1010 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-48/fsc-4820/de 4820-12-363-1010
/www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-857-3228 Pipe Swing Joint 4730008573228 008573228 SWING
RQST NE Updated Every Day 6145-38-001-1010 RQST Updated Every Day 6145-38-001-1010 RQST NE Related Documents
6145-38-001-1010 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6145/ee 6145-38-001-1010
4730008573228 008573228 3228 Pipe Swing Joint 4730008573228008573228 SWING https//www.nsnlookup.com
6145-38-001-1010 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6145/ee 6145-38-001-1010
4730008573228 008573228 3228 Pipe Swing Joint 4730008573228008573228 SWING https//www.nsnlookup.com
Restrictions 4730-00-857-3228
4730-00-857-3228 is a Pipe Swing Joint that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-857-3228
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-857-3228
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AJBD
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
Approved Sources 4730-00-857-3228
- Part Number
- Manufacturer
- Status
- C5-45-2723
- Manufacturer
- 81361 - Edgewood Chemical Biological Center (Active)
- Source Control
- Source Control
- 3730-0101
- 9H113 - Dover Resources Inc Dba Opw (Active)
- Primary Buy
- Primary Buy
- C5-45-2723
- 27742 - All-Bann Enterprises Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 30
- 71454 - Fmc Technologies Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1010
- 09310 - Syltone Industries Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- C5-45-2723
- 71454 - Fmc Technologies Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1701-2723-100 REV A
- 06QD6 - Slate Enterprises Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- C5-45-2723
- 06QD6 - Slate Enterprises Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-857-3228
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Bearing Type [BYDT]
- Annular Ball, Nonremovable
- Connection Style [AHNC]
- Plain (Pipe) All Ends
- Connection Type [AWLS]
- Threaded Internal Pipe All Ends
- Material [MATT]
- Steel Comp 316 Overall
- Maximum Operating Pressure [CQGM]
- 500.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Water Single Response
- Nominal Pipe Size Accommodated [AAAR]
- 1.000 Inches All Ends
- Nominal Thread Size [CQJX]
- 1.000 Inches All Ends
- Leg Length [AHSJ]
- 2.562 Inches Nominal 2Nd End
- Leg Length [AHSJ]
- 5.500 Inches Nominal 1St End
- Style Designator [STYL]

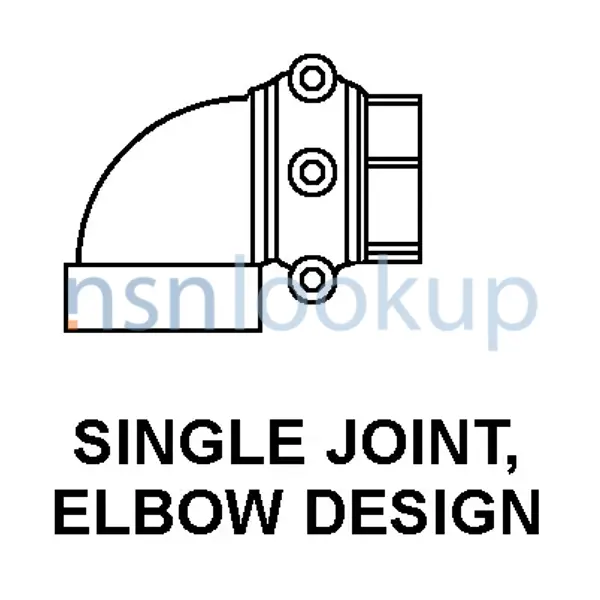

- Single Joint, Elbow Design
- Thread Series Designator [THSD]
- Npt All Ends
