4730-00-855-1942

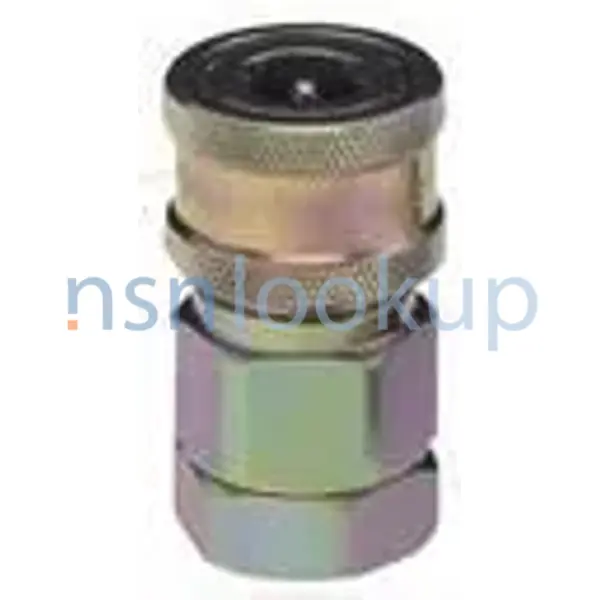

Quick Disconnect Coupling Half
4730008551942 008551942 BPHC24-24F 2352151-024
A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Quick Disconnect Coupling Half
May 2023
4
Marketplace 4730-00-855-1942
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-855-1942 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4730-00-855-1942 RQST NE Updated Every Day 4730-00-855-1942 RQST
Updated Every Day 4730-00-855-1942 RQST NE Related Documents 4730-00-855-1942 1+ Documents ( More...
Restrictions 4730-00-855-1942
4730-00-855-1942 is a Quick Disconnect Coupling Half that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-855-1942
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-855-1942
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
Approved Sources 4730-00-855-1942
- Part Number
- Manufacturer
- Status
- BPHC24-24F
- Manufacturer
- 78357 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 2352151-024
- 56232 - Lockheed Martin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-855-1942
- Characteristic
- Specifications
- FIIG
- Specifications
- A531T0
- Material [MATT]
- Steel Body
- Surface Treatment [SFTT]
- Cadmium Body
- Style Designator [STYL]
- Male Coupling Half
- Overall Length [ABHP]
- 2.343 Inches Nominal
- Connection Type [AWLS]
- Threaded Internal Pipe First Fluid End Connection
- Connection Type [AWLS]
- Internal Quick Disconnect All Ends
- Connection Style [AHNC]
- Plain All Ends
- Quick Disconnect Method [ADLN]
- Push-Pull All Ends
- Nominal Pipe Size Accommodated [AAAR]
- 2.000 Inches All Ends
- Thread Series Designator [THSD]
- Npt All Ends
- Nominal Thread Size [CQJX]
- 2.000 Inches All Ends
DLA Procurement Analysis 4730-00-855-1942
Management Data 4730-00-855-1942
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Dec 2005
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 4730-00-855-1942
Freight Information 4730-00-855-1942
4730-00-855-1942 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-855-1942 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-855-1942 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-855-1942 is not classified as a special type of cargo when transported by water. 4730-00-855-1942 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-855-1942
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-00-855-1942 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
