4730-00-833-9315

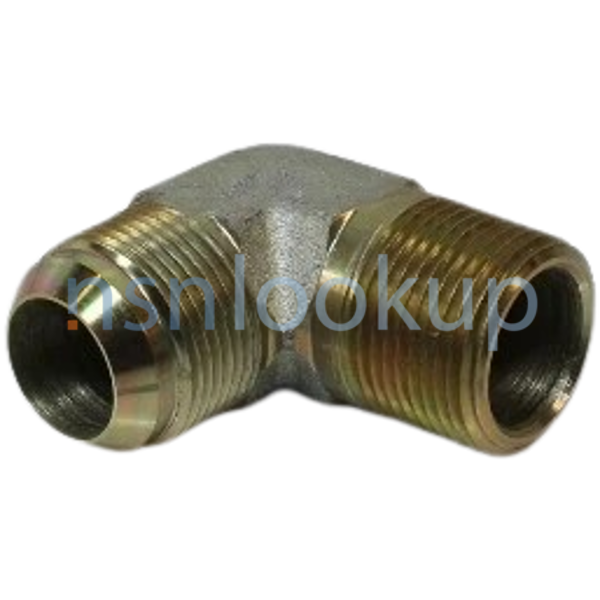

Pipe To Tube Elbow

4730008339315 008339315 MIL-DTL-18866 AC2000-16 3082929 2103-16-16 2024TA-16-16S 16CBTX-S 16-16 070202C J514 2024-16-16S 003661V022 218-488 10501465 9402869 16-16070202C 16CTX-S MS51504B16 MS51504B16-16 24137R1 301SJ461 16-16 070202CA 2501-16-16 576B2-1616 9S7269 83F10 9S7296

A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Pipe To Tube Elbow

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
August 2025

NATO Update Count
94

NATO Data Quality

4730-00-833-9315 ELBOW,PIPE TO TUBE 4730008339315 008339315 1/1 — 4730-00-833-9315 Photo 1/1

Marketplace 4730-00-833-9315

Need Help?
Request a Quotation from participating marketplace vendors

FinditParts

C5405X16 Weatherhead C5405X16 - Adapter Adapter Sae37 Steel 90 Degree 16 T X 16 Mp STK NE $10.55 Distributor Buy Now

Subscribe to View Vendor Details...

41-1160-1 ELBOW,PIPE TO TUBE 9 EA NS

Subscribe to View Vendor Details...

J5-14 ELBOW,PIPE TO TUBE 6 EA NS

J514. ELBOW,PIPE TO TUBE 3 EA NS

Subscribe to View Vendor Details...

41-1160-1 ELBOW,PIPE TO TUBE 1 EA NS

Subscribe to View Vendor Details...

C107A-1 ELBOW,PIPE TO TUBE RQST NS

41-1160-1 ELBOW,PIPE TO TUBE 2 EA NS

MS51504B16 ELBOW,PIPE TO TUBE 319 EA NS

MS51504A16 ELBOW,PIPE TO TUBE 701 EA NS

J514 ELBOW,PIPE TO TUBE 640 EA NS

MS51504-B16 ELBOW,PIPE TO TUBE 325 EA NS

Subscribe to View Vendor Details...

MS51504-B16 ELBOW,PIPE TO TUBE 9 EA NS

Subscribe to View Vendor Details...

MS51504A16 ELBOW,PIPE TO TUBE 7 EA NS

Subscribe to View Vendor Details...

218488 ELBOW,PIPE TO TUBE 5 EA NS

Subscribe to View Vendor Details...

MS51504A16 ELBOW,PIPE TO TUBE 3 EA NS

Subscribe to View Vendor Details...

J514 ELBOW,PIPE TO TUBE 416 EA NS

Subscribe to View Vendor Details...

MS51504A16 ELBOW,PIPE TO TUBE 1 EA NS

Subscribe to View Vendor Details...

4730-00-833-9315 ELBOW,PIPE TO TUBE 10 EA NS

G ELBOW,PIPE TO TUBE 20 EA NS

MS51504A16 RQST NE

Updated Every Day

2103-16-16 RQST NE

Updated Every Day

16CBTX-S RQST NE

Updated Every Day

4730-00-833-9315 RQST NE

Updated Every Day

4730-00-833-9315 RQST

Updated Every Day

4730-00-833-9315 RQST NE

Restrictions 4730-00-833-9315

4730-00-833-9315 is a Pipe To Tube Elbow that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 4730-00-833-9315

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4730-00-833-9315

US Army (A920)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A181
Supplementary Receivers:: AZCTCLBF; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGC)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXAX; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC40)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC01; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NICD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Nov 2006

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Jun 2015

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Aug 1993

Approved Sources 4730-00-833-9315

Part Number
Manufacturer
Status
MS51504A16: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-DTL-18866: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
AC2000-16: 98660 - Lube Devices Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
3082929: 62265 - Volvo Trucks North America, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
2103-16-16: 30780 - Parker-Hannifin Corporation (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
MS51504A16: 00624 - Eaton Aeroquip Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
2024TA-16-16S: 01276 - Danfoss Power Solutions Ii, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
16CBTX-S: 30780 - Parker-Hannifin Corporation (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
16-16 070202C: 0U583 - Sae International (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
J514: 0U583 - Sae International (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
2024-16-16S: 01276 - Danfoss Power Solutions Ii, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
003661V022: 59556 - Kovatch Corp. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
218-488: 10988 - Cnh Industrial America Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
MS51504A16: 98660 - Lube Devices Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
9402869: 8G877 - Geneva, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
10501465: 56161 - General Dynamics Land Systems (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC A
MS51504A16: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MS51504A16: 30327 - Imperial (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
9402869: 30379 - Euclid Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
4730008339315: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
7695GX: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS51504A16: 98441 - Parker Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
2103-16-16: 98441 - Parker Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
3A16-16A16: 85757 - Eaton Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
107A-13: 03533 - Crane Carrier Company, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
MS51504A16: 30780 - Parker-Hannifin Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
24137R1: 55820 - Rtx Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
2024-16-16: 55509 - Cooper Cameron Corp Ajax-Superior (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
16CBTX-S: 98441 - Parker Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
C5405X16: 79470 - Dana Corp Weatherhead Div (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
W5405X16: 79470 - Dana Corp Weatherhead Div (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
J514: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
T6068: 73782 - Towmotor Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
456118: 65282 - White Motor Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
9410981: 29510 - Komatsu American Intl Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
16-16 070202C: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5822-16: 79470 - Dana Corp Weatherhead Div (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
4111601: 80909 - Fuller C M Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS51504A16: 93188 - L And L Mfg Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS51504: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
4730PL1451113: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
9402869: 31007 - Navistar International Corporation (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 5
16 CTX-S: 98441 - Parker Hannifin Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
16-16070202C: 81348 - Federal Specifications Promulgated (Active); Advisory Reference; RNCC C RNVC 1 DAC E
16CTX-S: 93061 - Parker-Hannifin Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS51504B16: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS51504B16-16: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC E
24137R1: 66195 - Solar Turbines Incorporated (Active); Advisory Reference; RNCC C RNVC 1 DAC E
301SJ461: 12603 - Clark Equipment Co (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5
16-16 070202CA: 81343 - Society Of Automotive Engineers Inc (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5
7695GX: 75Q65 - Oshkosh Defense Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
2024-16-16: 01276 - Danfoss Power Solutions Ii, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
2501-16-16: 5E240 - Brennan Industries (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
576B2-1616: 00365 - Tld Ace Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
9402869: 78640 - Mitsubishi Caterpillar Forklift (Active); Advisory Reference; RNCC C RNVC 1 DAC E
9S7269: 11083 - Caterpillar Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
83F10: 89749 - Clark Material Handling Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
9S7296: 11083 - Caterpillar Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC E
C107A-1: 03533 - Crane Carrier Company, Llc (Active); Informational Drawing; RNCC D RNVC 9 DAC A
16CTXS: 45681 - Parker-Hannifin Corporation (Active); Transferred; RNCC E RNVC 8 DAC 5
16 CTX-S: 30780 - Parker-Hannifin Corporation (Active); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 4730-00-833-9315

Characteristic
Specifications
FIIG: A080B0
End Item Identification [AGAV]: 2420-00-088-9384 And 2420-01-059-0090;Family Of Hemtt Vehicles (Heavy Expanded Mobility Tactical Trucks)
Connection Style [AHNC]: Flared (Tube) 1St End
Connection Style [AHNC]: Plain (Pipe) 2Nd End
Connection Type [AWLS]: Threaded External Pipe 2Nd End
Connection Type [AWLS]: Threaded External Tube 1St End
Criticality Code Justification [CRTL]: Feat
Furnished Items And Quantity [TMQY]: 1 Tube Coupling Nut W/Sleeve
Flow Angle [CRFY]: 90.0 Degrees
Material [MATT]: Steel Comp 12L14 Overall
Maximum Operating Pressure [CQGM]: 3000.0 Pounds Per Square Inch Single Response
Maximum Operating Temp [AEHZ]: 400.0 Deg Fahrenheit Single Response
Media For Which Designed [MEDA]: Air 2Nd Response
Media For Which Designed [MEDA]: Hydraulic Fluid 1St Response
Nominal Outside Diameter Tube Accommodated [CWFD]: 1.000 Inches 1St End
Nominal Thread Size [CQJX]: 1.000 Inches 2Nd End
Nominal Thread Size [CQJX]: 1.312 Inches 1St End
Nondefinitive Spec/Std Data [ZZZT]: 4A Figure
Leg Length [AHSJ]: 1.812 Inches Nominal 1St End
Leg Length [AHSJ]: 1.969 Inches Nominal 2Nd End
Material Document And Classification [MDCL]: 66 Fed Std Single Material Response Overall
Seat Angle [CQRB]: 37.0 Degrees 1St End
Special Features [FEAT]: Weapon System Essential
Specification/Standard Data [ZZZK]: 81343-J514 Professional/Industrial Association Standard And 96906-Ms51504 Government Standard
Surface Treatment Document And Classification [STDC]: J514 Assn Std Single Treatment Response Overall And Qq-P-416, Ty 2, Cl 3 Mil Spec Single Treatment Response Overall
Thread Class [AAJD]: 2A 1St End
Thread Series Designator [THSD]: Nptf 2Nd End
Thread Series Designator [THSD]: Un 1St End
Thread Quantity Per Inch [CMLP]: 12 1St End

Weapon Systems (WSDC) 4730-00-833-9315

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 4730-00-833-9315

Last Stock Position:: 80 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 4730-00-833-9315

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 4730-00-833-9315

Freight Information 4730-00-833-9315

4730-00-833-9315 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-833-9315 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-833-9315 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-833-9315 is not classified as a special type of cargo when transported by water. 4730-00-833-9315 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 4730-00-833-9315

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 4730-00-833-9315 Most Recent 55 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M323V2573: 15 Jun 2023; Subscribe; 140; Subscribe; Subscribe
SPE7M322P3434: 08 Aug 2022; Subscribe; 244; Subscribe; Subscribe
SPE7M122V4182: 14 Feb 2022; Subscribe; 139; Subscribe; Subscribe
SPE7M318P4348: 26 May 2018; Subscribe; 582; Subscribe; Subscribe
SPE7M318V2110: 02 Mar 2018; Subscribe; 178; Subscribe; Subscribe
SPE7M317P4466: 16 Aug 2017; Subscribe; 370; Subscribe; Subscribe
SPE7MC17V3659: 07 Feb 2017; Subscribe; 279; Subscribe; Subscribe
SPM7LX10D9W06021P: 26 Apr 2016; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W06001K: 16 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W069254: 20 Dec 2015; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W069020: 24 Nov 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068981: 19 Nov 2015; Subscribe; 32; Subscribe; Subscribe
SPM7LX10D9W068882: 07 Nov 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068729: 22 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068730: 22 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068723: 22 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068477: 18 Sep 2015; Subscribe; 24; Subscribe; Subscribe
SPM7LX10D9W068057: 04 Aug 2015; Subscribe; 9; Subscribe; Subscribe
SPM7LX10D9W067993: 28 Jul 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067799: 08 Jul 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067789: 06 Jul 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067788: 05 Jul 2015; Subscribe; 3; Subscribe; Subscribe
SPM7LX10D9W067662: 16 Jun 2015; Subscribe; 32; Subscribe; Subscribe
SPM7LX10D9W067477: 29 May 2015; Subscribe; 7; Subscribe; Subscribe
SPM7LX10D9W067476: 29 May 2015; Subscribe; 50; Subscribe; Subscribe
SPM7LX10D9W067411: 20 May 2015; Subscribe; 356; Subscribe; Subscribe
SPM7LX10D9W067241: 29 Apr 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067195: 23 Apr 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067183: 22 Apr 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067163: 20 Apr 2015; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W067039: 04 Apr 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066911: 20 Mar 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066759: 04 Mar 2015; Subscribe; 50; Subscribe; Subscribe
SPM7LX10D9W066690: 25 Feb 2015; Subscribe; 10; Subscribe; Subscribe
SPM7LX10D9W066611: 17 Feb 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066595: 12 Feb 2015; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W066594: 12 Feb 2015; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W066495: 04 Feb 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066345: 16 Jan 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066151: 17 Dec 2014; Subscribe; 10; Subscribe; Subscribe
SPM7LX10D9W066091: 10 Dec 2014; Subscribe; 30; Subscribe; Subscribe
SPM7LX10D9W065805: 27 Oct 2014; Subscribe; 30; Subscribe; Subscribe
SPM7LX10D9W065566: 22 Sep 2014; Subscribe; 28; Subscribe; Subscribe
SPM7LX10D9W065505: 15 Sep 2014; Subscribe; 14; Subscribe; Subscribe
SPM7LX10D9W065486: 11 Sep 2014; Subscribe; 4; Subscribe; Subscribe
SPM7LX10D9W065329: 22 Aug 2014; Subscribe; 37; Subscribe; Subscribe
SPM7LX10D9W065096: 28 Jul 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064857: 27 May 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064811: 19 May 2014; Subscribe; 54; Subscribe; Subscribe
SPM7LX10D9W064749: 09 May 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064750: 09 May 2014; Subscribe; 8; Subscribe; Subscribe
SPM7LX10D9W063069: 21 Jun 2013; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W063039: 19 Jun 2013; Subscribe; 17; Subscribe; Subscribe
SPM7LX10D9W063040: 19 Jun 2013; Subscribe; 17; Subscribe; Subscribe
SPM7LX10D9W062878: 16 May 2013; Subscribe; 1; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 4730-00-833-9315 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 4730-00-833-9315

Related Documents 4730-00-833-9315 5+ Documents (More...)

Restrictions 4730-00-833-9315

Import and Export 4730-00-833-9315

End Users 4730-00-833-9315

Approved Sources 4730-00-833-9315

Datasheet 4730-00-833-9315

Weapon Systems (WSDC) 4730-00-833-9315

DLA Procurement Analysis 4730-00-833-9315

Management Data 4730-00-833-9315

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 4730-00-833-9315

Freight Information 4730-00-833-9315

Packaging Data 4730-00-833-9315

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 4730-00-833-9315 Most Recent 55 Records

Contracting Technical Data File (CTDF) 4730-00-833-9315 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
