4730-00-814-4581

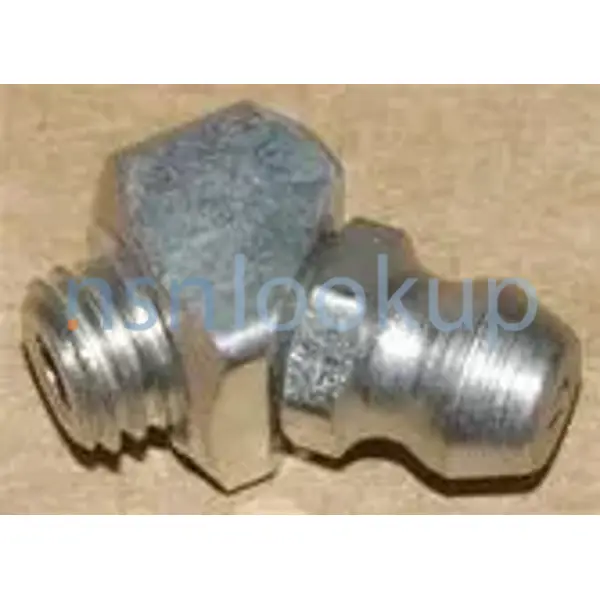

Lubrication Fitting
4730008144581 008144581 1851 9151329
A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items. View more Lubrication Fitting
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
35
35
NATO Data Quality
Marketplace 4730-00-814-4581
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-814-4581 3+ Documents (More...)
1851 9151329 A specifically designed item pressed or threaded into a lubrication passage, for the purpose
Quotation Subscribe to View Vendor Details... 1851 FITTING,LUBRICATION 47 EA NS Request Quotation 9151329
.. 1851 FITTING,LUBRICATION 2 EA NS Request Quotation Subscribe to View Vendor Details... 4730-00-814
Quotation Subscribe to View Vendor Details... 1851 FITTING,LUBRICATION 47 EA NS Request Quotation 9151329
.. 1851 FITTING,LUBRICATION 2 EA NS Request Quotation Subscribe to View Vendor Details... 4730-00-814
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 1851
4 EA NS Request Quotation Subscribe to View Vendor Details... 1851 FITTING,LUBRICATION 7 EA NS Request
Quotation Subscribe to View Vendor Details... 1851 FITTING,LUBRICATION 47 EA NS Request Quotation 9151329
4 EA NS Request Quotation Subscribe to View Vendor Details... 1851 FITTING,LUBRICATION 7 EA NS Request
Quotation Subscribe to View Vendor Details... 1851 FITTING,LUBRICATION 47 EA NS Request Quotation 9151329
Restrictions 4730-00-814-4581
4730-00-814-4581 is a Lubrication Fitting that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-814-4581
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-814-4581
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- BD
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GT
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Feb 2004
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- France (ZF01)
- Effective Date:
- 1 May 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-814-4581
- Part Number
- Manufacturer
- Status
- 1851
- Manufacturer
- 57733 - Stewart-Warner Corporation (Active)
- Primary Buy
- Primary Buy
- 1851
- 0FKM1 - Alemite, Llc (Active)
- Primary Buy
- Primary Buy
- 9151329
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 1851
- 95879 - Stewart-Warner Alemite Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-814-4581
- Characteristic
- Specifications
- FIIG
- Specifications
- A14800
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Zinc Overall
- Style Designator [STYL]
- Threaded
- Shank Length [AATR]
- 0.281 Inches Nominal
- Height [HGTH]
- 0.406 Inches Nominal
- Screw Thread Series Designator [AJYP]
- Unf
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Class [AAJD]
- 2A
- Width Across Flats [ASDB]
- 0.312 Inches Nominal
- Special Features [FEAT]
- Throat Located Ball Check Valve
Weapon Systems (WSDC) 4730-00-814-4581
DLA Procurement Analysis 4730-00-814-4581
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-814-4581
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-00-814-4581
Freight Information 4730-00-814-4581
4730-00-814-4581 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-814-4581 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-814-4581 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-814-4581 is not classified as a special type of cargo when transported by water. 4730-00-814-4581 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-814-4581
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Procurement History 4730-00-814-4581 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M022P2797
- 15 Jul 2022
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7M319V1158
- 21 Nov 2018
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE7MC17V8284
- 09 May 2017
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPE7M016V1861
- 12 Nov 2015
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7M015V0453
- 08 Oct 2014
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPE7M314M1556
- 14 Jan 2014
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4730-00-814-4581 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
