4730-00-808-8294

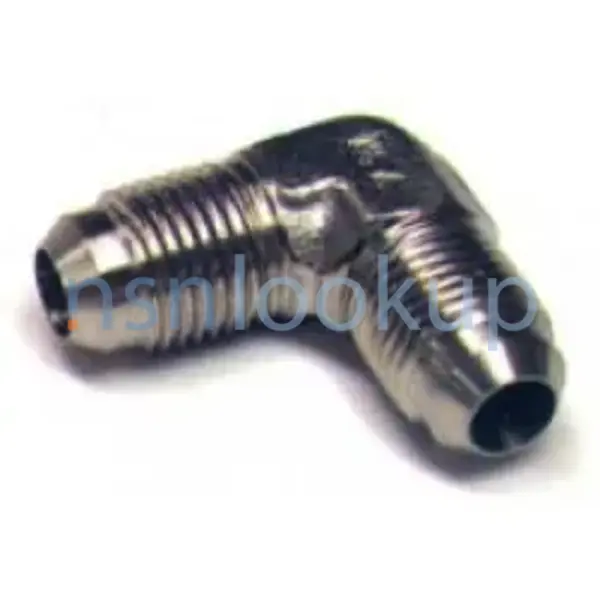

Tube To Boss Elbow
4730008088294 008088294 SAE-AS4841 AN821-3C MS24401J3 AS1034J0303 AS1034 AS4841 AN821-3J 4730PL0673300
A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
November 2023
33
Marketplace 4730-00-808-8294
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-808-8294 5+ Documents (More...)
MS24401J3 ELBOW,TUBE TO BOSS 341 EA NS Request Quotation AN821-3J ELBOW,TUBE TO BOSS 1685 EA NS Request
AS4841 ELBOW,TUBE TO BOSS 2 EA NS Request Quotation Updated Every Day 4730-00-808-8294 RQST NE Updated
AS1034-1616 AS1034 AS4841 MS24401-16 A fitting that forms an angle of less that 180 degrees (3.141 radians
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-808-8294 Tube To Boss Elbow 4730008088294 008088294
AS1034 AS4841 AS1034J16 AN821-16J MS24401J16 AN821-16C A fitting that forms an angle of less that 180
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-808-8294 Tube To Boss Elbow 4730008088294 008088294
Restrictions 4730-00-808-8294
4730-00-808-8294 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-808-8294
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-808-8294
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- KE
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 4730-00-808-8294
- Part Number
- Manufacturer
- Status
- SAE-AS4841
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS1034J0303
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- MS24401J3
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034J0303
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-3J
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730PL0673300
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- AN821-3C
- 88044 - Aeronautical Standards Group (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-808-8294
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material [MATT]
- Steel Comp 304 Overall
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.188 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.375 Inches All Ends
- Leg Length [AHSJ]
- 0.828 Inches Nominal All Ends
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Thread Class [AAJD]
- 3A All Ends
- Thread Series Designator [THSD]
- Unf All Ends
