4730-00-803-6554

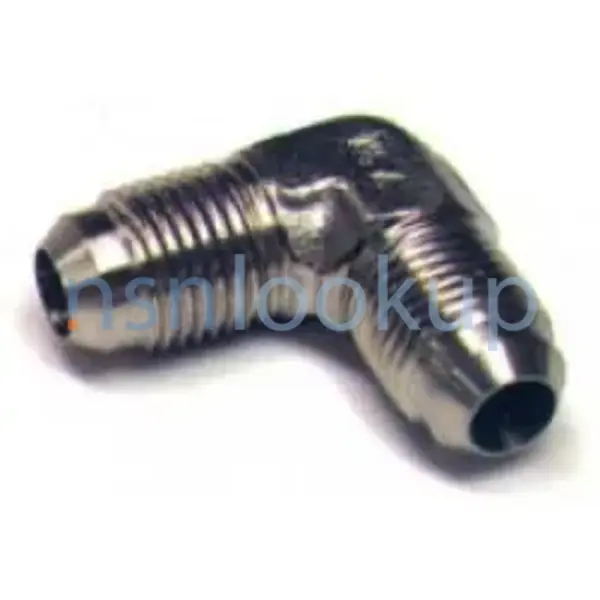

Tube Elbow
4730008036554 008036554 2039-20-20C MS24401J20 AN821-20C
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Tube Elbow
November 2023
7
Marketplace 4730-00-803-6554
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-803-6554 4+ Documents (More...)
MS24401J20 ELBOW,TUBE RQST NS Request Quotation Subscribe to View Vendor Details... 2039-20-20C ELBOW
,TUBE 24 EA NS Request Quotation AN821-20C ELBOW,TUBE 42 EA NS Request Quotation MS24401J20 ELBOW,TUBE
Restrictions 4730-00-803-6554
4730-00-803-6554 is a Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-803-6554
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-803-6554
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4730-00-803-6554
- Part Number
- Manufacturer
- Status
- MS24401J20
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- AN821-20C
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2039-20-20C
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-803-6554
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material [MATT]
- Steel Comp 303 Overall Or Steel Comp 302 Overall Or Steel Comp 304 Overall Or Steel Comp 316 Overall
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 1.250 Inches All Ends
- Nominal Thread Size [CQJX]
- 1.625 Inches All Ends
- Leg Length [AHSJ]
- 2.062 Inches Nominal All Ends
- Material Document And Classification [MDCL]
- Fed Std @66 Fed Std Single Material Response Overall And Sae 30302 Assn Std Single Material Response Overall Or Sae 30303 Assn Std Single Material Response Overall Or Sae 30304 Assn Std Single Material Response Overall Or Sae 30316 Assn Std Single Material Response Overall
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A All Ends
- Thread Series Designator [THSD]
- Un All Ends
- Thread Quantity Per Inch [CMLP]
- 12 All Ends
Weapon Systems (WSDC) 4730-00-803-6554
DLA Procurement Analysis 4730-00-803-6554
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-803-6554
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 4730-00-803-6554
Freight Information 4730-00-803-6554
4730-00-803-6554 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-803-6554 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-803-6554 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-803-6554 is not classified as a special type of cargo when transported by water. 4730-00-803-6554 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-803-6554
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 4730-00-803-6554 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
