4730-00-769-3968
Valve Service Box
4730007693968 007693968 H10357-SIEEB F2450 F2450C 598STYLEC
A sectional metal pipe whose lower or base section is enlarged to cover an underground valve. The primary purpose is to provide an open shaft which will allow the insertion of the service box valve key. View more Valve Service Box
May 2023
9
Marketplace 4730-00-769-3968
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-769-3968 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4730-00-769-3968 RQST NE Updated Every Day 4730-00-769-3968 RQST
Updated Every Day 4730-00-769-3968 RQST NE Related Documents 4730-00-769-3968 5+ Documents ( More...
Service Box 4730145133222145133222 Day 4730-14-513-3222 RQST NE Related Documents https/ 860-1929 4730-00-769-3968
860-1930 4730-26-301-2027 4730-21-849-1893 4730-22-606-7575 4730-22-604-8545 4730-21-860-1929 4730-00-769-3968
860-1930 4730-26-301-2027 4730-21-849-1893 4730-22-606-7575 4730-22-604-8545 4730-21-860-1929 4730-00-769-3968
4730218492149218492149 4730-21-849-1894 4730-01-230-4034 4730-21-849-2149 https 604-8545 4730-21-860-1929 4730-00-769-3968
860-1930 4730-26-301-2027 4730-21-849-1893 4730-22-606-7575 4730-22-604-8545 4730-21-860-1929 4730-00-769-3968
860-1930 4730-26-301-2027 4730-21-849-1893 4730-22-606-7575 4730-22-604-8545 4730-21-860-1929 4730-00-769-3968
Restrictions 4730-00-769-3968
4730-00-769-3968 is a Valve Service Box that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4730-00-769-3968
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
Approved Sources 4730-00-769-3968
- Part Number
- Manufacturer
- Status
- F2450
- Manufacturer
- 13263 - Clow Corp (Obsolete)
- Original Design
- Original Design
- H10357-SIEEB
- 41950 - Mueller Co (Active)
- Secondary Buy
- Secondary Buy
- F2450C
- 13263 - Clow Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 598STYLEC
- 87741 - United States Pipe And Foundry Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-769-3968
- Characteristic
- Specifications
- FIIG
- Specifications
- T359-K
- Additional Base For Lower Section [CFPF]
- Not Included

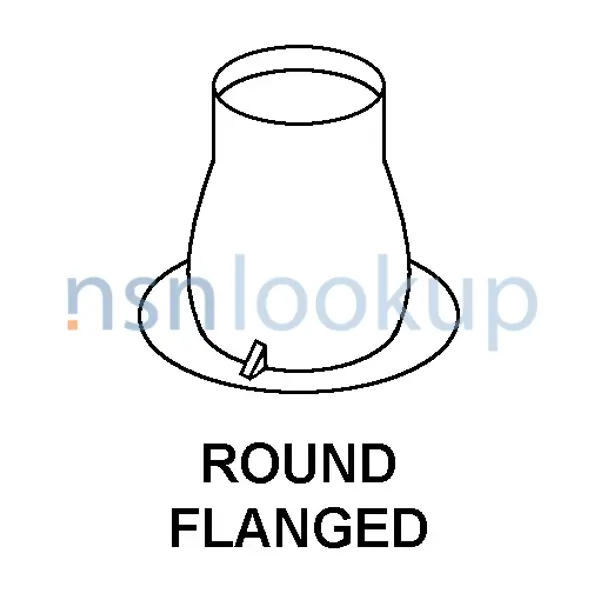

- Base Style [CRPS]
- Round Flanged
- Box Type [CJLX]
- Screw
- Extension Section [CFNY]
- Not Included
- Material [MATT]
- Iron
- Lid Type [CFPH]
- Plug
- Lid [CFPG]
- Included
- Markings [BDBN]
- Water
- Rod [CFPK]
- Not Included
- Section Quantity [AAPN]
- 3
- Shaft Diameter [ABWV]
- 5.250 Inches Nominal
- Overall Length [ABHP]
- 42.000 Inches Minimum And 50.000 Inches Maximum
- Upper Section Head Shape [CFNW]
- Round
- Upper Section Head Thread Provision [CFNX]
- Unthreaded
DLA Procurement Analysis 4730-00-769-3968
Management Data 4730-00-769-3968
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Dec 2005
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Fund:
- LP
- Items initially authorized for local purchase
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-769-3968
Freight Information 4730-00-769-3968
4730-00-769-3968 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-769-3968 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-769-3968 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-769-3968 is not classified as a special type of cargo when transported by water. 4730-00-769-3968 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-769-3968
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- Cushion, Anchor, Block or Brace as Required
- --
- Special requirement – See specific instructions or drawings provided
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4730-00-769-3968 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
