4730-00-737-3778
Fluid Passage Bolt
4730007373778 007373778 7373778 1268322
A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE. View more Fluid Passage Bolt
May 2023
13
Marketplace 4730-00-737-3778
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-737-3778 1+ Documents (More...)
(Identification) 1/4 NSN 4730-00-737-3778 (Identification) 2/4 NSN 4730-00-737-3778 (Identification
) 3/4 NSN 4730-00-737-3778 (Identification) 4/4 - - - - 1.
Restrictions 4730-00-737-3778
4730-00-737-3778 is a Fluid Passage Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-737-3778
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-737-3778
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- NICD
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-737-3778
- Part Number
- Manufacturer
- Status
- 7373778
- Manufacturer
- 12204 - Chrysler Realty Company Llc (Active)
- Original Design
- Original Design
- 7373778
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
- 1268322
- 12204 - Chrysler Realty Company Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-737-3778
- Characteristic
- Specifications
- FIIG
- Specifications

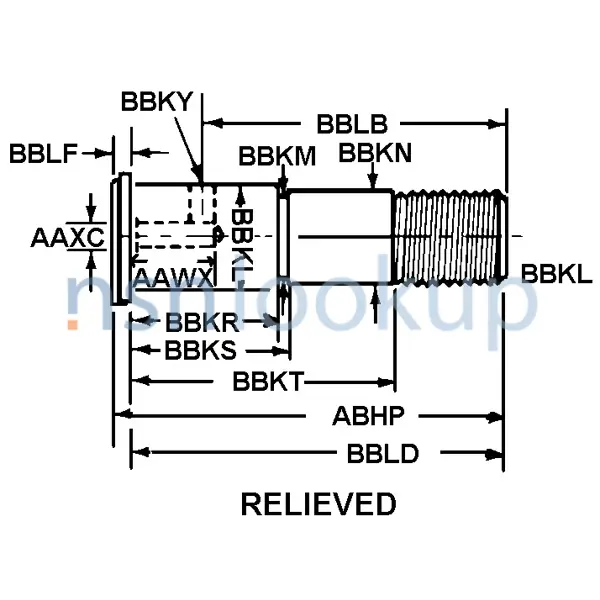

- A121A0
- Material [MATT]
- Steel Comp 1020
- Body Style [AAQL]
- Relieved
- Concentric Hole Depth [AAWX]
- 1.625 Inches Nominal
- Concentric Hole Diameter [AAXC]
- 0.218 Inches Nominal
- Overall Length [ABHP]
- 4.750 Inches Nominal
- First Diameter From Wrenching Feature [BBKL]
- 0.734 Inches Nominal
- Second Diameter From Wrenching Feature [BBKM]
- 0.747 Inches Nominal
- Third Diameter From Wrenching Feature [BBKN]
- 0.735 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of First Diameter [BBKR]
- 0.094 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Second Diameter [BBKS]
- 1.250 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of Third Diameter [BBKT]
- 3.500 Inches Nominal
- First Radial Fluid Hole Diameter [BBKY]
- 0.218 Inches Nominal
- Distance From First Radial Hole Center To End Of Bolt [BBLB]
- 3.250 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To Bolt End [BBLD]
- 4.500 Inches Nominal
- Wrenching Feature Height [BBLF]
- 0.250 Inches Nominal
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Style Designator [ACKN]
- Plain
- First End Seat Angle [CQPR]
- 12.0 Degrees Nominal
- First End Thread Series Designator [CQMM]
- Unf
- First End Nominal Thread Size [CQYM]
- 0.750 Inches
- First End Thread Quantity Per Inch [CQKK]
- 16
- First End Thread Class [ACLK]
- 2A
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Length [ATKZ]
- 1.000 Inches Nominal
- Second End Connection Type [ACLS]
- Threaded Internal Tube
- Second End Style Designator [ACLT]
- High Pressure Flare
- Second End Seat Angle [CRCN]
- 12.0 Degrees Nominal
- Second End Thread Series Designator [CRPF]
- Unf
- Second End Nominal Thread Size [CRNB]
- 0.250 Inches
- Second End Thread Quantity Per Inch [CRMX]
- 28
- Second End Thread Class [ACMR]
- 2B
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Thread Length [ATLF]
- 0.250 Inches Nominal
- Wrenching Feature Style [BBDF]
- Dee
- Head Diameter [AASL]
- 1.125 Inches Nominal
- Distance From Centerline To Flat [AASY]
- 0.442 Inches Nominal
- Cotter Pin Hole Diameter [ADDV]
- 0.136 Inches Nominal
- Distance From Bolt End To Hole Center [BBKK]
- 0.187 Inches Nominal
- Hardness Rating [CQFM]
- 58.0 Rockwell C Maximum
